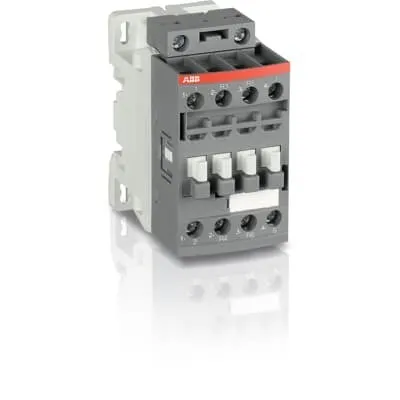

ABB AF16ZB-22-00-22 Block Contactor - 690V IEC/UL
Part Number: 1SBL176561R2200
Quick Summary
ABB AF16ZB-22-00-22 is a 4-pole block contactor designed to control 3-phase motors up to 7.5 kW at 400–690 V AC. In networks with fluctuating control voltages, traditional relays can chatter or fail to start; AF technology tolerates a wide control voltage range of 48–130 V AC/60 Hz and DC, delivering reliable operation and reduced panel energy waste. The device carries IEC/EN 60947-4-1 and IEC/EN 60947-1 standards, plus UL 60335-2-40 and CE (UKCA where applicable), ensuring safe installation across global markets. Its compact 4P block design, screw terminals, built-in surge protection, and compatibility with auxiliary contact blocks support scalable, hard-wearing control architectures for modern industrial panels.
Product Information
Extended Description
1SBL176561R2200 ABB: The AF16ZB-22-00-22 is a 4 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Motor control and protection for Rolling stock application_PDF
Instructions and Manuals
Installation instructions AF(C)09...38(Z)(B) Contactors, NF(C)(Z)(B)22...80E Contactor relays and CA4, CAL4, CAT4, CC4, LDC4 Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Depth / Length
77 mm
Product Net Height
86 mm
Product Net Weight
0.31 kg
Number of Main Contacts NO
2
Number of Main Contacts NC
2
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
4P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 690 V
Rated Frequency (f)
Control Circuit 50 / 60 Hz | Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 30 A | (690 V) 60 °C 30 A | (690 V) 70 °C 26 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 18 A | (440 V) 60 °C 18 A | (500 V) 60 °C 15 A | (690 V) 60 °C 10.5 A | (380 / 400 V) 60 °C 18 A | (220 / 230 / 240 V) 60 °C 18 A
Rated Operational Power AC-3 (Pe)
(400 V) 7.5 kW | (415 V) 9 kW | (440 V) 9 kW | (500 V) 9 kW | (690 V) 9 kW | (380 / 400 V) 7.5 kW | (220 / 230 / 240 V) 4 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-1) 600 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 48 ... 130 V | 60 Hz 48 ... 130 V | DC Operation 48 ... 130 V
Power Loss
at Rated Operating Conditions AC-1 per Pole 1.2 W | at Rated Operating Conditions AC-3 per Pole 0.35 W
Operate Time
Between Coil De-energization and NC Contact Closing 13 ... 98 ms | Between Coil De-energization and NO Contact Opening 11 ... 95 ms | Between Coil Energization and NC Contact Opening 38 ... 90 ms | Between Coil Energization and NO Contact Closing 40 ... 95 ms
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M4 screws placed diagonally
Connecting Capacity Main Circuit
Flexible with Ferrule 1/2x 0.75 ... 6 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 4 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Rigid Solid 1/2x 1 ... 4 mm² | Rigid Stranded 1/2x 1 ... 6 mm²
Connecting Capacity Auxiliary Circuit
Rigid Solid 1/2x 1 ... 2.5 mm² | Rigid Stranded 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Rigid Solid 1/2x 1 ... 2.5 mm² | Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Control Circuit 10 mm | Main Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque
Control Circuit 1.2 N·m | Main Circuit 1.5 N·m
Terminal Type
Screw Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 30 A
Connecting Capacity Main Circuit UL/CSA
Rigid Solid 1/2x 16-10 AWG | Rigid Stranded 1/2x 16-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG | Rigid Stranded 1/2x 18-14 AWG
Connecting Capacity Control Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG | Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA
Control Circuit 11 in·lb | Main Circuit 13 in·lb
Ambient Air Temperature
Close to Contactor for Storage -60 ... +80 °C | Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible
Without Derating 3000 m
Shock and Vibration Withstand acc. to IEC 61373
Category 1, Class B
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
94627df1-d5ed-4b38-871b-d7517f944fd3 China (CN)
Simplified SCIP
39676cc3-9d91-4d0e-8fd4-928ae3dd272d Poland (PL) | 97d85ddc-15a9-424f-9144-1889894ef0d9 Greece (GR) | 73622d3b-9369-4804-9785-a63fa2285a1d Estonia (EE) | 312349ff-4c54-4d2a-a622-0f34594d1c66 Netherlands (NL) | fea15973-cfdf-4b8a-bb8c-f2c8e796a56a Germany (DE) | dc8b90f7-b02d-4194-8763-60141704a18b Denmark (DK) | 339e848e-a2aa-45f3-ab7b-588f8a0d0428 Germany (DE) | 0be840e4-45f8-4a6c-94ad-583a7e383988 Hungary (HU) | 3bf7f89e-1300-4d50-860d-615a650b5e20 Belgium (BE) | b9df72be-415e-44cb-b98b-410856ea508c Croatia (HR) | ccb6b3e4-8f71-4863-b3b1-1f19ebe34abd Sweden (SE) | b52790e3-dc18-48ab-aab5-fdb7bd4455b1 France (FR) | b57f6596-f423-4b8c-92da-4f170f1db483 Germany (DE) | d95a67b2-795f-44cd-875b-540dd76b3266 Belgium (BE) | edbaf50f-9649-4a81-8e1c-e70eccde9b32 Hungary (HU) | ff27c405-aa0f-418e-9b07-843b0e45bc58 Spain (ES) | 415a7273-ca2e-449b-bb7f-0f700817c28e Sweden (SE) | 19bc2d67-b8af-4493-be3c-08dd0803fdf6 Bulgaria (BG) | d846d110-eaa8-4f89-aa2d-233ebbc93590 Portugal (PT) | be55b2ef-6c22-47f5-9dd9-34a3878b3ce4 Germany (DE) | 6e7aab38-c52e-4052-a06f-76f899b0862e Poland (PL) | fc80d68a-17ce-463f-b3fd-0303d69ea679 France (FR) | e33660ef-c228-4173-a34b-c7270d9a8a8e Czech Republic (CZ) | 5b827201-a3e0-46e7-bb40-619051950973 Poland (PL) | ec223b70-c8e2-4ba8-8cb4-c3675986c6d6 Finland (FI) | 5cdf980f-0cf6-4332-8a86-a3e664f270e4 Norway (NO) | ae32d5b4-ca65-4e1b-adbe-bd729617d228 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays
Environmental Product Declaration - EPD
Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR) | Environmental Product Declaration - AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relays
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 86 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 28 %
A2L Certificate – UL
UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers | UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers
CB Certificate
CB Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors
CCC Certificate
CCC Certificate AF09, AF12, AF16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors
CQC Certificate
CQC Certificate AF(C)09, AF(C)12, AF(C)16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AF*09, AF*12, AF*16, Made in France
Declaration of Conformity - CE
EU Declaration of Conformity AF09 ... AF38(Z)B..(K), AF40B ... AF96B 3 and 4-pole contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AF09 ... AF38(Z)B..(K), AF40B ... AF96B 3 and 4-pole contactors
GOST Certificate
GOST_POCCFR.ME77.B07175.pdf
KC Certificate
KC Certificate AF16 4pole contactors
UL Certificate
UL-US Certificate of Compliance AF(C)09..(K) ... AF(C)38 4-pole contactors with screw and push-in spring terminals | UL-CA Certificate of Compliance AF(C)09..(K) ... AF(C)38 4-pole contactors with screw and push-in spring terminals
UL Listing Card
UL_E319322
Package Level 1 Units
box 1 piece
Package Level 1 Width
87 mm
Package Level 1 Depth / Length
79 mm
Package Level 1 Height
47 mm
Package Level 1 Gross Weight
0.31 kg
Package Level 1 EAN
3471523124929
Package Level 2 Units
box 27 piece
Package Level 2 Width
250 mm
Package Level 2 Depth / Length
300 mm
Package Level 2 Height
315 mm
Package Level 2 Gross Weight
16.74 kg
Package Level 3 Units
1296 piece
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature: AF technology with a wide control voltage range. Business Impact: Reduces nuisance tripping and energy waste in networks with voltage fluctuations. Application: Ideal for control circuits in facilities with unstable power supplies and renewable integration. Feature: Built-in surge protection. Business Impact: Extends contact life and minimizes downtime from voltage transients. Application: High-crease motor drives and rolling stock protection where spikes are common. Feature: 4P configuration with 2 NO/2 NC main contacts. Business Impact: Enables robust forward/backward motor control with clear switching behavior. Application: Medium-power motors up to 7.5 kW in general industrial lines. Feature: Screw terminals and DIN rail mounting compatibility. Business Impact: Eases installation, reduces wiring errors, and frees panel space. Application: Panel builders seeking compact, code-compliant installations. Feature: Expandable with auxiliary contact blocks. Business Impact: Delivers scalable control logic without replacing hardware. Application: Systems requiring expansion for interlocks, signaling, or status feedback. Feature: Wide compliance footprint (IEC/UL/CSA/CE). Business Impact: Simplifies multi-region procurement and regulatory clearance. Application: Global deployments across manufacturing and rolling stock.
Get a Quick Quote for a ABB 1SBL176561R2200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL176561R2200?
Enquire Now
FAQs
The contactor offers DIN rail mounting on TH35-15 or TH35-7.5 profiles, and it can be screw-mounted using 2 x M4 screws diagonally. This provides flexible installation in compact panels and reduces wiring complexity.
AC-1 rating is 30 A at 690 V (40 °C), 30 A at 690 V (60 °C), and 26 A at 690 V (70 °C). AC-3 ratings include 18 A at 440–690 V (60 °C), 10.5 A at 690 V (60 °C), with 18 A at 380/400 V (60 °C) and 18 A at 220/230/240 V (60 °C). Power at AC-3 reaches up to 9 kW depending on voltage.
Yes. The AF16ZB-22-00-22 is designed for motor control and protection with rolling stock applications in mind, while also meeting general industrial standards. Its AF technology supports reliable operation in variable networks, and it is compatible with add-on auxiliary blocks for expanded control logic.
It complies with IEC/EN 60947-1 and 60947-4-1, UL 60335-2-40, UL 60947-1, CSA standards, and carries CE and UKCA markings where applicable, ensuring global acceptance and regulatory compliance.
ROI benefits arise from reduced panel energy consumption due to the wide control voltage tolerance, lower maintenance thanks to built-in surge protection, and scalable control via add-on contact blocks. The compact footprint also lowers enclosure costs and simplifies future upgrades.
