ABB Block Contactor 1SBL296060R2200 - 690 V, 60947-4-1
Part Number: 1SBL296060R2200
Quick Summary
ABB Block Contactor 1SBL296060R2200 is a high-capacity switch used for motor control in industrial automation and rolling-stock applications. In fluctuating networks, maintaining reliable operation without nuisance tripping can be challenging, and this device addresses that by delivering stable control across wide voltage variations. It complies with key certifications such as IEC/EN 60947-4-1 and UL 60947-4-1, plus CE and UKCA marks for global compatibility. The AF technology, broad control voltage range, and built-in surge protection simplify panel design while improving energy efficiency. Its compact 3-pole form factor and DIN-rail compatibility support scalable, maintainable control architectures for OEMs and end-users alike.
Product Information
Extended Description

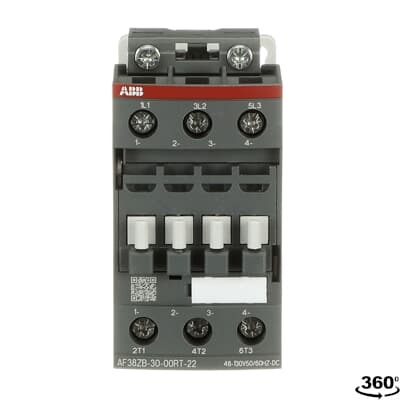

1SBL296060R2200 ABB: The AF38ZB-30-00RT-22 is a 3 pole - 690 V IEC or 600 UL contactor with Ring-Tongue Terminals, controlling motors up to 18.5 kW / 400 V AC (AC-3) or 25 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Motor control and protection for Rolling stock application_PDF
Instructions and Manuals
Installation instructions AF09...38(Z)B-..RT Contactors, NF(Z)B..ERT Contactor relays and CA4..RT, CAL4..RT, CAT4..RT, LDC4RT Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Depth / Length
86 mm
Product Net Height
86 mm
Product Net Weight
0.36 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 690 V
Rated Frequency (f)
Control Circuit 50 / 60 Hz | Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 50 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 50 A | (690 V) 60 °C 42 A | (690 V) 70 °C 37 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 38 A | (440 V) 60 °C 38 A | (500 V) 60 °C 33 A | (690 V) 60 °C 24 A | (380 / 400 V) 60 °C 38 A | (220 / 230 / 240 V) 60 °C 40 A
Rated Operational Current AC-3e (Ie)
(415 V) 60 °C 38 A | (440 V) 60 °C 38 A | (500 V) 60 °C 33 A | (690 V) 60 °C 24 A | (380 / 400 V) 60 °C 38 A | (220 / 230 / 240 V) 60 °C 40 A
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 50 A | (110 V) 2 Poles in Series, 60 °C 42 A | (110 V) 2 Poles in Series, 70 °C 37 A | (110 V) 3 Poles in Series, 40 °C 50 A | (110 V) 3 Poles in Series, 60 °C 42 A | (110 V) 3 Poles in Series, 70 °C 37 A | (220 V) 3 Poles in Series, 40 °C 50 A | (220 V) 3 Poles in Series, 60 °C 42 A | (220 V) 3 Poles in Series, 70 °C 37 A | (72 V) 1-Pole, 40 °C 50 A | (72 V) 1-Pole, 60 °C 42 A | (72 V) 1-Pole, 70 °C 37 A | (72 V) 2 Poles in Series, 40 °C 50 A | (72 V) 2 Poles in Series, 60 °C 42 A | (72 V) 2 Poles in Series, 70 °C 37 A | (72 V) 3 Poles in Series, 40 °C 50 A | (72 V) 3 Poles in Series, 60 °C 42 A | (72 V) 3 Poles in Series, 70 °C 37 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 50 A | (110 V) 2 Poles in Series, 60 °C 42 A | (110 V) 2 Poles in Series, 70 °C 37 A | (110 V) 3 Poles in Series, 40 °C 50 A | (110 V) 3 Poles in Series, 60 °C 42 A | (110 V) 3 Poles in Series, 70 °C 37 A | (220 V) 3 Poles in Series, 40 °C 50 A | (220 V) 3 Poles in Series, 60 °C 42 A | (220 V) 3 Poles in Series, 70 °C 37 A | (72 V) 1-Pole, 40 °C 50 A | (72 V) 1-Pole, 60 °C 42 A | (72 V) 1-Pole, 70 °C 37 A | (72 V) 2 Poles in Series, 40 °C 50 A | (72 V) 2 Poles in Series, 60 °C 42 A | (72 V) 2 Poles in Series, 70 °C 37 A | (72 V) 3 Poles in Series, 40 °C 50 A | (72 V) 3 Poles in Series, 60 °C 42 A | (72 V) 3 Poles in Series, 70 °C 37 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 50 A | (110 V) 2 Poles in Series, 60 °C 42 A | (110 V) 2 Poles in Series, 70 °C 37 A | (110 V) 3 Poles in Series, 40 °C 50 A | (110 V) 3 Poles in Series, 60 °C 42 A | (110 V) 3 Poles in Series, 70 °C 37 A | (220 V) 3 Poles in Series, 40 °C 25 A | (220 V) 3 Poles in Series, 60 °C 25 A | (220 V) 3 Poles in Series, 70 °C 25 A | (72 V) 1-Pole, 40 °C 25 A | (72 V) 1-Pole, 60 °C 25 A | (72 V) 1-Pole, 70 °C 25 A | (72 V) 2 Poles in Series, 40 °C 50 A | (72 V) 2 Poles in Series, 60 °C 42 A | (72 V) 2 Poles in Series, 70 °C 37 A | (72 V) 3 Poles in Series, 40 °C 50 A | (72 V) 3 Poles in Series, 60 °C 42 A | (72 V) 3 Poles in Series, 70 °C 37 A
Rated Operational Power AC-3 (Pe)
(415 V) 18.5 kW | (440 V) 22 kW | (500 V) 22 kW | (690 V) 22 kW | (380 / 400 V) 18.5 kW | (220 / 230 / 240 V) 11 kW
Rated Operational Power AC-3e (Pe)
(415 V) 18.5 kW | (440 V) 22 kW | (500 V) 22 kW | (690 V) 22 kW | (380 / 400 V) 18.5 kW | (220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-1) 600 cycles per hour | (AC-2 / AC-4) 150 cycles per hour | (AC-3) 1200 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 48 ... 130 V | 60 Hz 48 ... 130 V | DC Operation 48 ... 130 V
Power Loss
at Rated Operating Conditions AC-1 per Pole 2.4 W | at Rated Operating Conditions AC-3 per Pole 1.3 W
Operate Time
Between Coil De-energization and NC Contact Closing 13 ... 98 ms | Between Coil De-energization and NO Contact Opening 11 ... 95 ms | Between Coil Energization and NC Contact Opening 38 ... 90 ms | Between Coil Energization and NO Contact Closing 40 ... 95 ms
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M4 screws placed diagonally
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Tightening Torque
Control Circuit 1.2 N·m | Main Circuit 2.5 N·m
Terminal Type
Ring-Tongue Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 50 A
Horsepower Rating UL/CSA
(120 V AC) Single Phase 2 hp | (200 ... 208 V AC) Three Phase 10 hp | (220 ... 240 V AC) Three Phase 10 hp | (240 V AC) Single Phase 5 hp | (440 ... 480 V AC) Three Phase 20 hp | (550 ... 600 V AC) Three Phase 25 hp
Tightening Torque UL/CSA
Control Circuit 11 in·lb | Main Circuit 22 in·lb
Full Load Amps Motor Use
(120 V AC) Single Phase 24 A | (200 ... 208 V AC) Three Phase 32.2 A | (220 ... 240 V AC) Three Phase 28 A | (240 V AC) Single Phase 28 A | (440 ... 480 V AC) Three Phase 34 A | (550 ... 600 V AC) Three Phase 32 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C | Close to Contactor without Thermal O/L Relay -40 ... 70 °C | Close to Contactor for Storage -60 ... +80 °C
Climatic Withstand
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible
Without Derating 3000 m
Shock and Vibration Withstand acc. to IEC 61373
Category 1, Class B
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
96a02039-85b3-4545-8cf7-36c978d3f577 China (CN)
Simplified SCIP
9aef12a9-6787-46c4-983c-4431d8f37297 Poland (PL) | 2d090b10-2875-4249-a0a6-ee26a663cbb1 Belgium (BE) | 180de4d5-b925-4ea0-9859-cbc5f407b1dd Finland (FI) | 18918bcb-ed3b-4b9b-89a3-b647cb2f31b7 Poland (PL) | 6908327a-cc8f-4f3a-ae43-d80a27fd08d7 Norway (NO) | b45086dd-8ace-487b-819e-bc4d79f70eff Czech Republic (CZ) | 80e70afe-496e-47a1-bbe0-57318f53350c Germany (DE) | 41239d9f-2c8c-4f81-a620-beaac55b331d Spain (ES) | 43a2c9c2-fa93-46a7-833b-d9cae6b01624 Germany (DE) | a40b6fc7-be17-41f7-a745-faf0a8d01503 Denmark (DK) | 918571e6-143f-4bb7-a75d-dd67e2e1f94e Germany (DE) | ed9aa914-8fba-4ccb-98b8-6895f22bc8f2 Croatia (HR) | 853f2e14-bfa3-4bbf-a20f-3ceb365189f9 Hungary (HU) | 247cf975-ee4a-47ed-ac90-a864eca7410f Poland (PL) | 6bcf25c8-ab83-45a5-9dfb-d744fe0bf52d Estonia (EE) | 3156161e-6408-4dea-b4d3-cfe9c0ed8017 Greece (GR) | d997daa6-2422-46c5-813d-41a2ba5bf185 Netherlands (NL) | 5bda081b-07cd-41f9-82ef-85d9e9d67d9d Sweden (SE) | 14b0180f-fcc0-4ac5-99b2-32b244525a90 Germany (DE) | 76213f1c-1ec7-41f7-888a-9a96f64d9eb1 Hungary (HU) | e977d699-a4fc-437c-a785-627e3ab71d42 Belgium (BE) | db056fea-b1f3-4b94-805c-4a958a0c753f France (FR) | e43e41a5-3cdd-443a-a6e3-43bca96785c3 France (FR) | 4bf13d42-410a-44d7-9afa-ca2e3837c0e5 Germany (DE) | e85149f9-2c04-438a-9df1-ab7476270770 Sweden (SE) | b7e7c1a2-dafc-45cb-a95f-69b3a2ba610a Portugal (PT) | 6dfea69b-4a95-4e66-b164-bdcc8286b0e1 Bulgaria (BG)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays
Environmental Product Declaration - EPD
Environmental Product Declaration AF(S)26/30/38(Z)(B) Contactors (FR) | Environmental Product Declaration AF26/30/38(Z)(B) Contactors (CN)
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 86 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 28 %
CB Certificate
CB Certificate AF26(Z)(B), AF30(Z)(B), AF(Z)(B)38 3-pole contactors, AFS26, AFS30, AFS38 safety contactors
CCC Certificate
CCC Certificate AF26, AF30, AF38, AF26(Z)B, AF30(Z)B, AF38(Z)B 3 and 4-pole contactors, AFS26, AFS30, AFS38 safety contactors
CQC Certificate
CQC Certificate, Contactor, AF*26, AF*30, AF*38, Made in France
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AF26, AF30, AF38, AFS26, AFS30, AFS38 Made in France
Declaration of Conformity - CE
EU Declaration of Conformity AF09 to AF38(Z)B..RT 3 and 4-pole contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AF09 to AF38(Z)B..RT 3 and 4-pole contactors
UL Listing Card
UL_E312527
UR Certificate
UR Certificate of Compliance AF09...AF38(Z)B..RT 3-pole contactors with ring tongue terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
87 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
47 mm
Package Level 1 Gross Weight
0.36 kg
Package Level 1 EAN
3471523129122
Package Level 2 Units
box 21 piece
Package Level 2 Width
250 mm
Package Level 2 Depth / Length
300 mm
Package Level 2 Height
315 mm
Package Level 2 Gross Weight
16.2 kg
Package Level 3 Units
1080 piece
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature → Business Impact → Application: Wide control voltage range 48–130 V AC/DC reduces panel wiring complexity and accommodates voltage variations in harsh industrial environments, enabling consistent coil operation and fewer false trips in conveyors and pumps. This translates to lower maintenance costs and improved uptime in continuous operations. Feature → Business Impact → Application: Built-in surge protection mitigates voltage spikes, protecting contacts and downstream electronics, which lowers replacement rates and enhances system reliability in rolling-stock and material-handling environments. Feature → Business Impact → Application: 3-pole 690 V main circuit supports high-power motor control (AC-3 and AC-1 ranges) with predictable protection timing, suitable for fans, pumps, and HVAC drives in demanding facilities. Feature → Business Impact → Application: Ring-Tongue terminals and AF technology enable quick, secure field wiring and stable switching, reducing installation time and panel footprint in compact control cabinets. Feature → Business Impact → Application: Compact Block Contactor design with DIN rail mounting TH35-15 or TH35-7.5 supports modular expansion and easy retrofits, ideal for OEMs updating legacy lines or adding accessory contact blocks. Feature → Business Impact → Application: Wide compatibility with add-on auxiliary contact blocks and accessories simplifies customization for motor control and protection schemes, improving retrofit viability and long-term support. Feature → Business Impact → Application: Mechanical and electrical performance (3600 cycles mechanical, up to 1200 cycles/hour electrical) delivers reliable operation in high-turnover applications like conveyors and automated sorting systems, reducing downtime and maintenance costs.
Get a Quick Quote for a ABB 1SBL296060R2200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL296060R2200?
Enquire Now
FAQs
The device is designed for DIN rail mounting using TH35 standards. It supports TH35-15 and TH35-7.5 rails and is compatible with two M4 mounting screws for secure installation. This enables fast panel wiring, modular expansion, and easy retrofits in existing control cabinets.
The coil accepts 48 to 130 V for AC operation (50/60 Hz) or DC within the same range. Ring-tongue terminals are provided for robust, vibration-resistant connections. Wiring should follow standard motor-control practices, with appropriate isolation and protection per IEC 60947-4-1 guidelines.
Yes. It carries CE and UKCA marks, with UL/CSA recognition and CCC/CB certifications where applicable. Compliance references include IEC/EN 60947-4-1 and related UL/CSA standards, ensuring suitability for international installations in automotive, rail, and general industrial applications.
For AC-3 duty at 690 V, the contactor provides 24 A at 60 °C and 24 A at 60 °C for 690 V variants in the standard configuration. This makes it suitable for motor starting and running where a balanced, reliable switching profile is required, such as fans and small pumps in automation systems.
Built-in surge protection and AF technology stabilize operation under voltage fluctuations, reducing nuisance trips. The device also offers robust mechanical life (3600 cycles/hour) and electrical switching capability (up to 1200 cycles/hour for AC-3), along with IP10 protection for terminals, ensuring durable performance in harsh industrial environments.
