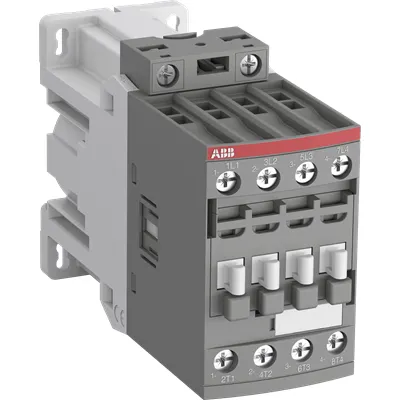

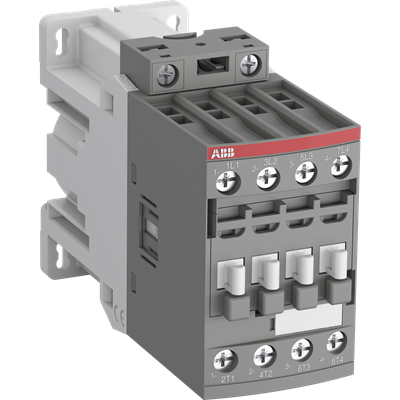

ABB 1SBL296201R3000 Block Contactor - 690V/55A
Part Number: 1SBL296201R3000
Quick Summary
ABB 1SBL296201R3000 Block Contactor is a 4-pole motor controller ideal for industrial machinery. In modern panels, engineers face high coil energy use and wiring complexity; this design reduces energy consumption with a 24 V DC coil and built-in surge protection, while remaining PLC-friendly for direct control. It carries IEC/EN 60947-1 and 60947-4-1 compliance, UL/CSA general-use ratings, and CE/UKCA declarations to support global deployments. The compact block form plus DIN rail mounting and add-on auxiliary blocks enable faster installation, easier future expansion, and predictable performance, helping lower energy costs and simplify maintenance in demanding electrical environments.
Product Information
Extended Description
1SBL296201R3000 ABB: The AF38Z-40-00-30 is a 4-pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) and switching power circuits up to 55 A (AC-1) or 55 A UL general use. Thanks to the AF technology, the contactor has a 24 V DC coil, featuring a reduced holding coil consumption down to 1.7 W and offering the possibility of a direct control by PLC-output ≥ 250 mA 24 V DC, without need of additional interface relay, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Instructions and Manuals
Installation instructions AF09...38Z-..-..-30 Contactors, NFZ..E-30 Contactor relays and CA4, CAL4, CC4, LDC4 Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Depth / Length
121 mm
Product Net Height
86 mm
Product Net Weight
0.53 kg
Number of Main Contacts NO
4
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
4P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1
Rated Operational Voltage
Main Circuit 690 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 55 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 55 A | (690 V) 60 °C 45 A | (690 V) 70 °C 37 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 21.2 A | (440 V) 60 °C 20 A | (500 V) 60 °C 17.6 A | (690 V) 60 °C 10.5 A | (380 / 400 V) 60 °C 22 A | (220 / 230 / 240 V) 60 °C 23.2 A
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 55 A | (110 V) 2 Poles in Series, 60 °C 45 A | (110 V) 2 Poles in Series, 70 °C 37 A | (110 V) 3 Poles in Series, 40 °C 55 A | (110 V) 3 Poles in Series, 60 °C 45 A | (110 V) 3 Poles in Series, 70 °C 37 A | (110 V) 4 Poles in Series, 40 °C 55 A | (110 V) 4 Poles in Series, 60 °C 45 A | (110 V) 4 Poles in Series, 70 °C 37 A | (220 V) 3 Poles in Series, 40 °C 55 A | (220 V) 3 Poles in Series, 60 °C 45 A | (220 V) 3 Poles in Series, 70 °C 37 A | (220 V) 4 Poles in Series, 40 °C 55 A | (220 V) 4 Poles in Series, 60 °C 45 A | (220 V) 4 Poles in Series, 70 °C 37 A | (72 V) 1-Pole, 40 °C 55 A | (72 V) 1-Pole, 60 °C 45 A | (72 V) 1-Pole, 70 °C 37 A | (72 V) 2 Poles in Series, 40 °C 55 A | (72 V) 2 Poles in Series, 60 °C 45 A | (72 V) 2 Poles in Series, 70 °C 37 A | (72 V) 3 Poles in Series, 40 °C 55 A | (72 V) 3 Poles in Series, 60 °C 45 A | (72 V) 3 Poles in Series, 70 °C 37 A | (72 V) 4 Poles in Series, 40 °C 55 A | (72 V) 4 Poles in Series, 60 °C 45 A | (72 V) 4 Poles in Series, 70 °C 37 A
Rated Operational Power AC-3 (Pe)
(400 V) 11 kW | (415 V) 11 kW | (440 V) 11 kW | (500 V) 11 kW | (690 V) 9 kW | (220 / 230 / 240 V) 5.5 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 300 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 55 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 450 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-1) 600 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Rated Control Circuit Voltage (Uc)
DC Operation 24 V
Power Loss
at Rated Operating Conditions AC-1 per Pole 2.3 W
Operate Time
Between Coil De-energization and NC Contact Closing 22 ... 57 ms | Between Coil De-energization and NO Contact Opening 17 ... 29 ms | Between Coil Energization and NC Contact Opening 20 ... 35 ms | Between Coil Energization and NO Contact Closing 27 ... 53 ms
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M4 screws placed diagonally
Connecting Capacity Main Circuit
Flexible with Ferrule 1/2x 1.5 ... 16 mm² | Flexible with Insulated Ferrule 1/2x 1.5 ... 16 mm² | Rigid Solid 1/2x 1.5 ... 4 mm² | Rigid Stranded 1/2x 1.5 ... 16 mm²
Connecting Capacity Control Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Rigid Solid 1/2x 1 ... 2.5 mm² | Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Control Circuit 10 mm | Main Circuit 12 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque
Control Circuit 1.2 N·m | Main Circuit 2.5 N·m
Terminal Type
Screw Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 55 A
Connecting Capacity Main Circuit UL/CSA
Rigid Solid 1/2x 16-10 AWG | Rigid Stranded 1/2x 16-6 AWG
Connecting Capacity Control Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG | Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA
Control Circuit 11 in·lb | Main Circuit 22 in·lb
Ambient Air Temperature
Close to Contactor for Storage -60 ... +80 °C | Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible
Without Derating 3000 m
Resistance to Vibrations
4g Closed Position & 2g Open position 5 ... 300 Hz
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays
Environmental Product Declaration - EPD
Environmental Product Declaration AF(S)26/30/38(Z)(B) Contactors (FR)
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 86 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 28 %
A2L Certificate – UL
UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers | UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers
CB Certificate
CB Certificate AF(C)26, AF(C)38, AF26(Z)B, AF38(Z)B 4-pole contactors
CCC Certificate
CCC Certificate AF26, AF30, AF38, AF26(Z)B, AF30(Z)B, AF38(Z)B 3 and 4-pole contactors, AFS26, AFS30, AFS38 safety contactors
CQC Certificate
CQC Certificate, Contactor, AF*26, AF*30, AF*38, Made in France | CQC Certificate, Contactor, AF26,AF30,AF38, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AF26, AF30, AF38, AFS26, AFS30, AFS38 Made in France | CCC Declaration of Conformity, Contactor, AF26, AF30, AF38, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity AF09, AF16, AF26, AF38, AF40, AF52, AF80, 4-pole Contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AF09, AF16, AF26, AF38, AF40, AF52, AF80, 4-pole Contactors
DNV Certificate
DNV Certificate AF(S)09...96 3-pole & AF09...80 4-pole contactors with screw, spring, push-in terminals
RMRS Certificate
RMRS Certificate AF(S)09(S)...AF(S)38 3-pole and 4-pole, AF(S)40..96 3-pole contactors with screw, push-in and spring terminals
UL Certificate
UL_20171228-E319322_3_1
Package Level 1 Units
box 1 piece
Package Level 1 Width
96 mm
Package Level 1 Depth / Length
127 mm
Package Level 1 Height
50 mm
Package Level 1 Gross Weight
0.574 kg
Package Level 1 EAN
3471523116191
Package Level 2 Units
crate 12 piece
Package Level 2 Width
51 mm
Package Level 2 Depth / Length
98 mm
Package Level 2 Height
129 mm
Package Level 2 Gross Weight
6.888 kg
Package Level 3 Units
576 piece
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature AF technology with a 24 V DC coil reduces holding power and enables direct PLC control, delivering measurable energy savings and simpler interface in industrial automation contexts → Business Impact Lower panel energy consumption and streamlined control wiring for reliable, cost-efficient machine control in high-cycle applications → Application Suitable for four-pole motor control up to 11 kW at 400 V AC (AC-3) with compact footprint in automation panels. Feature Built-in surge protection and a block design that accepts add-on auxiliary contact blocks → Business Impact Enhanced reliability, reduced spare parts, and scalable expansion for future system upgrades → Application Ideal for OEMs and end users integrating add-ons or upgrading legacy relays in packaging, material handling, and process lines. Feature DIN rail mounting TH35-15 or TH35-7.5 and screw-terminal connections for fast, secure installation → Business Impact Slimline mounting, fewer wiring errors, and easy field servicing in control cabinets. Feature Rated currents AC-1 and AC-3 across multiple voltages (e.g., 690 V main, 415/440/500 V variants) plus DC-1 options, enabling precise selection for motor load profiles → Business Impact Protects equipment from overload, ensures compliance with IEC and UL standards, and reduces downtime due to misrating. Feature 2.5 N·m main-conductor torque and 1.2 N·m control-torque support robust terminations with long-term reliability → Business Impact Consistent electrical connections, reduced maintenance, and lower risk of terminal loosening in vibration-prone environments.
Get a Quick Quote for a ABB 1SBL296201R3000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL296201R3000?
Enquire Now
FAQs
Install on a suitable DIN rail (TH35-15 or TH35-7.5) and secure with 2x M4 screws. Use screw terminals for both main and control circuits, respect wire sizes (main 1/2x 1.5...16 mm²; control 0.75...2.5 mm²), and tighten to the specified torques (2.5 N·m main, 1.2 N·m control). Leave adequate space for cooling and access to wiring.
Main circuit rated voltage is up to 690 V with AC-3 rating supporting up to 10.5 A at 690 V (60 °C) and up to 21.2 A at 415 V (AC-3). The control circuit uses a 24 V DC coil, with a coil power loss of about 2.3 W per pole, and provides clear switching for loads up to 55 A in UL/CSA configurations.
Yes. The contactor offers rated operational power AC-3 around 11 kW at 400 V, with corresponding current ratings per voltage class (e.g., 22 A at 440 V, 23.2 A at 220–240 V). The 4-pole design supports balanced phase control, and built-in surge protection helps protect motors from voltage transients.
It complies with IEC/EN 60947-1 and 60947-4-1, UL 60335-2-40, UL 508, and CSA equivalents, and carries CE/UKCA declarations. Additional certifications include CB, CCC, CQC, and DNV as listed in the datasheet, supporting compliance across regions and helping with regulatory documentation and supplier qualification.
AF technology reduces coil holding power to about 1.7 W, lowering standby energy in control cabinets. It supports direct PLC control (≥ 250 mA at 24 V DC) without extra interface relays, reducing panel complexity. Built-in surge protection and a compact block design also minimize panel space, stocking, and maintenance costs over the lifecycle.
