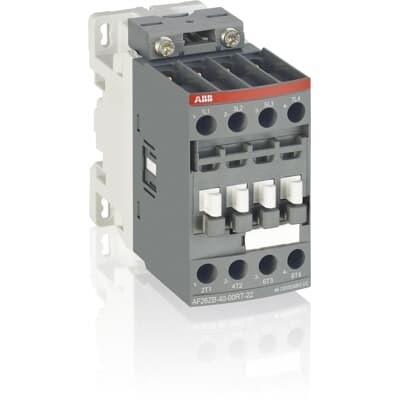

ABB 1SBL296260R2300 Block Contactor - IEC/EN 60947-4-1
Part Number: 1SBL296260R2300
Quick Summary
Block Contactor 1SBL296260R2300 from ABB provides reliable motor control for four-pole applications up to 11 kW in 400–690 V systems. In demanding automation environments, voltage swings and supply fluctuations can cause nuisance trips and wasted energy. This device mitigates those risks with AF technology, a wide control voltage range (100–250 V AC/50/60 Hz and DC) and built-in surge protection. It complies with IEC/EN 60947-1 and 60947-4-1, UL 60947-4-1, and CE/UKCA declarations for global installation and regulatory conformity. Compact, modular design simplifies panel layouts and maintenance. Compatibility with add-on auxiliary contact blocks and DIN-rail mounting translates into scalable, cost-efficient control solutions for OEMs and end users alike.
Product Information
Extended Description
1SBL296260R2300 ABB: The AF38ZB-40-00RT-23 is a 4 pole - 690 V IEC or 600 UL contactor with Ring-Tongue Terminals, controlling motors up to 11 kW / 400 V AC (AC-3) and switching power circuits up to 55 A (AC-1) or 55 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Motor control and protection for Rolling stock application_PDF
Instructions and Manuals
Installation instructions AF09...38(Z)B-..RT Contactors, NF(Z)B..ERT Contactor relays and CA4..RT, CAL4..RT, CAT4..RT, LDC4RT Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Depth / Length
101 mm
Product Net Height
86 mm
Product Net Weight
0.39 kg
Number of Main Contacts NO
4
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
4P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 690 V
Rated Frequency (f)
Control Circuit 50 / 60 Hz | Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 55 A
Rated Operational Current AC-1 (Ie)
(1000 V) 60 °C 45 A | (690 V) 40 °C 55 A | (690 V) 70 °C 37 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 21.2 A | (440 V) 60 °C 20 A | (500 V) 60 °C 17.6 A | (690 V) 60 °C 10.5 A | (380 / 400 V) 60 °C 22 A | (220 / 230 / 240 V) 60 °C 23.2 A
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 55 A | (110 V) 2 Poles in Series, 60 °C 45 A | (110 V) 2 Poles in Series, 70 °C 37 A | (110 V) 3 Poles in Series, 40 °C 55 A | (110 V) 3 Poles in Series, 60 °C 45 A | (110 V) 3 Poles in Series, 70 °C 37 A | (110 V) 4 Poles in Series, 40 °C 55 A | (110 V) 4 Poles in Series, 60 °C 45 A | (110 V) 4 Poles in Series, 70 °C 37 A | (220 V) 3 Poles in Series, 40 °C 55 A | (220 V) 3 Poles in Series, 60 °C 45 A | (220 V) 3 Poles in Series, 70 °C 37 A | (220 V) 4 Poles in Series, 40 °C 55 A | (220 V) 4 Poles in Series, 60 °C 45 A | (220 V) 4 Poles in Series, 70 °C 37 A | (72 V) 1-Pole, 40 °C 55 A | (72 V) 1-Pole, 60 °C 45 A | (72 V) 1-Pole, 70 °C 37 A | (72 V) 2 Poles in Series, 40 °C 55 A | (72 V) 2 Poles in Series, 60 °C 45 A | (72 V) 2 Poles in Series, 70 °C 37 A | (72 V) 3 Poles in Series, 40 °C 55 A | (72 V) 3 Poles in Series, 60 °C 45 A | (72 V) 3 Poles in Series, 70 °C 37 A | (72 V) 4 Poles in Series, 40 °C 55 A | (72 V) 4 Poles in Series, 60 °C 45 A | (72 V) 4 Poles in Series, 70 °C 37 A
Rated Operational Power AC-3 (Pe)
(400 V) 11 kW | (415 V) 11 kW | (440 V) 11 kW | (500 V) 11 kW | (690 V) 9 kW | (220 / 230 / 240 V) 5.5 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 300 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 55 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 450 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Power Loss
at Rated Operating Conditions AC-1 per Pole 2.3 W | at Rated Operating Conditions AC-3 per Pole 0.42 W
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M4 screws placed diagonally
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Tightening Torque
Control Circuit 1.2 N·m | Main Circuit 2.5 N·m
Terminal Type
Ring-Tongue Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 55 A
Tightening Torque UL/CSA
Control Circuit 11 in·lb | Main Circuit 22 in·lb
Ambient Air Temperature
Close to Contactor for Storage -60 ... +80 °C | Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible
Without Derating 3000 m
Shock and Vibration Withstand acc. to IEC 61373
Category 1, Class B
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays
Environmental Product Declaration - EPD
Environmental Product Declaration AF(S)26/30/38(Z)(B) Contactors (FR)
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 86 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 28 %
CB Certificate
CB Certificate AF26, AF38, AF26(Z)B, AF38(Z)B 4-pole contactors
CCC Certificate
CCC Certificate AF26, AF30, AF38, AF26(Z)B, AF30(Z)B, AF38(Z)B 3 and 4-pole contactors, AFS26, AFS30, AFS38 safety contactors
CQC Certificate
CQC Certificate, Contactor, AF*26, AF*30, AF*38, Made in France
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AF26, AF30, AF38, AFS26, AFS30, AFS38 Made in France
Declaration of Conformity - CE
EU Declaration of Conformity AF09 to AF38(Z)B..RT 3 and 4-pole contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AF09 to AF38(Z)B..RT 3 and 4-pole contactors
UL Listing Card
UL_E319322
UR Certificate
UR Certificate of Compliance AF09...AF38(Z)B-..RT 4-pole contactors with ring tongue terminals
Package Level 1 Units
box 1 piece
Package Level 1 Width
87 mm
Package Level 1 Depth / Length
103 mm
Package Level 1 Height
47 mm
Package Level 1 Gross Weight
0.4 kg
Package Level 1 EAN
3471523129337
Package Level 2 Units
box 18 piece
Package Level 2 Width
250 mm
Package Level 2 Depth / Length
300 mm
Package Level 2 Height
315 mm
Package Level 2 Gross Weight
14.4 kg
Package Level 3 Units
864 piece
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature AF technology provides a wide control voltage range and surge protection, delivering stable operation in networks with significant voltage variation. Business Impact: reduces panel energy consumption and nuisance trips, improves system reliability, and lowers maintenance costs. Application: motor control in conveyors, pumps, and fans where supply voltage can fluctuate. Feature 4-pole, 690 V main circuit supports robust power switching with 55 A AC-1 / 10.5 A AC-3 ratings, enabling compact drives for standard industrial motors. Business Impact: enables reliable motor starts with minimal voltage drop, reducing wear and energy losses. Application: general-purpose motor control in industrial cabinets. Feature DIN-rail mounting (TH35) and compatibility with add-on auxiliary contact blocks, easing installation and future expansion. Business Impact: saves space, shortens commissioning time, and delivers scalable control architecture. Application: modular panels and OEM assemblies requiring quick retrofit. Feature Built-in surge protection and low per-pole power loss (2.3 W AC-1, 0.42 W AC-3) improve energy efficiency and thermal performance. Business Impact: lowers heat load and energy costs in energy-intensive applications. Application: long-term operation in enclosed panels. Feature Compact footprint (45 mm wide, 101 mm deep, 86 mm high) with 0.39 kg weight supports space-constrained installations. Business Impact: enables denser panel layouts and easier serviceability. Application: control cabinets and distributed automation.
Get a Quick Quote for a ABB 1SBL296260R2300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL296260R2300?
Enquire Now
FAQs
The device supports TH35-15 and TH35-7.5 DIN rails for quick, secure installation. When mounting on a DIN rail isn’t feasible, you can use 2 x M4 screws placed diagonally for standalone panel mounting. Ensure the coil terminals are properly connected and the main terminals are tightened to 2.5 N·m per pole to maintain reliable contact closure.
Main circuit rated at 690 V, 4 poles, with AC-1 ratings up to 55 A and AC-3 ratings up to 10.5 A at 690 V. Control circuit voltage is 100–250 V (AC, 50/60 Hz) or DC. Rated impulse withstand voltage is 6 kV, and insulation voltage is 690 V. These specs support robust motor starting and switching in standard industrial drives.
Yes. The AF technology and wide control voltage range are well-suited for automotive, industrial, and rolling stock motor control environments where voltage variations occur. The device supports up to 11 kW at 400–690 V, with built-in surge protection and modular add-ons, facilitating both current needs and future expansion in demanding industries.
It carries CE and UKCA declarations, UL/CSA listings, CCC and CQC certificates, RoHS and REACH declarations, and TSCA compliance. This broad certification portfolio enables compliant installation across multiple regions and supports ongoing regulatory adherence in both new builds and retrofit projects.
Low coil power loss (2.3 W AC-1 per pole; 0.42 W AC-3 per pole) reduces thermal stress and energy consumption. Built-in surge protection lowers external protective components, while DIN rail compatibility and modular auxiliary blocks simplify servicing and future reconfigurations. Overall, this reduces total cost of ownership and improves long-term system uptime.
