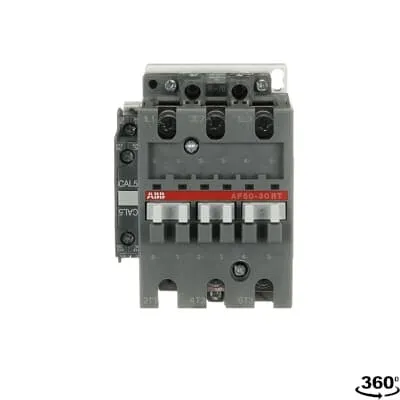

ABB 1SBL357010R7011 Block Contactor - IEC/UL 690V
Part Number: 1SBL357010R7011
Quick Summary
ABB 1SBL357010R7011 is a 3-pole block contactor for 3-phase motors up to 690 V AC with a 100–250 V control range. This design helps mitigate downtime caused by control voltage fluctuations and dips, letting equipment respond reliably even when mains voltage varies. It carries broad certifications that support global deployment, including IEC/EN 60947-1 and 60947-4-1, UL 508, and CSA C22.2 No. 14, improving compliance confidence across facilities. The wide-range coil interface accepts AC or DC inputs, reducing stock and simplifying procurement. With DIN-rail mounting options, IP20 coil terminals, and accessible accessories, it accelerates panel builds while delivering consistent motor control in demanding environments.
Product Information
Extended Description
1SBL357010R7011 ABB: AF50 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits... The AF... contactors are fitted with an electronic coil interface which accepts a wide control voltage range, on AC 50/60 Hz or DC supplies. The same contactor can accept various supply voltages according to the different countries where the electrical equipment will be installed, or some fluctuation in the control voltage due to the local supply or network. The AF... contactors are also fully suitable for operation in AC or DC control circuit liable to voltage interruptions or voltage dip risks. Advantages: - Wide voltage range, e.g. 100 ... 250 V AC and DC - Can manage large voltage variations - Reduced power consumption - Very distinct closing and opening - Noise free - Can withstand voltage interruptions or voltage dips in the control supply (≤ 20 ms). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536490065
Instructions and Manuals
Operating Instructions A..RT, AE..RT, AF..RT, TAE..RT 4-pole contactors
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
82 mm
Product Net Depth / Length
108 mm
Product Net Height
110 mm
Product Net Weight
1.23 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Auxiliary Circuit 690 V | Main Circuit 690 V
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 100 A | (690 V) 55 °C 85 A | (690 V) 70 °C 70 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 50 A | (440 V) 55 °C 45 A | (500 V) 55 °C 45 A | (690 V) 55 °C 35 A | (380 / 400 V) 55 °C 50 A | (220 / 230 / 240 V) 55 °C 53 A
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 6 A | (220 / 240 V) 4 A
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 100 A | (110 V) 2 Poles in Series, 55 °C 85 A | (110 V) 2 Poles in Series, 70 °C 70 A | (110 V) 3 Poles in Series, 40 °C 100 A | (110 V) 3 Poles in Series, 55 °C 85 A | (110 V) 3 Poles in Series, 70 °C 70 A | (220 V) 3 Poles in Series, 40 °C 100 A | (220 V) 3 Poles in Series, 55 °C 85 A | (220 V) 3 Poles in Series, 70 °C 70 A | (72 V) 1-Pole, 40 °C 100 A | (72 V) 1-Pole, 55 °C 85 A | (72 V) 1-Pole, 70 °C 70 A | (72 V) 2 Poles in Series, 40 °C 100 A | (72 V) 2 Poles in Series, 55 °C 85 A | (72 V) 2 Poles in Series, 70 °C 70 A | (72 V) 3 Poles in Series, 40 °C 100 A | (72 V) 3 Poles in Series, 55 °C 85 A | (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 100 A | (110 V) 2 Poles in Series, 55 °C 85 A | (110 V) 2 Poles in Series, 70 °C 70 A | (110 V) 3 Poles in Series, 40 °C 100 A | (110 V) 3 Poles in Series, 55 °C 85 A | (110 V) 3 Poles in Series, 70 °C 70 A | (220 V) 3 Poles in Series, 40 °C 100 A | (220 V) 3 Poles in Series, 55 °C 85 A | (220 V) 3 Poles in Series, 70 °C 70 A | (72 V) 1-Pole, 40 °C 100 A | (72 V) 1-Pole, 55 °C 85 A | (72 V) 1-Pole, 70 °C 70 A | (72 V) 2 Poles in Series, 40 °C 100 A | (72 V) 2 Poles in Series, 55 °C 85 A | (72 V) 2 Poles in Series, 70 °C 70 A | (72 V) 3 Poles in Series, 40 °C 100 A | (72 V) 3 Poles in Series, 55 °C 85 A | (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 80 A | (110 V) 2 Poles in Series, 55 °C 80 A | (110 V) 2 Poles in Series, 70 °C 70 A | (110 V) 3 Poles in Series, 40 °C 100 A | (110 V) 3 Poles in Series, 55 °C 85 A | (110 V) 3 Poles in Series, 70 °C 70 A | (220 V) 3 Poles in Series, 40 °C 50 A | (220 V) 3 Poles in Series, 55 °C 50 A | (220 V) 3 Poles in Series, 70 °C 50 A | (72 V) 1-Pole, 40 °C 50 A | (72 V) 1-Pole, 55 °C 50 A | (72 V) 1-Pole, 70 °C 50 A | (72 V) 2 Poles in Series, 40 °C 100 A | (72 V) 2 Poles in Series, 55 °C 85 A | (72 V) 2 Poles in Series, 70 °C 70 A | (72 V) 3 Poles in Series, 40 °C 100 A | (72 V) 3 Poles in Series, 55 °C 85 A | (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.30 A / 66 W | (250 V) 0.3 / 75 W
Rated Operational Power AC-3 (Pe)
(415 V) 25 kW | (440 V) 25 kW | (500 V) 30 kW | (690 V) 30 kW | (380 / 400 V) 22 kW | (220 / 230 / 240 V) 15 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A | for 0.1 s 140 A | for 1 s 100 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 1000 V | acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Power Loss
at 6 A per Pole 0.1 W | at Rated Operating Conditions AC-1 per Pole 5 W | at Rated Operating Conditions AC-3 per Pole 1.3 W
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M6 screws placed diagonally
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type
Ring-Tongue Terminals
Product Name
Block Contactor
NEMA Size
2
Horsepower Rating NEMA
(115 V AC) Single Phase 3 Hp | (200 V AC) Three Phase 10 Hp | (230 V AC) Single Phase 7-1/2 Hp | (230 V AC) Three Phase 15 Hp | (460 V AC) Three Phase 25 Hp | (575 V AC) Three Phase 25 Hp
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 80 A
Horsepower Rating UL/CSA
(120 V AC) Single Phase 3 hp | (200 ... 208 V AC) Three Phase 15 Hp | (220 ... 240 V AC) Three Phase 20 Hp | (240 V AC) Single Phase 7-1/2 hp | (440 ... 480 V AC) Three Phase 40 Hp | (550 ... 600 V AC) Three Phase 50 Hp
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C | Close to Contactor without Thermal O/L Relay -40 ... 70 °C | Close to Contactor for Storage -60 ... +80 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CCC Certificate
CCC certificate for 3-pole and 4-pole AF45 to AF75 contactors with screw and ring tongue terminals
CQC Certificate
CQC Certificate, AC Contactor, AF45, AF50, AF63, AF75, Made in Bulgaria | CQC Certificate, Contactor, AF50, AF63, AF75, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF45, AF50, AF63, AF75, Made in Bulgaria | CCC Declaration of Conformity, Contactor, AF50, AF63, AF75, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity AF45 to A75 ..(RT) 3 and 4-pole contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AF45 to A75 ..(RT) 3 and 4-pole contactors
EAC Certificate
EAC_RU C-FR ME77 B01010
GOST Certificate
GOST_POCCFRME77B07175
KC Certificate
KC certificate AF50 3-pole contactors with screw for standard or Ring tongue ferrules
Package Level 1 Units
1 piece
Package Level 1 Width
140 mm
Package Level 1 Depth / Length
146 mm
Package Level 1 Height
96 mm
Package Level 1 Gross Weight
1.23 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature: Wide control voltage range (100–250 V AC or DC) with an electronic coil interface. Business impact: Tolerates voltage fluctuations and reduces control power waste, enabling safe operation across regional grids. Application: Ideal for global automation panels and motors controlled from mixed supply sources. Feature: 3 main NO contacts plus 1 auxiliary NO/NC contact. Business impact: Simplifies wiring, enables signaling and interlocking, and supports bypass or load switching. Application: Suitable for motor starters, pumps, and conveyors in process lines. Feature: Block design with front and side-mounted auxiliary contact blocks. Business impact: Modularity supports easy expansion and maintenance without panel redesign. Application: Scalable control cabinets and retrofit projects. Feature: Coil voltage tolerance supports AC 50/60 Hz and DC operation. Business impact: Reduces spare-part variety, lowers stocking costs, and improves response under fluctuating supplies. Application: International installations with mixed power systems. Feature: DIN rail mounting options TH35-15 or TH75-25 and screw mounting compatibility. Business impact: Fast, secure installation with compact footprint, saving panel space and enabling quick swaps. Application: Control panels, MCCs, and machine control enclosures. Feature: Protection ratings and terminal robustness. Business impact: IP20 coil terminals and IP10 main terminals support safe operation and wiring integrity in industrial environments. Application: Industrial automation cabinets and enclosures where space and reliability matter.
Get a Quick Quote for a ABB 1SBL357010R7011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL357010R7011?
Enquire Now
FAQs
Install on a standard 35x15 mm DIN rail (TH35-15) or 75x25 mm rail (TH75-25) per IEC 60715. Snap the unit onto the rail, align the main terminals for secure wiring, and attach the auxiliary block as needed. Confirm electrical clearances and torque specs per the product manual.
The device provides 3 main NO contacts and 1 auxiliary NO plus 1 NC contact. This configuration enables straightforward motor switching and signaling while allowing interlock or bypass schemes in automation panels.
Yes. It supports AC-3 and DC-3 duty ratings across multiple voltages. Check the rated current tables for your specific voltage and temperature to select the exact Ie values; the unit handles typical motor starting and capacitor switching within its spec.
Compliance includes IEC/EN 60947-1 and 60947-4-1, UL 508, CSA C22.2 No. 14, and relevant CE/UKCA declarations. Additional regional certifications such as CCC, EAC, and KC may apply depending on country and configuration.
With a wide control voltage range, low coil power loss, and robust mechanical life, the 1SBL357010R7011 reduces spare parts and energy waste. Expect lower downtime in variable supply environments and easier maintenance through standardized coil interfaces and modular auxiliary blocks.
