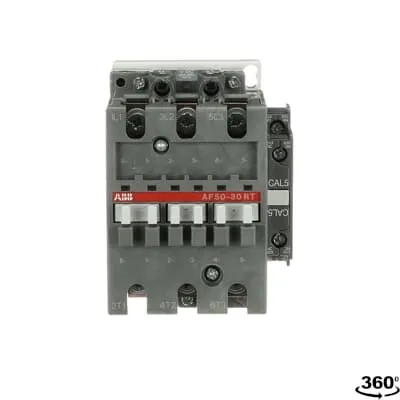

ABB 1SBL357010R7211 AF50 Block Contactor - IEC/EN 60947-4-1
Part Number: 1SBL357010R7211
Quick Summary
AF50 DC contactor is used to switch 3‑phase motors in 690 V AC power circuits. The coil interface accepts a wide control voltage range, helping you cope with local voltage fluctuations and interruptions. This product carries critical certifications, including IEC/EN 60947‑4‑1, UL 508, and CE marking, enabling global compliance and easier procurement. In addition to safety compliance, its compact 3‑pole block design with front and side mounted auxiliary contacts simplifies panel layouts, while DIN rail mounting (TH35-15 or TH75-25) reduces installation time. Businesses benefit from improved energy efficiency and reduced downtime thanks to precise switching, low power loss, and reliable operation across temperature and supply variations.
Product Information
Extended Description
1SBL357010R7211 ABB: AF50 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits... The AF... contactors are fitted with an electronic coil interface which accepts a wide control voltage range, on AC 50/60 Hz or DC supplies. The same contactor can accept various supply voltages according to the different countries where the electrical equipment will be installed, or some fluctuation in the control voltage due to the local supply or network. The AF... contactors are also fully suitable for operation in AC or DC control circuit liable to voltage interruptions or voltage dip risks. Advantages: - Wide voltage range, e.g. 100 ... 250 V AC and DC - Can manage large voltage variations - Reduced power consumption - Very distinct closing and opening - Noise free - Can withstand voltage interruptions or voltage dips in the control supply (≤ 20 ms). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536490065
Instructions and Manuals
Operating Instructions A..RT, AE..RT, AF..RT, TAE..RT 4-pole contactors
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
70 mm
Product Net Depth / Length
108 mm
Product Net Height
110 mm
Product Net Weight
1.23 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Auxiliary Circuit 690 V | Main Circuit 690 V
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 100 A | (690 V) 55 °C 85 A | (690 V) 70 °C 70 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 50 A | (440 V) 55 °C 45 A | (500 V) 55 °C 45 A | (690 V) 55 °C 35 A | (380 / 400 V) 55 °C 50 A | (220 / 230 / 240 V) 55 °C 53 A
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 6 A | (220 / 240 V) 4 A
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 100 A | (110 V) 2 Poles in Series, 55 °C 85 A | (110 V) 2 Poles in Series, 70 °C 70 A | (110 V) 3 Poles in Series, 40 °C 100 A | (110 V) 3 Poles in Series, 55 °C 85 A | (110 V) 3 Poles in Series, 70 °C 70 A | (220 V) 3 Poles in Series, 40 °C 100 A | (220 V) 3 Poles in Series, 55 °C 85 A | (220 V) 3 Poles in Series, 70 °C 70 A | (72 V) 1-Pole, 40 °C 100 A | (72 V) 1-Pole, 55 °C 85 A | (72 V) 1-Pole, 70 °C 70 A | (72 V) 2 Poles in Series, 40 °C 100 A | (72 V) 2 Poles in Series, 55 °C 85 A | (72 V) 2 Poles in Series, 70 °C 70 A | (72 V) 3 Poles in Series, 40 °C 100 A | (72 V) 3 Poles in Series, 55 °C 85 A | (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 100 A | (110 V) 2 Poles in Series, 55 °C 85 A | (110 V) 2 Poles in Series, 70 °C 70 A | (110 V) 3 Poles in Series, 40 °C 100 A | (110 V) 3 Poles in Series, 55 °C 85 A | (110 V) 3 Poles in Series, 70 °C 70 A | (220 V) 3 Poles in Series, 40 °C 100 A | (220 V) 3 Poles in Series, 55 °C 85 A | (220 V) 3 Poles in Series, 70 °C 70 A | (72 V) 1-Pole, 40 °C 100 A | (72 V) 1-Pole, 55 °C 85 A | (72 V) 1-Pole, 70 °C 70 A | (72 V) 2 Poles in Series, 40 °C 100 A | (72 V) 2 Poles in Series, 55 °C 85 A | (72 V) 2 Poles in Series, 70 °C 70 A | (72 V) 3 Poles in Series, 40 °C 100 A | (72 V) 3 Poles in Series, 55 °C 85 A | (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 80 A | (110 V) 2 Poles in Series, 55 °C 80 A | (110 V) 2 Poles in Series, 70 °C 70 A | (110 V) 3 Poles in Series, 40 °C 100 A | (110 V) 3 Poles in Series, 55 °C 85 A | (110 V) 3 Poles in Series, 70 °C 70 A | (220 V) 3 Poles in Series, 40 °C 50 A | (220 V) 3 Poles in Series, 55 °C 50 A | (220 V) 3 Poles in Series, 70 °C 50 A | (72 V) 1-Pole, 40 °C 50 A | (72 V) 1-Pole, 55 °C 50 A | (72 V) 1-Pole, 70 °C 50 A | (72 V) 2 Poles in Series, 40 °C 100 A | (72 V) 2 Poles in Series, 55 °C 85 A | (72 V) 2 Poles in Series, 70 °C 70 A | (72 V) 3 Poles in Series, 40 °C 100 A | (72 V) 3 Poles in Series, 55 °C 85 A | (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.30 A / 66 W | (250 V) 0.3 / 75 W
Rated Operational Power AC-3 (Pe)
(415 V) 25 kW | (440 V) 25 kW | (500 V) 30 kW | (690 V) 30 kW | (380 / 400 V) 22 kW | (220 / 230 / 240 V) 15 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A | for 0.1 s 140 A | for 1 s 100 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 1000 V | acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Control Circuit Voltage (Uc)
DC Operation 20 ... 60 V
Power Loss
at 6 A per Pole 0.1 W | at Rated Operating Conditions AC-1 per Pole 5 W | at Rated Operating Conditions AC-3 per Pole 1.3 W
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M6 screws placed diagonally
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type
Ring-Tongue Terminals
Product Name
Block Contactor
NEMA Size
2
Horsepower Rating NEMA
(115 V AC) Single Phase 3 Hp | (200 V AC) Three Phase 10 Hp | (230 V AC) Single Phase 7-1/2 Hp | (230 V AC) Three Phase 15 Hp | (460 V AC) Three Phase 25 Hp | (575 V AC) Three Phase 25 Hp
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 80 A
Horsepower Rating UL/CSA
(120 V AC) Single Phase 3 hp | (200 ... 208 V AC) Three Phase 15 Hp | (220 ... 240 V AC) Three Phase 20 Hp | (240 V AC) Single Phase 7-1/2 hp | (440 ... 480 V AC) Three Phase 40 Hp | (550 ... 600 V AC) Three Phase 50 Hp
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C | Close to Contactor without Thermal O/L Relay -40 ... 70 °C | Close to Contactor for Storage -60 ... +80 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CCC Certificate
CCC certificate for 3-pole and 4-pole AF45 to AF75 contactors with screw and ring tongue terminals
CQC Certificate
CQC Certificate, AC Contactor, AF45, AF50, AF63, AF75, Made in Bulgaria | CQC Certificate, Contactor, AF50, AF63, AF75, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF45, AF50, AF63, AF75, Made in Bulgaria | CCC Declaration of Conformity, Contactor, AF50, AF63, AF75, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity AF45 to A75 ..(RT) 3 and 4-pole contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AF45 to A75 ..(RT) 3 and 4-pole contactors
EAC Certificate
EAC_RU C-FR ME77 B01010
GOST Certificate
GOST_POCCFRME77B07175
KC Certificate
KC certificate AF50 3-pole contactors with screw for standard or Ring tongue ferrules
Package Level 1 Units
1 piece
Package Level 1 Width
140 mm
Package Level 1 Depth / Length
146 mm
Package Level 1 Height
96 mm
Package Level 1 Gross Weight
1.23 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature → Wide coil voltage range DC 20–60 V allows flexible integration with varying control circuits. Business Impact → This reduces mismatched control supplies, lowers spare parts inventory, and speeds up commissioning. Application → Ideal for manufacturers and process lines where local power quality varies or remote control feeds are used. Feature → IEC/EN 60947-4-1, UL 508, and CE certifications ensure global compliance. Business Impact → Procurement ease, fewer regulatory bottlenecks, and safer multisite deployments. Application → OEMs with international requirements and distributors serving global markets. Feature → 3-pole block design with 1 auxiliary NO and 1 NC contact. Business Impact → Expanded control logic and status signaling without increasing panel footprint. Application → Conveyor controls, pumps, and machine tools needing integrated signaling. Feature → DIN rail mounting with TH35-15 and TH75-25 options. Business Impact → Quick, drop-in installation and consistent mounting across enclosures. Application → New builds and retrofit panels in manufacturing lines and HVAC equipment. Feature → Low coil power loss of 0.1 W per pole and high insulation (Ui 1000 V, Uimp 8 kV). Business Impact → Lower operating temperatures, reduced cooling needs, and improved reliability. Application → High-duty cycles in demanding environments.
Get a Quick Quote for a ABB 1SBL357010R7211
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL357010R7211?
Enquire Now
FAQs
Mount the AF50 block contactor on standard DIN rails TH35-15 or TH75-25 and use ring-tongue terminals for coil and main terminals. Coil operates from DC 20–60 V, with three main contacts and one auxiliary contact. Ensure proper terminal torque and observe IP20 protection for coil and auxiliary terminals. This configuration supports quick panel integration and reliable coil operation even in variable supply conditions.
AC-3 ratings cover motor starting and switching at voltages up to 690 V, with typical Ie values around 50–53 A at 380–440–500 V and decreasing at higher voltages. DC-13 ratings (load in series with DC loads) include substantial currents at lower DC voltages, such as 110 V and 72 V configurations, with corresponding Ie depends on the exact pole configuration. Refer to the device table for exact current values at each voltage and temperature to ensure safe selection.
Yes, the 1SBL357010R7211 AF50 block contactor is designed for 690 V main circuits and provides 690 V auxiliary voltages as part of its control system. It supports broad temperature ranges and a high Ui (insulation voltage) of 1000 V, making it suitable for HVAC and conveyor applications where reliable motor switching and voltage tolerance are essential. Ensure adherence to the applicable standards and proper wiring practices for your specific installation.
The device complies with IEC/EN 60947-4-1 and 60947-5-1 standards, UL 508, CSA C22.2 No. 14, CE (EU), and UKCA markings, plus EAC, GOST, and KC where applicable. These certifications support global product deployment, simplify cross-border procurement, and help satisfy regulatory requirements for industrial automation equipment in many regions. Always verify the certifications applicable to your country and installation site to ensure full conformity.
Benefits include low power loss (0.1 W per pole under test conditions), reducing heat generation and cooling needs. The wide DC coil range minimizes spare parts and improves compatibility with varying control electronics. Its robust insulation (Ui 1000 V, Uimp 8 kV), compact DIN-rail mounting, and reliable AC-3/DC-3 performance translate to longer motor life, reduced downtime, and lower total cost of ownership in repetitive switching environments.
