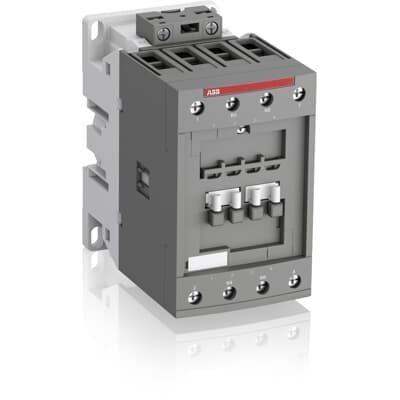

ABB 1SBL367561R1300 Block Contactor - 4P 690V AC-3, UL/CSA certified
Part Number: 1SBL367561R1300
Quick Summary
ABB AF52B block contactor is a four-pole motor controller optimized for 690 V networks and AC-1/AC-3 operation in industrial equipment. This design targets reliability in environments with voltage variation and unstable networks, reducing panel energy waste. Key certifications include IEC/EN 60947-1 and 60947-4-1, UL 60335-2-40, and CSA equivalents, underscoring safety and conformity. By leveraging wide control voltage range and optional accessory blocks, the solution scales with system complexity while delivering measurable gains in uptime and wiring efficiency for factories, conveyors, and rolling-stock applications.
Product Information
Extended Description
1SBL367561R1300 ABB: The AF52B-22-00-13 is a 4 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 22 kW / 400 V AC (AC-3) and switching power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Motor control and protection for Rolling stock application_PDF
Instructions and Manuals
Installation instructions AF(C)40(B)...80(B)-40/22 Contactors, CA4, CAL4, CAT4, CC4, LDC4 Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
70 mm
Product Net Depth / Length
113.5 mm
Product Net Height
125.5 mm
Product Net Weight
1.16 kg
Number of Main Contacts NO
2
Number of Main Contacts NC
2
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
4P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 690 V
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 100 A | (690 V) 60 °C 80 A | (690 V) 70 °C 70 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 53 A | (440 V) 60 °C 53 A | (500 V) 60 °C 45 A | (690 V) 60 °C 35 A | (380 / 400 V) 60 °C 53 A | (220 / 230 / 240 V) 60 °C 53 A
Rated Operational Power AC-3 (Pe)
(415 V) 30 kW | (440 V) 30 kW | (500 V) 30 kW | (690 V) 30 kW | (380 / 400 V) 22 kW | (220 / 230 / 240 V) 15 kW
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Average Holding Value 50 / 60 Hz 4 V·A | Average Holding Value DC 2 W
Terminal Type
Screw Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
Ambient Air Temperature
Close to Contactor for Storage -60 ... +80 °C | Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible
Without Derating 3000 m
Shock and Vibration Withstand acc. to IEC 61373
Category 1, Class B
Pollution Degree
3
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
End Of Life Disassembling Instructions
End of life instruction AF(S)40/52/65/80/96(B)(RT) Contactors
Environmental Product Declaration - EPD
Environmental Product Declaration AF(S)40(B), AF(S)52(B), AF(S)65(B) (FR)
Sustainable Material Content in Packaging (wt. %)
FSC Recycled Paper - 94.6 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 28.2 %
A2L Certificate – UL
UL-US Certificate of Compliance AF40 ... AF96 3-pole contactors - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers | UL-CA Certificate of Compliance AF40 ... AF96 3-pole contactors - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers
CB Certificate
CB Certificate AF(S)40(B), (S)AF52(B), AF(S)65(B) 3 and 4-pole contactors
Declaration of Conformity - CE
EU Declaration of Conformity AF09 ... AF38(Z)B..(K), AF40B ... AF96B 3 and 4-pole contactors
UL Certificate
UL-US Certificate of Compliance AF40(B)...80(B) 4-pole contactors | UL-CA Certificate of Compliance AF40(B)...80(B) 4-pole contactors
Package Level 1 Units
box 1 piece
Package Level 1 Width
150 mm
Package Level 1 Depth / Length
150 mm
Package Level 1 Height
103 mm
Package Level 1 Gross Weight
1.27 kg
Package Level 1 EAN
3471523025103
Package Level 2 Units
box 8 piece
Package Level 2 Width
250 mm
Package Level 2 Depth / Length
300 mm
Package Level 2 Height
300 mm
Package Level 2 Gross Weight
10.16 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature → Business Impact → Application: The AF52B-22-00-13 is a four-pole block contactor with screw terminals, rated for main circuit voltage up to 690 V and a robust AC-1 current of 100 A (40 °C). This combination enables compact motor control for demanding loads up to 30 kW at higher voltages, reducing panel size and wiring complexity in industrial drives and rolling stock systems. Application: ideal for pumps, fans, conveyors, and hoists where reliable switching and easy field extensions via auxiliary blocks are required. Feature → Business Impact → Application: Wide control circuit range of 100–250 V AC or DC supports voltage variation without nuisance tripping, lowering control panel energy consumption and improving network stability. Application: suitable for facilities with fluctuating supply conditions and remote control stations.Feature → Business Impact → Application: Built-in surge protection protects control circuits and prolongs coil life, reducing maintenance intervals and downtime. Application: critical in environments with sporadic transients or long cable runs to the control cabinet.Feature → Business Impact → Application: Compact footprint (70 mm width, 113.5 mm depth, 125.5 mm height) and screw-terminal connections simplify installation, wiring hygiene, and future upgrades. Application: installation in space-constrained control panels and retrofits where existing AF technology is favored. Feature → Business Impact → Application: Modular with add-on auxiliary contact blocks and a broad accessories ecosystem, enabling scalable control logic without redesign. Application: industrial automation projects requiring staged signaling or multi-axis control.Feature → Business Impact → Application: RoHS/REACH compliance and ECO-certified materials minimize environmental impact and simplify regulatory audits. Application: procurement programs emphasizing sustainable sourcing and end-of-life planning for electrical assemblies.
Get a Quick Quote for a ABB 1SBL367561R1300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL367561R1300?
Enquire Now
FAQs
This four-pole block contactor uses screw terminals for secure, vibration-resistant connections and a compact 70 mm width. It fits standard control panels and aligns with typical DIN rail layouts when combined with add-on auxiliary blocks. Ensure conductor sizes meet terminal torque specs and observe correct polarity for coil drive to avoid nuisance trips.
At 690 V, the AF52B-22-00-13 provides AC-1 current ratings up to 100 A at 40 °C, with reduced ratings at higher temperatures (e.g., 80 A at 60 °C and 70 A at 70 °C). For AC-3, the device handles up to 53 A across several voltages (including 415–690 V), delivering up to 30 kW contactor power at 690 V in line with IEC/EN 60947-4-1.
Yes. The AF52B-22-00-13 features built-in surge protection for control circuits and supports a wide coil control range of 100–250 V for both AC and DC operation. This resilience reduces susceptibility to supply variations and improves reliable switching in unstable networks.
The device complies with IEC/EN 60947-1 and IEC/EN 60947-4-1, UL 60335-2-40 family requirements, and CSA equivalents. It is RoHS and REACH compliant, with UL-US and UL-CA certificates for AF40–AF96 equivalents, making it suitable for global electrical safety and performance standards.
The contactor has a net width of 70 mm, depth of 113.5 mm, and height of 125.5 mm, with a net weight of 1.16 kg. These dimensions support tight panel layouts and straightforward replacement in retrofits or new builds, while screw terminals simplify termination and maintenance tasks.
