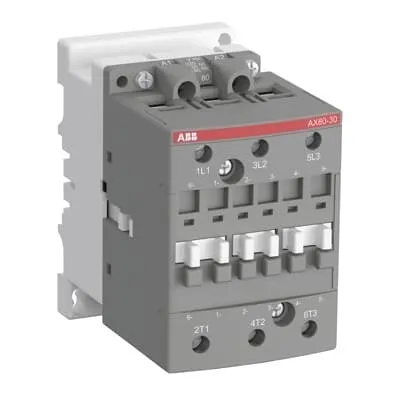

ABB 1SBL371074R7500 Block Contactor - UL/CE 690V
Part Number: 1SBL371074R7500
Quick Summary
ABB 1SBL371074R7500 Block Contactor is designed to control 3-phase motors in industrial power circuits up to 690 V. It addresses downtime and wiring errors by offering a robust coil operation and a compact, screw-terminal design for rapid, error-free installation. The product carries CE and UL/CSA certifications, plus CB and CCC attestations, supporting compliance across European, North American, and Chinese markets. As a three-pole block contactor rated for AC-1 and AC-3 loads, it enables reliable motor control with predictable inrush handling and easy field upgrades. For panel builders and OEMs, the combination of compact footprint, modular accessories, and global certifications translates into faster commissioning and reduced total cost of ownership.
Product Information
Extended Description
1SBL371074R7500 ABB: AX50...AX80 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC. These contactors are of the block type design with: – 3 main poles – control circuit: AC operated – add-on auxiliary contact blocks (optional) for side mounting and a wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100187L0203
Instructions and Manuals
AX 50~80A instructions
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
82 mm
Product Net Depth / Length
110 mm
Product Net Height
108 mm
Product Net Weight
1.05 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Rated Operational Voltage
Auxiliary Circuit 690 V | Main Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz | Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 125 A
Rated Operational Current AC-1 (Ie)
(220 / 240 V) 55 °C 95 A | (690 V) 40 °C 115 A | (690 V) 70 °C 80 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 65 A | (440 V) 55 °C 65 A | (500 V) 55 °C 55 A | (690 V) 55 °C 43 A | (380 / 400 V) 55 °C 65 A | (220 / 230 / 240 V) 55 °C 65 A
Rated Operational Power AC-3 (Pe)
(415 V) 37 kW | (440 V) 37 kW | (500 V) 37 kW | (690 V) 37 kW | (380 / 400 V) 30 kW | (220 / 230 / 240 V) 18.5 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 135 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-1) 600 cycles per hour | (AC-3) 600 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 200 V | 60 Hz 200 ... 220 V
Power Loss
at Rated Operating Conditions AC-1 per Pole 6.5 W | at Rated Operating Conditions AC-3 per Pole 1.5 W
Operate Time
Between Coil De-energization and NC Contact Closing 7 ... 14 ms | Between Coil De-energization and NO Contact Opening 4 ... 11 ms | Between Coil Energization and NC Contact Opening 7 ... 22 ms | Between Coil Energization and NO Contact Closing 8 ... 27 ms
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Tightening Torque
Control Circuit 1 N·m | Main Circuit 4 N·m
Terminal Type
Screw Terminals
Product Name
Block Contactor
General Use Rating UL/CSA
(600 V AC) 90 A
Horsepower Rating UL/CSA
(120 V AC) Single Phase 5 hp | (200 ... 208 V AC) Three Phase 20 hp | (220 ... 240 V AC) Three Phase 25 hp | (240 V AC) Single Phase 10 hp | (440 ... 480 V AC) Three Phase 60 hp | (550 ... 600 V AC) Three Phase 75 hp
Tightening Torque UL/CSA
Auxiliary Circuit 9 in·lb | Control Circuit 9 in·lb | Main Circuit 35 in·lb
Full Load Amps Motor Use
(120 V AC) Single Phase 56 A | (200 ... 208 V AC) Three Phase 62.1 A | (220 ... 240 V AC) Three Phase 68 A | (240 V AC) Single Phase 50 A | (440 ... 480 V AC) Three Phase 77 A | (550 ... 600 V AC) Three Phase 77 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C | Close to Contactor without Thermal O/L Relay -40 ... 70 °C | Close to Contactor for Storage -60 ... +80 °C | Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand
acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
AX 50~80A CB certification
CCC Certificate
9AKK107492A7091
CCS Certificate
CCS Certificate of AFC09 ... AFC96 , AX09-AX370 contactors
CQC Certificate
CQC Certificate, Contactor, AX50, AX65, AX80, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AX50, AX65, AX80, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity AX06, AX09, AX12, AX18, AX25, AX32, AX40, AX50, AX65, AX80 3-pole Contactors
UL Certificate
UL Certificate of Compliance – AX06, AX09, AX12, AX18, AX25
Package Level 1 Units
box 1 piece
Package Level 1 Width
102 mm
Package Level 1 Depth / Length
143 mm
Package Level 1 Height
152 mm
Package Level 1 Gross Weight
1.16 kg
Package Level 1 EAN
3471522405753
Package Level 2 Units
10 piece
Package Level 2 Width
240 mm
Package Level 2 Depth / Length
295 mm
Package Level 2 Height
145 mm
Package Level 2 Gross Weight
11.6 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: Three main NO contacts in a compact block design with AC-operated control. Business Impact: Simplifies motor control wiring and improves starting reliability for demanding loads. Application: Ideal for 3-phase motors in conveyors, pumps, and fans up to 690 V. Feature: Coil voltage 200 V for 50/60 Hz operation. Business Impact: Directly compatible with standard control circuits, reducing interface components and potential failure points. Application: Widely used in industrial control panels and OEM equipment with 200 V control supplies. Feature: Global certifications including CE, UL/CSA, CB, and CCC. Business Impact: Accelerates market access and regulatory approval across multiple regions. Application: Panel builders shipping internationally and OEMs with multi-region product lines. Feature: Screw terminals with IP20 protection and defined tightening torques. Business Impact: Secure, maintenance-friendly wiring and long-term reliability in cabinet environments. Application: Cabinet-mounted drives and starter assemblies in manufacturing lines. Feature: 82 mm width, 110 mm depth, 108 mm height, weight 1.05 kg. Business Impact: Compact footprint saves panel space and enables easier installation, retrofit, or replacement. Application: Space-constrained control cabinets and modular machine layouts. Feature: Rated operational currents and power for AC-1 and AC-3 (Ie and Pe). Business Impact: Predictable performance for soft-starter and motor-load switching reduces downtime and energy waste. Application: General-purpose motor control across 415–690 V systems with high inrush handling.
Get a Quick Quote for a ABB 1SBL371074R7500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL371074R7500?
Enquire Now
FAQs
The 1SBL371074R7500 uses screw terminals and a compact 82x110x108 mm footprint, designed for standard control cabinets. It supports 3-pole configurations with IP20 protection, making it compatible with typical panel layouts and DIN-rail or surface-mounted enclosures when mounted side-by-side with add-on auxiliary blocks as needed.
For AC-1 operation, Ie is 95 A at 220/240 V, increasing to 115 A at 690 V (40 °C) and 80 A at 690 V (70 °C). For AC-3, Ie ranges to 65 A at 415–440 V, and 43 A at 690 V (55 °C). Pe values follow suit: 37 kW at 415–690 V, 30 kW at 380/400 V, and 18.5 kW at 220/230/240 V.
Yes. With 3 NO main contacts, 690 V insulation, and a robust mechanical design, it handles regular AC-3 motor switching and offers predictable inrush handling. The rated short-time withstand current (Icw) supports short transients, making it a reliable choice for conveyors, pumps, and fans in continuous or frequent cycling applications.
The product carries CE and UL/CSA certifications, plus CB and CCC attestations, enabling compliance in Europe, North America, and China. RoHS, REACH, and WEEE declarations further support lifecycle and environmental compliance across global supply chains.
With screw terminals and IP20 protection, maintenance is straightforward and field serviceable. The compact footprint reduces cabinet space, while low coil power losses (6.5 W AC-1, 1.5 W AC-3 per pole) lower energy consumption. Global certifications and modular accessories enable faster commissioning, lower wiring costs, and shorter time-to-market for multi-region deployments.
