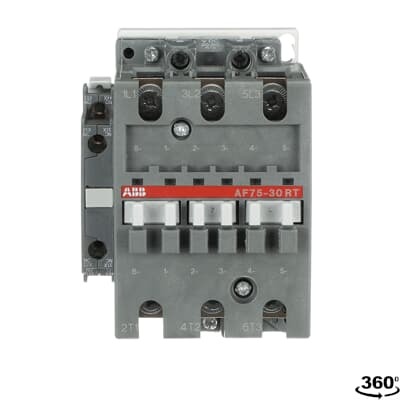

ABB 1SBL417010R7211 Block Contactor - UL 508 Certified
Part Number: 1SBL417010R7211
Quick Summary
ABB 1SBL417010R7211 Block Contactor is designed to reliably control 3-phase motors in industrial power circuits up to 690 V AC. In real-world environments, fluctuations in control voltage can cause nuisance trips and degraded performance; this device addresses that by featuring a wide, user-friendly coil interface and robust contacts. The AF75 family supports AC and DC control with voltages ranging from 20 to 60 V DC, enabling consistent operation across global mains variations. Compliance with IEC/EN 60947-1 and UL 508, along with CE and UKCA declarations, provides confidence in safety and interoperability. This model is optimized for high-demand automation, offering compact footprint and easy integration with add-on auxiliary blocks for scalable control solutions.
Product Information
Extended Description
1SBL417010R7211 ABB: AF75 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits... The AF... contactors are fitted with an electronic coil interface which accepts a wide control voltage range, on AC 50/60 Hz or DC supplies. The same contactor can accept various supply voltages according to the different countries where the electrical equipment will be installed, or some fluctuation in the control voltage due to the local supply or network. The AF... contactors are also fully suitable for operation in AC or DC control circuit liable to voltage interruptions or voltage dip risks. Advantages: - Wide voltage range, e.g. 100 ... 250 V AC and DC - Can manage large voltage variations - Reduced power consumption - Very distinct closing and opening - Noise free - Can withstand voltage interruptions or voltage dips in the control supply (≤ 20 ms). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536490065
Instructions and Manuals
Operating Instructions A..RT, AE..RT, AF..RT, TAE..RT 4-pole contactors
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
82 mm
Product Net Depth / Length
108 mm
Product Net Height
110 mm
Product Net Weight
1.23 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 125 A | (690 V) 55 °C 105 A | (690 V) 70 °C 85 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 72 A | (440 V) 55 °C 70 A | (500 V) 55 °C 65 A | (690 V) 55 °C 46 A | (380 / 400 V) 55 °C 75 A | (220 / 230 / 240 V) 55 °C 75 A
Rated Operational Power AC-3 (Pe)
(415 V) 40 kW | (440 V) 40 kW | (500 V) 45 kW | (690 V) 40 kW | (380 / 400 V) 37 kW | (220 / 230 / 240 V) 22 kW
Rated Control Circuit Voltage (Uc)
DC Operation 20 ... 60 V
Terminal Type
Ring-Tongue Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CCC Certificate
CCC certificate for 3-pole and 4-pole AF45 to AF75 contactors with screw and ring tongue terminals
CQC Certificate
CQC Certificate, AC Contactor, AF45, AF50, AF63, AF75, Made in Bulgaria | CQC Certificate, Contactor, AF50, AF63, AF75, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF45, AF50, AF63, AF75, Made in Bulgaria | CCC Declaration of Conformity, Contactor, AF50, AF63, AF75, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity AF45 to A75 ..(RT) 3 and 4-pole contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AF45 to A75 ..(RT) 3 and 4-pole contactors
GOST Certificate
GOST_POCCFRME77B07175
KC Certificate
KC Certificate AF63, AF75 3-pole contactors with screw for standard or Ring tongue ferrules
Package Level 1 Units
1 piece
Package Level 1 Width
140 mm
Package Level 1 Depth / Length
146 mm
Package Level 1 Height
96 mm
Package Level 1 Gross Weight
1.23 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature → Business Impact → Application: The AF75 series employs an electronic coil interface that accepts a broad control voltage range, reducing the risk of misfiring during voltage dips and enabling smoother startup sequences for 3P motors in packaging lines or conveyors. This translates to lower downtime and improved overall equipment effectiveness (OEE) in continuous production environments. Application: Standalone motor control for machine rows or line-start applications where supply fluctuations are common. Feature → Business Impact → Application: 3 main NO contacts and a 3P pole arrangement provide straightforward wiring for typical motor starters, minimizing panel complexity and enabling rapid deployment in retrofit projects or new line builds. Application: Industrial plants with compact control panels needing reliable, space-efficient solutions. Feature → Business Impact → Application: Ring-tongue terminals and durable enclosure support secure, vibration-resistant connections, reducing maintenance time and tightening torque-related failures in harsh manufacturing environments. Application: Heavy-duty textile, metalworking, or material handling equipment. Feature → Business Impact → Application: Wide temperature and voltage tolerance maintain performance across 40 °C to 70 °C environments while delivering predictable AC-3 ratings, supporting long equipment life and predictable maintenance cycles. Application: Food & beverage packaging lines and material handling systems. Feature → Business Impact → Application: Compliance with IEC/EN 60947-4-1, UL 508, and CSA C22.2 No. 14 ensures regulatory alignment and simplifies procurement across regions, speeding up project timelines. Application: Global automation projects requiring certified components. Feature → Business Impact → Application: The AF75 series supports add-on auxiliary contact blocks to scale control complexity without replacing the core module, enabling future-ready configurations as automation needs evolve. Application: Start-stop control for multi-motor drives and bypass schemes in packaging, printing, and robotics integrations.
Get a Quick Quote for a ABB 1SBL417010R7211
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL417010R7211?
Enquire Now
FAQs
This 3-pole device uses Ring-Tongue Terminals and has a net width of 82 mm, depth of 108 mm, and height of 110 mm. It supports front and side add-on auxiliary contact blocks and weighs about 1.23 kg, making it a compact, panel-friendly choice for standard control cabinets.
Rated for AC-3 operation up to 75 A at 380–690 V, with a DC control circuit voltage of 20–60 V. Main contacts are NO (3), NC zero, and the coil interface is designed to tolerate supply fluctuations while maintaining reliable switching.
Ideal for 3-phase motor control, bypass switching, capacitor switching, lighting, and DC power circuits. It supports high-voltage AC loads and DC control, making it versatile for conveyors, machine tools, and automation lines that require robust, certified contactor performance.
The product aligns with IEC/EN 60947-1 and 60947-4-1, UL 508, CSA C22.2 No. 14, and CE/UKCA declarations. This ensures regulatory compliance across many regions and simplifies cross-border procurement.
Low coil power consumption, evidence of noise-free operation, and tolerance to voltage interruptions (≤20 ms) reduce downtime and energy usage. The modular AF75 design also enables easy integration with auxiliary blocks, supporting scalable control and a faster return on investment through extended equipment life.
