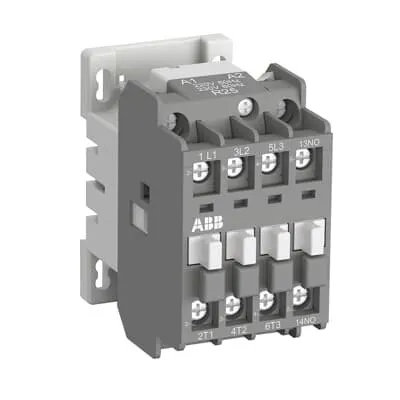

ABB 1SBL921077M2510 Block Contactor - RoHS & REACH
Part Number: 1SBL921077M2510
Quick Summary
ABB 1SBL921077M2510 is a block contactor designed for reliable 3-phase motor control in industrial environments. Field engineers often grapple with motor stalls, heat buildup, and wiring complexity in panel installations. This unit carries RoHS and REACH declarations, plus TSCA, and it holds CQC and CCC certifications, supporting regulatory compliance across global sites. By combining a block design with three main poles and a built-in auxiliary contact, it simplifies wiring and reduces panel footprint while delivering dependable performance for motor control, HVAC applications, conveyors, and machine tools.
Product Information
Extended Description
1SBL921077M2510 ABB: A2X18 … A2X25 contactors are designed especially for 3-phase motors
Features
- Block type design
- 3 main poles and 1 built-in auxiliary contact
- AC operated control circuit
- Accessories available
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Instructions and Manuals
1SBB902609D3001
Product Net Width
325 mm
Product Net Depth / Length
255 mm
Product Net Height
175 mm
Product Net Weight
31.35 kg
Power Loss
at Rated Operating Conditions AC-1 per Pole 1.1 W
Product Name
Block Contactor
Maximum Operating Altitude Permissible
Without Derating 3000 m
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE Category
Product Not in WEEE Scope
CQC Certificate
CQC Certificate, Contactor, A2X06,A2X09,A2X12,A2X18,A2X25, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, A2X06,A2X09,A2X12,A2X18,A2X25, Made in China
Package Level 1 Units
1 piece
Package Level 1 Width
255 mm
Package Level 1 Depth / Length
325 mm
Package Level 1 Height
175 mm
Package Level 1 Gross Weight
12.4 kg
Package Level 1 EAN
3471523016866
Package Level 2 Units
1 piece
Package Level 2 Width
255 mm
Package Level 2 Depth / Length
325 mm
Package Level 2 Height
175 mm
Package Level 2 Gross Weight
12.4 kg
Object Classification Code
Q
ETIM 7
EC000196 - Contactor relay
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: Block design with three main poles and one built-in auxiliary contact → Business Impact: Simplified wiring and robust switching reduce panel complexity and maintenance → Application: Ideal for 3-phase motor control in automated lines and machine tools. Feature: AC operated control circuit → Business Impact: Seamless integration with standard control systems and drives, lowering installation time → Application: Direct-coil energization from 220–230V AC in 50/60 Hz environments. Feature: Power loss of 1.1 W per pole → Business Impact: Lower heat generation improves panel cooling and energy efficiency → Application: Suitable for continuous AC-1 duty in energy-conscious plants. Feature: Maximum operating altitude 3000 m without derating → Business Impact: Reliable operation in high-altitude facilities, reducing design constraints → Application: Mining, processing, and mountainous fabrication sites. Feature: Regulatory compliance (RoHS, REACH, TSCA) and certifications (CQC, CCC) → Business Impact: Regulatory risk reduction and broader market acceptance → Application: Global manufacturing and export-ready installations. Feature: Detailed dimensions and weight (325 mm W x 255 mm D x 175 mm H; 31.35 kg) → Business Impact: Transparent space planning and panel fitment → Application: Tight control panels and standardized enclosures. Feature: 1 built-in auxiliary contact and accessories availability → Business Impact: Expanded control logic options and easier retrofits → Application: Interlocks, status signaling, and safe-start configurations.
Get a Quick Quote for a ABB 1SBL921077M2510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL921077M2510?
Enquire Now
FAQs
Wire the three input lines to L1, L2, and L3 and the corresponding loads to T1, T2, and T3. Use the built-in auxiliary contact for interlock or signaling as needed, and energize the coil with 220–230V AC at 50/60 Hz. The three-pole design simplifies wiring and improves clearance in compact panels.
The coil power loss is 1.1 W per pole under rated operating conditions (AC-1). This low loss helps reduce heat generation inside control panels, improving reliability and allowing more comfortable thermal margins in dense assemblies.
Yes. The product is specified for a maximum operating altitude of 3000 meters without derating, making it suitable for facilities at high elevations. Plan for adequate cooling and airflow, especially in hot environments, to maintain performance.
The unit is RoHS and REACH compliant, with TSCA declarations. It also carries CQC certificates and CCC declarations of conformity, and aligns with WEEE guidance. These certifications support global manufacturing and export compliance.
Benefits include reduced wiring complexity thanks to the built-in auxiliary contact, lower panel heat from 1.1 W per pole, and robust three-pole switching for long motor life. The RoHS/REACH/TSCA compliance and established certifications also minimize regulatory risk and support predictable maintenance cycles in automation projects.
