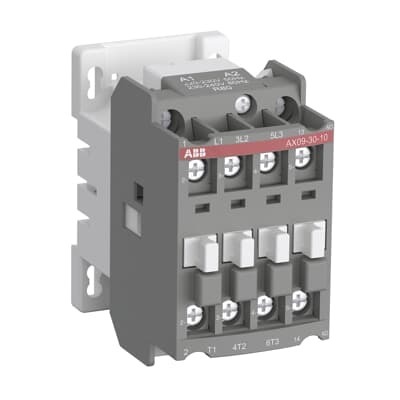

ABB 1SBL931074R8110 Block Contactor - UL Listed
Part Number: 1SBL931074R8110
Quick Summary
Block Contactor ABB AX series controls 3‑phase motors up to 690 V AC in industrial power circuits. Downtime and mis-wiring are common pain points that this design helps mitigate through a compact 44 mm width, screw terminals, and a 24 V coil that fits standard automation interfaces. Critical certifications such as CE, UL, and RoHS (with IEC 60947-4-1 compliance) provide regulatory assurance for global deployments. By combining robust performance with straightforward installation and accessible accessories, ABB AX contactors support scalable automation projects and preventive maintenance programs in environments like conveyors, pumps, and fans.
Product Information
Extended Description
1SBL931074R8110 ABB: AX09...AX25 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC. These contactors are of the block type design with: – 3 main poles and 1 built-in auxiliary contact – control circuit: AC operated – add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100187L0203
Instructions and Manuals
AX 06~40A instructions
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
44 mm
Product Net Depth / Length
74 mm
Product Net Height
76.3 mm
Product Net Weight
0.326 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
0
Rated Operational Voltage
Auxiliary Circuit 690 V | Main Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz | Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 32 A | acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-1 (Ie)
(220 / 240 V) 55 °C 27 A | (690 V) 40 °C 32 A | (690 V) 70 °C 23 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 25 A | (440 V) 55 °C 16 A | (500 V) 55 °C 14 A | (690 V) 55 °C 10 A | (380 / 400 V) 55 °C 25 A | (220 / 230 / 240 V) 55 °C 25 A
Rated Operational Current AC-15 (Ie)
(500 V) NC 2 | (500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (380 / 400 V) 3 A | (400 / 440 V) 2 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (110 V) 1.1 A / 121 W | (125 V) 1.1 A / 138 W | (220 V) 0.55 A / 121 W | (250 V) 0.55 A / 138 W | (400 V) 2.8 A / 134 W | (500 V) 2 A / 144 W
Rated Operational Power AC-3 (Pe)
(415 V) 11 kW | (440 V) 9 kW | (500 V) 9 kW | (690 V) 9 kW | (380 / 400 V) 11 kW | (220 / 230 / 240 V) 6.5 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 32 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 85 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 105 A | for 0.1 s 140 A | for 1 s 100 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-1) 600 cycles per hour | (AC-15) 1200 cycles per hour | (AC-3) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 24 V | 60 Hz 24 V
Power Loss
at Rated Operating Conditions AC-1 per Pole 1.2 W | at Rated Operating Conditions AC-3 per Pole 0.35 W
Operate Time
Between Coil De-energization and NC Contact Closing 9 ... 16 ms | Between Coil De-energization and NO Contact Opening 4 ... 11 ms | Between Coil Energization and NC Contact Opening 7 ... 21 ms | Between Coil Energization and NO Contact Closing 10 ... 26 ms
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque
Auxiliary Circuit 1 N·m | Control Circuit 1 N·m | Main Circuit 1.2 N·m
Terminal Type
Screw Terminals
Product Name
Block Contactor
General Use Rating UL/CSA
(600 V AC) 30 A
Horsepower Rating UL/CSA
(120 V AC) Single Phase 2 hp | (200 ... 208 V AC) Three Phase 7.5 hp | (220 ... 240 V AC) Three Phase 7.5 hp | (240 V AC) Single Phase 3 hp | (440 ... 480 V AC) Three Phase 15 hp | (550 ... 600 V AC) Three Phase 15 hp
Tightening Torque UL/CSA
Auxiliary Circuit 9 in·lb | Control Circuit 9 in·lb | Main Circuit 11 in·lb
Full Load Amps Motor Use
(120 V AC) Single Phase 24 A | (200 ... 208 V AC) Three Phase 25.3 A | (220 ... 240 V AC) Three Phase 22 A | (240 V AC) Single Phase 17 A | (440 ... 480 V AC) Three Phase 21 A | (550 ... 600 V AC) Three Phase 17 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C | Close to Contactor without Thermal O/L Relay -40 ... 70 °C | Close to Contactor for Storage -60 ... +80 °C | Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand
acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
AX 06~25A CB certification
CCC Certificate
9AKK107492A7089
CCS Certificate
CCS Certificate of AFC09 ... AFC96 , AX09-AX370 contactors
CQC Certificate
CQC Certificate, Contactor, AX06, AX09, AX12, AX18, AX25, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AX06, AX09, AX12, AX18, AX25, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity AX06, AX09, AX12, AX18, AX25, AX32, AX40, AX50, AX65, AX80 3-pole Contactors
UL Certificate
UL Certificate of Compliance – AX06, AX09, AX12, AX18, AX25
Package Level 1 Units
box 1 piece
Package Level 1 Width
48 mm
Package Level 1 Depth / Length
78 mm
Package Level 1 Height
79 mm
Package Level 1 Gross Weight
0.34 kg
Package Level 1 EAN
3471522397812
Package Level 2 Units
30 piece
Package Level 2 Width
240 mm
Package Level 2 Depth / Length
295 mm
Package Level 2 Height
145 mm
Package Level 2 Gross Weight
10.2 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
E-Number (Finland)
3707336
Feature: Three main NO contacts and one built-in auxiliary NO contact. Business Impact: Enables reliable control of 3‑phase motors and power circuits with a compact footprint. Application: Suitable for 3-pole motor control up to 690 V AC in automation panels. Feature: Control circuit voltage of 24 V (50/60 Hz). Business Impact: Compatible with standard PLC and safety interlock signals, reducing wiring complexity. Application: Widens integration with other ABB/third-party automation components. Feature: Rated operational current AC-1 up to 32 A at 690 V and AC-3 up to 10 A at 690 V. Business Impact: Delivers efficient motor starting and safe overload handling, lowering energy costs and downtime. Application: Pumps, fans, and conveyors with varying duty cycles. Feature: Rated insulation voltage Ui of 690 V and protection class IP20. Business Impact: Ensures safe operation in typical control panels and standard industrial environments. Application: Panel mounting in clean, non-hazardous areas with screw-terminal connections. Feature: Power loss 1.2 W per pole (AC-1) and 0.35 W per pole (AC-3). Business Impact: Improves panel heat management and reduces overall energy use. Application: Energy-conscious automation projects with frequent switching. Feature: Maximum mechanical switching frequency of 3600 cycles per hour and ambient temperature range -40 to 70 °C. Business Impact: Supports high-cycle applications with predictable life and reliable operation in varying plant conditions. Application: Conveyor lines, packaging systems, and process equipment. Feature: Built-in mounting flexibility with add-on auxiliary contact blocks and front/side mounting options. Business Impact: Simplifies installation and future expansion without changing the base device. Application: Modular control architectures in OEM and retrofit projects.
Get a Quick Quote for a ABB 1SBL931074R8110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL931074R8110?
Enquire Now
FAQs
Begin by mounting the unit in the panel, connect the main terminals for the three NO contacts, and attach the 24 V control coil leads with the appropriate terminal screws. Add the built-in auxiliary NO contact if required, then tighten all connections to the specified torques: main 1.2 N·m, auxiliary 1 N·m, control 1 N·m. Verify IEC 60947-4-1 wiring practices and ensure IP20 protection remains intact.
The device provides three main NO contacts and one auxiliary NO contact. It has Ui 690 V insulation and operates at 50/60 Hz with a 24 V coil. Ie AC-1 up to 32 A at 690 V (40 °C) and Ie AC-3 up to 10 A at 690 V (55 °C). It supports a short-time withstand current and has a maximum mechanical switching frequency of 3600 cycles per hour.
Yes, it is designed for up to 690 V and is rated for operation from -40 to 70 °C, with IP20 protection on terminals. It can be used in standard control panels and non-hazardous plant areas, and it supports 3000 m altitude without derating, making it suitable for rugged industrial settings.
This block contactor carries UL/CSA, CE, CCC, CQC, and RoHS declarations. These certifications help ensure product safety, electrical compatibility with global standards, and regulatory compliance during audits and procurement, facilitating cross-border deployments in automation projects.
With a low coil power loss of 0.35 W per pole (AC-3) and 1.2 W per pole (AC-1), operating efficiency improves heat management in cabinets. Mechanical switching up to 3600 cycles/hr and a compact footprint reduce wear and space. Regular inspection of torque values and contacts keeps the system reliable, accelerating ROI in motor-control applications.
