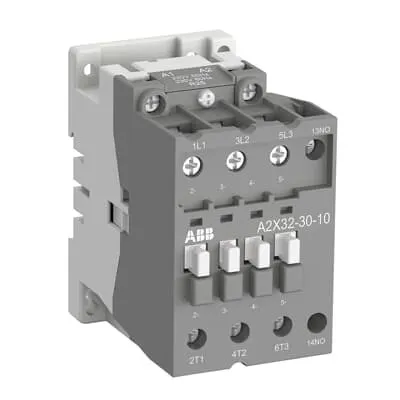

ABB 1SBL941077M2301 Block Contactor - CQC/CCC Certified
Part Number: 1SBL941077M2301
Quick Summary
1SBL941077M2301 block contactor is designed to safely switch 3-phase motors in manufacturing and packaging lines. When panel space is tight and heat is a concern, a compact, reliable device helps you avoid costly downtime. It carries CQC certificate and CCC declaration, plus RoHS and REACH compliance, supporting global deployments and risk-free sourcing. Beyond compliance, engineers gain energy efficiency, reduced panel cooling needs, and streamlined installation with built-in auxiliary contact and standard accessories. This combination also supports high-altitude operations up to 3000 m and accommodates 110 V control circuits in common automation architectures.
Product Information
Extended Description
1SBL941077M2301 ABB: A2X32 … A2X40 contactors are designed especially for 3-phase motors
Features
- Block type design
- 3 main poles and 1 built-in auxiliary contact
- AC operated control circuit
- Accessories available
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Instructions and Manuals
1SBB902617D3001
Product Net Width
295 mm
Product Net Depth / Length
245 mm
Product Net Height
195 mm
Product Net Weight
16.03 kg
Power Loss
at Rated Operating Conditions AC-1 per Pole 1.6 W
Product Name
Block Contactor
Maximum Operating Altitude Permissible
Without Derating 3000 m
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE Category
Product Not in WEEE Scope
CQC Certificate
CQC Certificate, Contactor, A2X32,A2X38,A2X40, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, A2X32,A2X38,A2X40, Made in China
Package Level 1 Units
1 piece
Package Level 1 Width
245 mm
Package Level 1 Depth / Length
295 mm
Package Level 1 Height
195 mm
Package Level 1 Gross Weight
12.48 kg
Package Level 1 EAN
3471523016910
Package Level 2 Units
1 piece
Package Level 2 Width
245 mm
Package Level 2 Depth / Length
295 mm
Package Level 2 Height
195 mm
Package Level 2 Gross Weight
12.48 kg
Object Classification Code
Q
ETIM 7
EC000196 - Contactor relay
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: Block type design delivering three main poles plus a built-in auxiliary contact. Business impact: simplifies wiring, reduces panel depth, and minimizes external interconnections, cutting install time and fault points. Application: ideal for hard-wiring 3-phase motors in machine tools, conveyors, and packaging lines. Feature: AC operated control circuit designed for 110V coil; Impact: integrates with standard PLC outputs and automation controllers, reducing interface complexity and wiring errors. Application: suitable for control panels in automated lines and packaging equipment. Feature: Power loss of 1.6 W per pole under rated AC-1 operation; Impact: lowers panel heat, improves energy efficiency, and extends service life in continuous operation. Application: motors in conveyors and material handling. Feature: Maximum operating altitude permissible up to 3000 m; Impact: enables deployment in high-altitude facilities and remote manufacturing sites. Application: plants in mining, mineral processing, or high-elevation regions. Feature: Comprehensive compliance: RoHS, REACH, TSCA; Impact: simplifies regulatory approvals and supplier qualification. Application: global procurement for regulated industries. Feature: Certifications (CQC certificate, CCC declaration) and robust dimensions; Impact: supplier credibility and installation planning. Application: integration in open panel layouts and with ABB-compatible accessories.
Get a Quick Quote for a ABB 1SBL941077M2301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL941077M2301?
Enquire Now
FAQs
The 1SBL941077M2301 uses a 110 V AC control coil. It is a block contactor with three main poles and a built‑in auxiliary contact, enabling simplified wiring in standard automation architectures. When wiring, connect the line-side to the three main contacts and the control side to the 110 V coil, using the built‑in auxiliary contact for feedback or interlocking as required.
Yes. The specification states maximum operating altitude permissible without derating up to 3000 meters, making it suitable for high-elevation facilities without additional adjustments. This helps ensure reliable motor control in remote or mountainous manufacturing sites, reducing the need for site-specific derating calculations.
The unit carries CQC Certificate and CCC Declaration of Conformity, and it includes RoHS and REACH declarations. It also references TSCA compliance and WEEE considerations. These certifications support regulatory approvals for global deployments and mitigate supplier-related compliance risk in regulated industries.
The product net dimensions are 295 mm (width) Ă— 245 mm (depth) Ă— 195 mm (height) with a net weight of 16.03 kg. Packaging information lists Level 1 and Level 2 units as 1 piece each, with dimensions 245 Ă— 295 Ă— 195 mm and a gross weight of 12.48 kg per package. Plan mounting space accordingly and account for this weight in panel design.
With three main poles plus a built-in auxiliary contact, 110 V coil control, and a measured power loss of 1.6 W per pole, the device minimizes heat in the control panel and reduces wiring complexity. The built-in accessories and compatibility with ABB standards streamline installation, spare-part availability, and maintenance, contributing to lower lifecycle costs in automated lines.
