ABB 1SBN010010R1001 Auxiliary Contact Block - IP20
Part Number: 1SBN010010R1001
Quick Summary
ABB 1SBN010010R1001 Auxiliary Contact Block is a front-mounted 1-pole accessory that extends contactor functionality in ABB A-series and N-series motor control panels. Engineers often face wiring complexity and space constraints in control cabinets, which can slow commissioning and increase error rates. This block provides a robust NC contact with screw terminals for reliable field wiring, while a compact footprint simplifies panel layouts. It carries CE and UKCA declarations, UL certification, and RoHS/REACH compliance, and features IP20 protection for safe operation in standard industrial environments. Compatible with a wide range of ABB contactors, it enables quick retrofits and reduces spare-part diversity.
Product Information
Extended Description

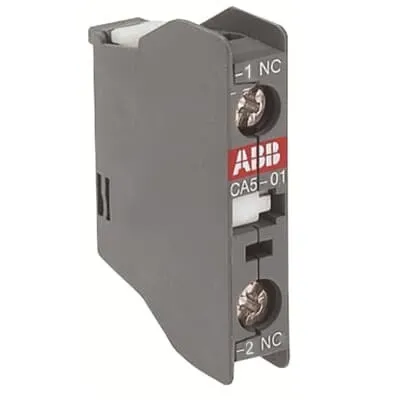

1SBN010010R1001 ABB: CA5-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Switzerland (CH)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
France (FR)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
France (FR)
Lead Time
14 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
France (FR)
Lead Time
1 day
Product Availability Class
Price is valid until the current stock lasts. This item belongs to a product which is in the obsolete phase and no longer available. Please contact local product sales in order to find a replacing product
Country of Origin
Czech Republic (CZ)
Configuration Only
No
Country of Origin
France (FR)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
Germany (DE)
Lead Time
999 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
10 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating Instruction CA5-.. 4-pole and 1-pole and CC5 1-pole aux. contact block
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
11 mm
Product Net Depth / Length
32.5 mm
Product Net Height
47 mm
Product Net Weight
0.014 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
1
Number of Poles
1P
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.30 A / 66 W | (250 V) 0.3 / 75 W
Short-Circuit Protective Devices
Auxiliary Circuit - gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency
1200 cycles per hour
Mechanical Durability
10 million | 3 million
Maximum Mechanical Switching Frequency
3600 cycles per hour
Minimum Switching Capacity
A9 ... A75 17 / 5 VLT4K | A95 ... A110 24 / 50 VLT4K
Power Loss
at Rated Operating Conditions per Pole 0.1 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type
Screw Terminals
Suitable For
AF45 | AF50 | AF63 | AF75 | AF95B | GAF75 | A9 | A12 | A16 | A26 | A30 | A40 | A45 | A50 | A63 | A75 | A95 | A110 | AL9 | AL9Z | AL12 | AL12Z | AL16 | AL16Z | AL26 | AL30 | AL40 | AE45 | AE50 | AE63 | AE75 | TAL9 | TAL12 | TAL16 | TAL26 | TAL30 | TAL40 | TAE45 | TAE50 | TAE75 | GA75 | GAE75 | UA16 | UA26 | UA30 | UA50 | UA63 | UA75 | UA95 | UA110 | UA16RA | UA26RA | UA30RA | UA50RA | UA63RA | UA75RA | UA95RA | UA110RA | UAF75RA | UAF95RA | UAF110RA | N22E | N31E | N40E | NL22E | NLZ22E | NL31E | NLZ31E | NL40E | NLZ40E | TNL22E | TNL31E | TNL40E
Product Name
Auxiliary Contact Block
Remarks
100
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA5-10, CA5-01 auxiliary contacts for A09...A75 range
CCC Certificate
CCC Certificate for CA5-10, CA5-01, CAL5 auxiliary contacts | CCC Certificate for CA5,CAL5 auxiliary contacts Made in China
CQC Certificate
CQC Certificate, Auxiliary contacts, CA5-**, CAL5-**, Made in Czech Republic | CQC Certificate, Auxiliary Contact, CA5, CAL5, Made in China
CSA Certificate
CSA_1033838
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CA5-**, CAL5-**, Made in Czech Republic | CCC Declaration of Conformity, Auxiliary Contact, CA5, CAL5, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
DNV GL Certificate
DNV_GL_TAE00001UT
EAC Certificate
EAC_RU C-FR ME77 B03391
GOST Certificate
GOST_POCCFRME77B07175
RINA Certificate
RINA Certificate for A9...A75 contactors
UL Certificate
UL Certificate of Compliance for CA5, CC5, CAL5, CCL5 auxiliary contact blocks, WB75 mechanical latching units
Package Level 1 Units
bag 10 piece
Package Level 1 Width
65 mm
Package Level 1 Depth / Length
129.5 mm
Package Level 1 Height
9.5 mm
Package Level 1 Gross Weight
0.14 kg
Package Level 1 EAN
3471522121011
Package Level 2 Units
box 1000 piece
Package Level 2 Width
300 mm
Package Level 2 Depth / Length
245 mm
Package Level 2 Height
308 mm
Package Level 2 Gross Weight
14 kg
Package Level 3 Units
12000 piece
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709187
