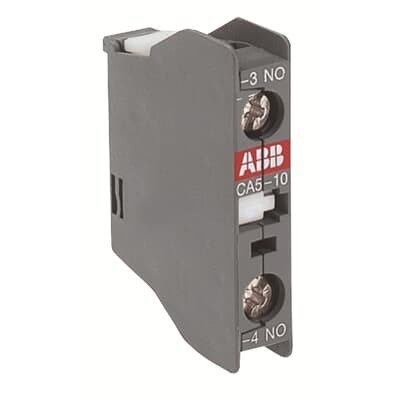

ABB 1SBN010010R1010 Auxiliary Contact Block - CE
Part Number: 1SBN010010R1010
Quick Summary
The ABB 1SBN010010R1010 Auxiliary Contact Block provides a compact front-mounted NO contact extension for ABB A-series contactors. It reduces wiring complexity and installation time by offering screw terminals in a small, standardized footprint. Key certifications, including CE and UL, along with RoHS compliance and IP20 protection on terminals, support global regulatory needs. Designed for A and N series contactors, it enables scalable, reliable panel control and easier maintenance planning. For engineers, it supports standardized safety signaling, traceable changes, and faster commissioning across machines and lines. Compact footprint helps maximize enclosure space and reduces panel heat load by minimizing additional wiring.
Product Information
Extended Description
1SBN010010R1010 ABB: CA5-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
France (FR)
Lead Time
76 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
France (FR)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
France (FR)
Lead Time
14 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
France (FR)
Lead Time
28 day
Product Availability Class
Price is valid until the current stock lasts. This item belongs to a product which is in the obsolete phase and no longer available. Please contact local product sales in order to find a replacing product
Country of Origin
China (CN)
Configuration Only
No
Country of Origin
France (FR)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
10 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating Instruction CA5-.. 4-pole and 1-pole and CC5 1-pole aux. contact block
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
11 mm
Product Net Depth / Length
32.5 mm
Product Net Height
47 mm
Product Net Weight
0.012 kg
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
0
Number of Poles
1P
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.30 A / 66 W | (250 V) 0.3 / 75 W
Short-Circuit Protective Devices
Auxiliary Circuit - gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency
1200 cycles per hour
Mechanical Durability
10 million | 3 million
Maximum Mechanical Switching Frequency
3600 cycles per hour
Minimum Switching Capacity
A9 ... A75 17 / 5 VLT4K | A95 ... A110 24 / 50 VLT4K
Power Loss
at Rated Operating Conditions per Pole 0.1 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type
Screw Terminals
Suitable For
AF45 | AF50 | AF63 | AF75 | AF95B | GAF75 | A9 | A12 | A16 | A26 | A30 | A40 | A45 | A50 | A63 | A75 | A95 | A110 | AL9 | AL9Z | AL12 | AL12Z | AL16 | AL16Z | AL26 | AL30 | AL40 | AE45 | AE50 | AE63 | AE75 | TAL9 | TAL12 | TAL16 | TAL26 | TAL30 | TAL40 | TAE45 | TAE50 | TAE75 | GA75 | GAE75 | UA16 | UA26 | UA30 | UA50 | UA63 | UA75 | UA95 | UA110 | UA16RA | UA26RA | UA30RA | UA50RA | UA63RA | UA75RA | UA95RA | UA110RA | UAF75RA | UAF95RA | UAF110RA | N22E | N31E | N40E | NL22E | NLZ22E | NL31E | NLZ31E | NL40E | NLZ40E | TNL22E | TNL31E | TNL40E
Product Name
Auxiliary Contact Block
Remarks
100
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA5-10, CA5-01 auxiliary contacts for A09...A75 range
CCC Certificate
CCC Certificate for CA5-10, CA5-01, CAL5 auxiliary contacts | CCC Certificate for CA5,CAL5 auxiliary contacts Made in China
CQC Certificate
CQC Certificate, Auxiliary contacts, CA5-**, CAL5-**, Made in Czech Republic | CQC Certificate, Auxiliary Contact, CA5, CAL5, Made in China
CSA Certificate
CSA_1033838
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CA5-**, CAL5-**, Made in Czech Republic | CCC Declaration of Conformity, Auxiliary Contact, CA5, CAL5, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
DNV GL Certificate
DNV_GL_TAE00001UT
EAC Certificate
EAC_RU C-FR ME77 B03391
GOST Certificate
GOST_POCCFRME77B07175
RINA Certificate
RINA Certificate for A9...A75 contactors
UL Certificate
UL Certificate of Compliance for CA5, CC5, CAL5, CCL5 auxiliary contact blocks, WB75 mechanical latching units
Package Level 1 Units
bag 10 piece
Package Level 1 Width
65 mm
Package Level 1 Depth / Length
129.5 mm
Package Level 1 Height
9.5 mm
Package Level 1 Gross Weight
0.143 kg
Package Level 1 EAN
3471522121004
Package Level 2 Units
box 1000 piece
Package Level 2 Width
300 mm
Package Level 2 Depth / Length
245 mm
Package Level 2 Height
308 mm
Package Level 2 Gross Weight
14.3 kg
Package Level 3 Units
12000 piece
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709186
Front-mounted NO contact block for A-series contactors provides reliable status signaling with minimal panel intrusion. This design reduces wiring complexity and speeds commissioning, translating to shorter project timelines and lower field labor costs on motor control panels. It is ideally applied to control circuits in conveyors, pumps, and automation sub-systems where quick auxiliary signaling is essential. Compatibility with A-series contactors and N-series relays ensures a single accessory fits multiple products, streamlining spare parts management and enabling consistent installation practices. It also supports easy retrofits and scalable protection schemes across existing machines. The screw terminal design and 690 V auxiliary circuit rating permit safe, durable connections, reducing the risk of loose contacts and ensuring reliable signaling in 50/60 Hz systems at 2 A AC-15. The block carries RoHS and REACH compliance plus CE and UL certifications, aiding procurement and regulatory audits. Its compact size and widespread stock availability translate to faster procurement, predictable lead times, and easier inventory planning in ABB ecosystems. Overall, this accessory improves panel density, maintenance efficiency, and system reliability in standard industrial environments.
Get a Quick Quote for a ABB 1SBN010010R1010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBN010010R1010?
Enquire Now
FAQs
The 1SBN010010R1010 is a front-mounted auxiliary contact block designed for ABB A-series contactors (and compatible N-series relays). Ensure power is isolated, align with the contactor’s accessory mounting interface, and secure the unit using the screw terminals to complete the signaling circuit. The accessory is compatible with the standard A-series footprint, supporting straightforward retrofits and scalable control schemes.
The unit provides one normally open contact (1 NO) across a single pole (1P) with a rated insulation up to 690 V and operation at 50/60 Hz. For switching signaling, it supports up to 2 A AC-15 (at various voltages) and uses screw terminals for secure wiring; its protection rating is IP20.
Yes. The block carries RoHS/REACH compliance and CE/UL certifications, along with related declarations of conformity. This supports regulatory compliance across global manufacturing and procurement environments.
It is designed as a compatible accessory for ABB A-series contactors and N-series contactor relays, enabling consistent signaling across a broad range of ABB motor starters and automation sub-systems.
Lead time is listed as 0 day, and the product is stocked at multiple ABB supplier warehouses, enabling rapid procurement and predictable delivery for project schedules.
