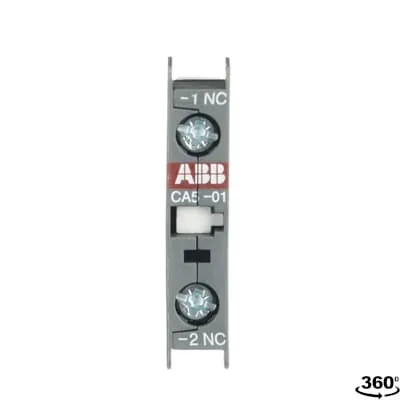

ABB 1SBN010014R1001 Auxiliary Contact Block - CE
Part Number: 1SBN010014R1001
Quick Summary
CA5-01AU Auxiliary Contact Block delivers a compact 1P NC interface for ABB A-series contactors in motor control. This solution reduces wiring complexity and speeds panel assembly by providing a front-mounted signaling point without adding bulk. It carries CE and UKCA conformity marks for European and UK markets, and IP20 protection for safe, industrial environments. Built to withstand daily panel duty, it uses screw-terminal connections for reliable maintenance and easy replacement in 1P 1NC configurations. With RoHS and REACH compliance, you can confidently integrate this block into modern control architectures while meeting sustainability standards.
Product Information
Extended Description
1SBN010014R1001 ABB: CA5-01-AU is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-01-AU is available with 1 N.C. instantaneous gold-flashed contact for standard industrial environments.
Minimum Order Quantity
10 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
FPTC407702P0002
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
11 mm
Product Net Depth / Length
32.5 mm
Product Net Height
47 mm
Product Net Weight
0.02 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
1
Number of Poles
1P
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (380 / 400 V) 3 A
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type
Screw Terminals
Suitable For
A9 | A12 | A16 | A26 | A30 | A40 | A45 | A50 | A63 | A75 | A95 | A110 | AL9 | AL12 | AL16 | AL26 | AL30 | AL40 | AE45 | AE50 | AE63 | AE75 | TAL9 | TAL12 | TAL16 | TAL26 | TAL30 | TAL40 | TAE45 | TAE50 | TAE75
Product Name
Auxiliary Contact Block
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC Certificate, Auxiliary contacts, CA5-**, CAL5-**, Made in Czech Republic | CQC Certificate, Auxiliary Contact, CA5, CAL5, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CA5-**, CAL5-**, Made in Czech Republic | CCC Declaration of Conformity, Auxiliary Contact, CA5, CAL5, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity (T)AL9 to 40 (RT) 3 and 4-pole contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity (T)AL9 to 40 (RT) 3 and 4-pole contactors
RINA Certificate
RINA Certificate for A9...A75 contactors
Package Level 1 Units
box 10 piece
Package Level 1 Width
65 mm
Package Level 1 Depth / Length
129.5 mm
Package Level 1 Height
40 mm
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
3471522199294
Package Level 2 Units
box 1000 piece
Package Level 2 Gross Weight
20 kg
Package Level 3 Units
12000 piece
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
Front-mounted design with front terminals enables quick mounting on ABB A-series contactors, reducing panel depth requirements and easing field retrofits. This translates to shorter wiring runs and faster commissioning, boosting uptime in motor control centers. The 1NC configuration provides clear signaling for interlocks and status feedback in conveyors, presses, and packaging lines, improving safety and process reliability. Rated for auxiliary service up to 690 V and 50/60 Hz, it supports diverse industrial applications while maintaining insulation integrity. Screw terminals simplify installation and maintenance, reducing labor time and ensuring robust connections in harsh environments. Compatibility with A9, A12, A16, A26, A30, A40, and other A-series variants enhances standardization across control panels, cutting stocking complexity and Total Cost of Ownership. RoHS/REACH compliance and CE/UKCA marks streamline procurement and regulatory readiness.
