ABB 1SBN010040R1104 Auxiliary Contact Block - 4P 690V
Part Number: 1SBN010040R1104
Quick Summary
ABB 1SBN010040R1104 Auxiliary Contact Block is a four-pole front-mounted accessory that provides NC signaling for motor starters in compact control panels. It helps reduce wiring complexity and panel footprint while improving signaling reliability. This block carries CE, UL/CSA and UKCA declarations with RoHS compliance, supporting safe operation across markets and ensuring regulatory alignment. Used with ABB A9 to A40 contactors, it integrates into scalable control architectures, enabling streamlined maintenance and clear status indication in industrial installations. In addition to the primary signaling function, it supports standardized installation practices and robust verification for high-volume manufacturing environments.
Product Information
Extended Description

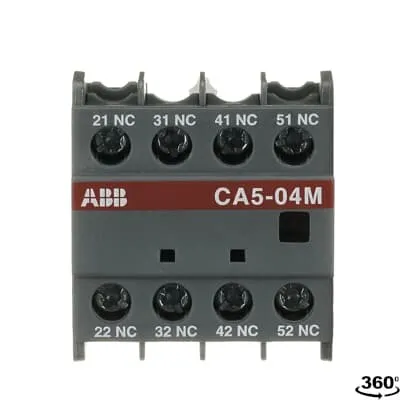

1SBN010040R1104 ABB: CA5-04M is a 4-pole front mounted auxiliary contact block equipped with screw terminals. CA5-..M version offers terminal assortment matching the marking of 3-pole A9..16-30-10 contactors. CA5-04M is available with 0 N.O. and 4 N.C. instantaneous contacts for standard industrial environments.
Country of Origin
Switzerland (CH)
Lead Time
98 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
2 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating Instruction CA5-.. 4-pole and 1-pole and CC5 1-pole aux. contact block
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
43 mm
Product Net Depth / Length
39 mm
Product Net Height
47 mm
Product Net Weight
0.06 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
4
Number of Poles
4P
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.30 A / 66 W | (250 V) 0.3 / 75 W
Short-Circuit Protective Devices
Auxiliary Circuit - gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency
1200 cycles per hour
Mechanical Durability
10 million
Maximum Mechanical Switching Frequency
3600 cycles per hour
Minimum Switching Capacity
A9 ... A40-30-10 17 / 5 VLT4K
Power Loss
at Rated Operating Conditions per Pole 0.1 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type
Screw Terminals
Suitable For
A9 | A12 | A16 | A26 | A30 | A40 | AL9 | AL9Z | AL12 | AL12Z | AL16 | AL16Z | AL26 | AL30 | AL40 | TAL9 | TAL12 | TAL16 | TAL26 | TAL30 | TAL40 | UA16 | UA26 | UA30
Product Name
Auxiliary Contact Block
Remarks
100
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA5 4-pole auxiliary contacts for A9...A75 range
CCC Certificate
CCC Certificate for CA5 4-pole auxiliary contacts
CQC Certificate
CQC Certificate, Auxiliary contacts, CA5-***, Made in Czech Republic | CQC Certificate, Auxiliary Contact, CA5, CAL5, Made in China
CSA Certificate
CSA_1033838
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CA5-***, Made in Czech Republic | CCC Declaration of Conformity, Auxiliary Contact, CA5, CAL5, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
DNV GL Certificate
DNV_GL_TAE00001UT
EAC Certificate
EAC_RU C-FR ME77 B03391
GOST Certificate
GOST_POCCFRME77B07175
RINA Certificate
RINA Certificate for A9...A75 contactors
UL Certificate
UL Certificate of Compliance for CA5, CC5, CAL5, CCL5 auxiliary contact blocks, WB75 mechanical latching units
Package Level 1 Units
box 2 piece
Package Level 1 Width
65 mm
Package Level 1 Depth / Length
129.5 mm
Package Level 1 Height
43 mm
Package Level 1 Gross Weight
0.12 kg
Package Level 1 EAN
3471522121158
Package Level 2 Units
box 32 piece
Package Level 2 Width
300 mm
Package Level 2 Depth / Length
245 mm
Package Level 2 Height
308 mm
Package Level 2 Gross Weight
1.92 kg
Package Level 3 Units
2880 piece
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709189
