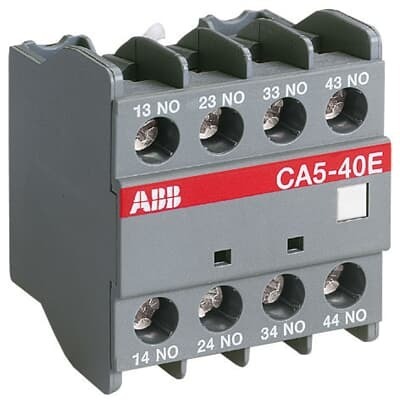

ABB 1SBN010040R1131 Auxiliary Contact Block - 690V UL/CE
Part Number: 1SBN010040R1131
Quick Summary
Auxiliary Contact Block for ABB 1SBN010040R1131 provides reliable signaling in motor control panels and automation cabinets. Engineers often wrestle with wiring clutter and miswired interlocks, which drive downtime and costly repairs. The CA5-31M variant offers a four-pole configuration with three normally-open and one normally-closed contact, front-mounted and wired to match the A9..16-30-10 marking used on ABB contactors. Certifications such as CE and UL, plus UKCA, ensure compliance across global installations, while IP20 protection protects the inner terminals in typical industrial environments. With ABB's standardization across A-series devices, this block reduces wiring errors and simplifies maintenance, delivering measurable improvements in panel reliability and installation efficiency. It also supports RoHS and REACH requirements, helping your automation program meet sustainability targets.
Product Information
Extended Description
1SBN010040R1131 ABB: CA5-31M is a 4-pole front mounted auxiliary contact block equipped with screw terminals. CA5-..M version offers terminal assortment matching the marking of 3-pole A9..16-30-10 contactors. CA5-31M is available with 3 N.O. and 1 N.C. instantaneous contacts for standard industrial environments.
Country of Origin
Switzerland (CH)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
France (FR)
Minimum Order Quantity
2 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating Instruction CA5-.. 4-pole and 1-pole and CC5 1-pole aux. contact block
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
43 mm
Product Net Depth / Length
39 mm
Product Net Height
47 mm
Product Net Weight
0.06 kg
Number of Auxiliary Contacts NO
3
Number of Auxiliary Contacts NC
1
Number of Poles
4P
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.30 A / 66 W | (250 V) 0.3 / 75 W
Short-Circuit Protective Devices
Auxiliary Circuit - gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency
1200 cycles per hour
Mechanical Durability
10 million
Maximum Mechanical Switching Frequency
3600 cycles per hour
Minimum Switching Capacity
A9 ... A40-30-10 17 / 5 VLT4K
Power Loss
at Rated Operating Conditions per Pole 0.1 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type
Screw Terminals
Suitable For
A9 | A12 | A16 | A26 | A30 | A40 | AL9 | AL9Z | AL12 | AL12Z | AL16 | AL16Z | AL26 | AL30 | AL40 | TAL9 | TAL12 | TAL16 | TAL26 | TAL30 | TAL40 | UA16 | UA26 | UA30
Product Name
Auxiliary Contact Block
Remarks
100
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA5 4-pole auxiliary contacts for A9...A75 range
CCC Certificate
CCC Certificate for CA5 4-pole auxiliary contacts
CQC Certificate
CQC Certificate, Auxiliary contacts, CA5-***, Made in Czech Republic | CQC Certificate, Auxiliary Contact, CA5, CAL5, Made in China
CSA Certificate
CSA_1033838
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CA5-***, Made in Czech Republic | CCC Declaration of Conformity, Auxiliary Contact, CA5, CAL5, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)5.., CA(L)5..RT, CC(L)5, CE5, CB5 auxiliary contacts
DNV GL Certificate
DNV_GL_TAE00001UT
EAC Certificate
EAC_RU C-FR ME77 B03391
GOST Certificate
GOST_POCCFRME77B07175
RINA Certificate
RINA Certificate for A9...A75 contactors
UL Certificate
UL Certificate of Compliance for CA5, CC5, CAL5, CCL5 auxiliary contact blocks, WB75 mechanical latching units
Package Level 1 Units
box 2 piece
Package Level 1 Width
65 mm
Package Level 1 Depth / Length
129.5 mm
Package Level 1 Height
43 mm
Package Level 1 Gross Weight
0.12 kg
Package Level 1 EAN
3471522121134
Package Level 2 Units
box 200 piece
Package Level 2 Width
300 mm
Package Level 2 Depth / Length
245 mm
Package Level 2 Height
308 mm
Package Level 2 Gross Weight
12 kg
Package Level 3 Units
3600 piece
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3709190
Feature: Four-pole block with 3 normally-open and 1 normally-closed contacts. Business Impact: Expands signaling capacity and interlock options, enabling more reliable status indication and control logic. Application: Ideal for signaling in motor starters and automation panels where clear off/on feedback is required. Feature: Front-mounted CA5-31M with screw terminals. Business Impact: Faster wiring, easier field servicing, and secure terminal connections that resist vibration. Application: Front-access installations in compact control cabinets with frequent service access. Feature: Terminal assortment matched to A9..16-30-10 markings. Business Impact: Reduces miswiring risk, shortens commissioning time, and lowers training needs for technicians. Application: Used with ABB A-series contactors to simplify panel wiring. Feature: 4P, rated for auxiliary circuit up to 690 V AC, 50/60 Hz. Business Impact: Supports broad industrial applications while maintaining safety margins and compliance. Application: Motor control circuits in manufacturing lines and processing plants. Feature: Robust electrical life and protection. Business Impact: Mechanical durability up to 10 million cycles and IP20 terminals minimize replacement cycles and service disruption. Application: High-demand environments with frequent switching and interlocks. Feature: RoHS/REACH compliant and certified (UL/CE/UKCA). Business Impact: Simplifies regulatory compliance and sustainability reporting. Application: Global deployments across diverse markets with strict procurement standards.
Get a Quick Quote for a ABB 1SBN010040R1131
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBN010040R1131?
Enquire Now
FAQs
Yes. The CA5-31M is designed as a front-mounted, 4-pole auxiliary block with a terminal arrangement that matches ABB A-series contactors, including the A9 through A40 range. It uses screw terminals for secure wiring and aligns with the 3 NO and 1 NC configuration for consistent signaling in motor control panels.
In AC operation, the auxiliary contacts switch at up to 690 V with 50/60 Hz, rated for the appropriate current per the Ie specification (example: 2 A at higher voltages). In DC operation, the rated currents vary by voltage (up to 6 A at 24 V, lower values at higher DC voltages). The unit supports DC-13 and AC-15/AC-3-type signaling suitable for control circuits.
This 4P auxiliary contact block is ideal for motor control panels and automation cabinets where reliable signaling and interlocks are needed. It supports ABB A-series starters, enables clear status indication, and simplifies wiring in panels with space constraints, contributing to faster commissioning and easier maintenance.
The CA5-31M carries UL and CE certifications with UKCA in the mix, plus RoHS and REACH compliance. It is IP20 protected for auxiliary terminals, ensuring safety and regulatory alignment across global installations in industrial environments.
Minimum order quantity is 2 pieces, and stock is available at CHABB001EXPU. The device is covered by ABB’s standard warranty policy, with returns accepted for warranty issues. Lead time is shown as 0 days, supporting rapid deployment in project rollouts.
