ABB 1SBN010110R1002 Auxiliary Contact Block - UL/CE
Part Number: 1SBN010110R1002
Quick Summary
Auxiliary Contact Block from ABB extends control signaling for AF-series contactors in motor and machine panels. A common pain point is wiring complexity and mis-signaling during maintenance; this block simplifies installation and improves reliability. It meets IEC/EN 60947-5-1, UL 60947-5-1, and CSA C22.2 No. 60947-5-1-14, with CE conformity for European applications, ensuring robust worldwide compliance. The front-mounted design with screw terminals minimizes panel space and simplifies field retrofit, while the 2 NC contacts provide clear signaling without bulky add-ons. With IP20 protection and compact dimensions, it supports fast, error-free wiring and predictable performance in demanding industrial environments. In practice, this translates to shorter commissioning, fewer faults, and lower total cost of ownership for control circuits.
Product Information
Extended Description

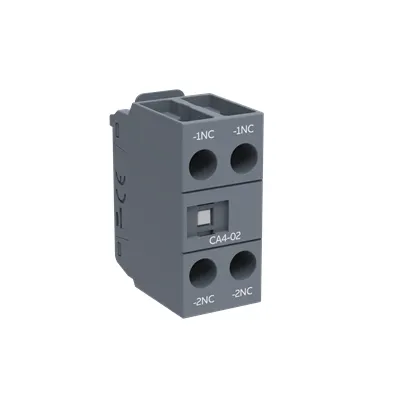

1SBN010110R1002 ABB: CA4-02 is a 2-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)...96 contactors and NF(C)(Z) contactor relays. CA4-02 is available with 2 N.C. instantaneous contacts for standard industrial environments.
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
43 mm
Product Net Depth / Length
19.9 mm
Product Net Height
23.6 mm
Product Net Weight
0.024 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
2
Number of Poles
2P
Standards
IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Power Loss
at 6 A per Pole 0.1 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Rigid 1/2x 1 ... 2.5 mm² | Rigid Solid 1/2x 1 ... 2.5 mm² | Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque
Auxiliary Circuit 1.2 N·m
Terminal Type
Screw Terminals
Suitable For
AF09 | AF09Z | AF12 | AF12Z | AF16 | AF16Z | AF26 | AF26Z | AF30 | AF30Z | AF38 | AF38Z | AF40 | AF52 | AF65 | AF80 | AF96 | AFC09 | AFC12 | AFC16 | AFC26 | AFC30 | AFC38 | AFC40 | AFC52 | AFC65 | AFC80 | AFC96 | NF22E | NFZ22E | NF31E | NFZ31E | NF40E | NFZ40E | NFC22E | NFC31E | NFC40E | NFZB22E | NFB22E | NFZB31E | NFB31E | NFZB40E | NFB40E
Product Name
Auxiliary Contact Block
Connecting Capacity Auxiliary Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG | Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA
Auxiliary Circuit 11 in·lb
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CCC
CQC Certificate, Auxiliray Contact, CA4-10, CA4-01, CAL4-11, CAL4-11RT, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contact blocks, VM4, VM96-4, VEM4(K) interlocks
Package Level 1 Units
bag 1 piece
Package Level 1 Width
110 mm
Package Level 1 Depth / Length
110 mm
Package Level 1 Height
30 mm
Package Level 1 Gross Weight
0.026 kg
Package Level 1 EAN
3471523024670
Package Level 2 Units
box 50 piece
Package Level 2 Gross Weight
1.4 kg
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121500
