ABB 1SBN010111R1001 Auxiliary Contact Block - IP20
Part Number: 1SBN010111R1001
Quick Summary
ABB 1SBN010111R1001 Auxiliary Contact Block provides a 1-pole NC signaling contact for ABB AF/NF contactors. This compact accessory simplifies control-circuit signaling while reducing panel clutter. It carries IEC/EN 60947-5-1, UL 60947-5-1, and CSA certifications, plus CE/UKCA, RoHS, REACH, and WEEE compliance for global deployment. With a 9.9 mm width and 0.014 kg weight, it supports high-density layouts and dependable operation in industrial environments. Designed for straightforward CAD integration and installation documentation, it accelerates engineering workflows and speeds project handover without compromising safety or reliability.
Product Information
Extended Description

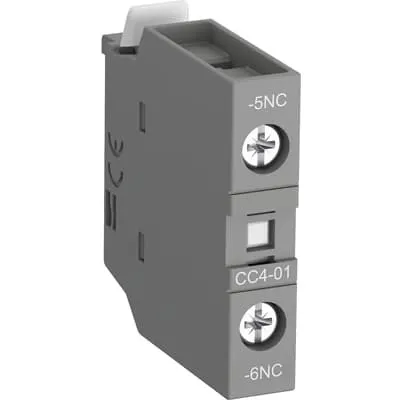

1SBN010111R1001 ABB: CC4-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays. CC4-01 is available with one N.C. lagging contact for standard industrial environments.
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating instruction CA4, CAL4, CAT4, CC4, LDC4 accessories for AF09...AF96 contactors, NF contactor relays
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
9.9 mm
Product Net Depth / Length
39.5 mm
Product Net Height
43 mm
Product Net Weight
0.014 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
1
Number of Poles
1P
Standards
IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Rigid Solid 1/2x 1 ... 2.5 mm² | Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque
Auxiliary Circuit 1.2 N·m
Terminal Type
Screw Terminals
Suitable For
AF09 | AF09Z | AF12 | AF12Z | AF16 | AF16Z | AF26 | AF26Z | AF30 | AF30Z | AF38 | AF38Z | AF40 | AF52 | AF65 | AF80 | AF96 | AFC09 | AFC12 | AFC16 | AFC26 | AFC30 | AFC38 | NF22E | NFZ22E | NF31E | NFZ31E | NF40E | NFZ40E | NFC22E | NFC31E | NFC40E
Product Name
Auxiliary Contact Block
Connecting Capacity Auxiliary Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG | Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA
Auxiliary Circuit 11 in·lb
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate, AF(S)09 to AF(S)96 contactors, NF contactor relays and CA4, CC4, CAL4, CAT4 auxiliary contact blocks, TEF4 electronic timers
CB Certificate
CB Certificate CA4 1-pole, CC4 1-pole, CAL4-11 auxiliary contact blocks for AF09...AF96 contactors and NF contactor relays
CQC Certificate
CQC Certificate, Auxiliary contacts, CAL4-**, CA4-**, CC4-**, Made in Czech Republic
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CAL4-**, CA4-**, CC4-**, Made in Czech Republic
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contact blocks, VM4, VM96-4, VEM4(K) interlocks
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contacts, VM4, VM96-4, VEM4(K) interlocks
GOST Certificate
GOST_POCCFR.ME77.B07175.pdf
LR Certificate
LRS Certificate AF(S)09..(K) ... AF96 3 and 4-pole contactors and CA(L)4..(K), CAT4, CC4 auxiliary contact blocks
RINA Certificate
Rina Certificate for AF09...AF96 contactors, NF contactor relays and accessories, screw and spring terminals
UL Certificate
UL-US Certificate of Compliance CA4, CC4, CAL4, CAT4, BX4, BX4-CA, BA4 accessories for AF09...AF96 contactors / NF contactor relays | UL-CA Certificate of Compliance CA4, CC4, CAL4, CAT4, BX4, BX4-CA, BA4 accessories for AF09...AF96 contactors / NF contactor relays
UL Listing Card
UL_E252354
Package Level 1 Units
bag 1 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
10 mm
Package Level 1 Gross Weight
0.014 kg
Package Level 1 EAN
3471523130432
Package Level 2 Units
box 100 piece
Package Level 2 Gross Weight
1.4 kg
Package Level 3 Units
2400 piece
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3706505
E-Number (Sweden)
3211433
Feature → Business Impact → Application: The CC4-01 lagging auxiliary contact block adds one NC contact to a 1-pole block, enabling direct control feedback for interlocks and signaling in safety circuits. This reduces wiring errors and commissioning time, improving startup reliability for AF09 through AF96 contactors used in motor control and automation panels. Compatibility with a wide range of ABB contactors means fewer spare parts and simplified stocking for maintenance teams in manufacturing lines. The device’s front-mounted screw terminals and compact footprint support fast field wiring while maintaining robust connection stability, leading to lower maintenance costs and fewer field failures in harsh environments. The product’s 690 V insulation, 50/60 Hz operation, and 16 A Ith provide predictable performance in both light-load signaling and medium-duty control circuits. Installation torque of 1.2 N·m and IP20 protection ensure secure connections and reliable operation during panel assembly and service.
