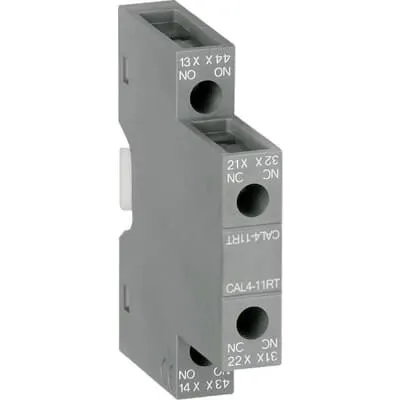

ABB CAL4-11RT Auxiliary Contact Block - IEC/UL 60947-5-1
Part Number: 1SBN010129R1011
Quick Summary
The CAL4-11RT Auxiliary Contact Block is a 2-pole block that provides a dedicated NO/NC signaling path and clips onto ABB AF09–AF38(Z)B..RT contactors and NF(Z)B..RT relays. In compact control panels, wiring reliability and quick field maintenance are common challenges; CAL4-11RT addresses these with screw terminals designed for ring tongue ferrules and a secure conic washer, ensuring fast, vibration-resistant terminations. It conforms to IEC/EN 60947-5-1, UL 508, and CSA C22.2 No. 14-10, with CE/UKCA declarations and IP20 auxiliary terminals for safe operation. The combination of a slim 12 mm net width and lightweight construction enables flexible, space-saving installations. Use this accessory to improve signaling reliability, simplify panel wiring, and maintain compliance across industrial and rolling stock applications.
Product Information
Extended Description
1SBN010129R1011 ABB: CAL4-11RT is a 2-pole side mounted auxiliary contact block equipped with screw terminals for connection with ring tongue ferrules and can be fitted on AF09..38(Z)B..RT contactors and NF(Z)B..RT contactor relays. CAL4 auxiliary contact block can be clipped onto the right- and/or left-hand side of the contactors or the contactor relays and bears the corresponding function marking. CAL4-11RT is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments. Screw terminals for connection with ring tongue ferrules, includes non-detachable screw with conic washer for a fast and secure tightening of cables.
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
Motor control and protection for Rolling stock application_PDF
Instructions and Manuals
Installation instructions AF09...38(Z)B-..RT Contactors, NF(Z)B..ERT Contactor relays and CA4..RT, CAL4..RT, CAT4..RT, LDC4RT Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12 mm
Product Net Depth / Length
60 mm
Product Net Height
69.4 mm
Product Net Weight
0.04 kg
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-10
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque
Auxiliary Circuit 1.2 N·m
Terminal Type
Ring-Tongue Terminals
Suitable For
AF09B | AF09ZB | AF12B | AF12ZB | AF16B | AF16ZB | AF26B | AF26ZB | AF30B | AF30ZB | AF38B | AF38ZB | NFZB22E | NFB22E | NFZB31E | NFB31E | NFZB40E | NFB40E | NFZB44E | NFB44E | NFZB62E | NFB62E | NFZB80E | NFB80E
Product Name
Auxiliary Contact Block
Tightening Torque UL/CSA
Auxiliary Circuit 11 in·lb
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA4 1-pole, CC4 1-pole, CAL4-11 auxiliary contact blocks for AF09...AF96 contactors and NF contactor relays
CQC Certificate
CQC Certificate, Auxiliary contacts, CAL4-**, CA4-**, CC4-**, Made in Czech Republic | CQC Certificate, Auxiliray Contact, CA4-10, CA4-01, CAL4-11, CAL4-11RT, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CAL4-**, CA4-**, CC4-**, Made in Czech Republic | CCC Declaration of Conformity, Auxiliray Contact, CA4-10, CA4-01, CAL4-11, CAL4-11RT, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contact blocks, VM4, VM96-4, VEM4(K) interlocks
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contacts, VM4, VM96-4, VEM4(K) interlocks
UR Certificate
UR Certificate of Compliance 2 or 4-pole CA4..RT, CAL4..RT, CAT4..RT for AF09..38(Z)B..RT contactors / NF(Z)B..RT contactor relays
Package Level 1 Units
bag 1 piece
Package Level 1 Width
125 mm
Package Level 1 Depth / Length
125 mm
Package Level 1 Height
20 mm
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
3471523130449
Package Level 2 Units
box 300 piece
Package Level 2 Width
0 mm
Package Level 2 Depth / Length
0 mm
Package Level 2 Height
0 mm
Package Level 2 Gross Weight
12 kg
Package Level 3 Units
5400 piece
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
Feature CAL4-11RT offers a 2-pole design with 1 normally open and 1 normally closed auxiliary contact. Business impact: provides defined control states and enables reliable signaling in motor control circuits, reducing miscommunications and unintended operations. Application: ideal for ABB AF09–AF38 contactors and NFZB..RT relays in factories and rolling stock environments. The compact footprint and left/right side mounting support flexible installation in tight panels. Feature Screw terminals for ring tongue ferrules ensures secure terminations. Business impact: faster cabling and fewer loose connections, lowering field maintenance time and risk of arcing. Application: panel builds with strict vibration and wiring density requirements. Feature Clip-on mounting on either side simplifies retrofits and serviceability. Business impact: reduces installation time and enables scalable expansion in multi-block control panels. Application: new builds and upgrade projects in industrial automation. Feature 12 mm width, 60 mm depth, and 69.4 mm height with a 0.04 kg weight provides a compact, lightweight addition to control gear. Business impact: saves enclosure space and supports denser control architectures. Application: high-density control cabinet designs. Feature Rated Operational Voltage for auxiliary circuit up to 690 V and 50/60 Hz. Business impact: compatible with standard plant control networks, enabling safe signal transmission in diverse voltages. Application: AC-15 and DC-13 signaling in machine controls. Feature Compliance and documentation: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-10 with RoHS/REACH declarations. Business impact: ensures regulatory alignment and easier supplier qualification. Application: procurement and compliance workflows in engineering specs.
Get a Quick Quote for a ABB 1SBN010129R1011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBN010129R1011?
Enquire Now
FAQs
CAL4-11RT is designed to clip onto ABB AF09–AF38(Z)B..RT contactors and NFZB..RT relays, and can be mounted on either the left or right side of the carrier. The unit uses non-detachable screws with conic washers for fast, secure cable termination, and its compact form enables retrofits in crowded panels without sacrificing performance.
For AC-15 applications, CAL4-11RT supports up to 2 A at higher voltages (up to 500 V or 690 V depending on the circuit), and up to 6 A for lower voltage ranges (24/127 V, 220/240 V, 400/440 V). For DC-13, ratings vary by voltage (e.g., 24 V up to 6 A, 48 V up to 2.8 A, down to 600 V with progressively lower current). These values enable signaling across diverse control circuits while staying within insulation and safety limits.
CAL4-11RT complies with IEC/EN 60947-5-1, UL 508, and CSA C22.2 No. 14-10, with additional CE/UKCA conformity. This matters for regulatory compliance, safety certification, and cross-border procurement, reducing integration risk in multi-site projects and simplifying supplier qualification for industrial automation used in rail and general machinery.
The auxiliary contact block has a net width of 12 mm, net depth of 60 mm, and net height of 69.4 mm, with a product net weight of 0.04 kg. These compact dimensions support dense panel layouts and lightweight, scalable installations in both new builds and retrofits.
Use the screw terminals with ring-tongue ferrules for secure terminations, and tighten to 1.2 N·m as specified. The right- or left-side clipping allows flexible mounting on AF contactors, reducing cabling complexity. These practices minimize loose connections, improve vibration resistance, and shorten service time during maintenance or upgrades.
