ABB 1SBN010146R1204 Auxiliary Contact Block IEC/UL/CSA
Part Number: 1SBN010146R1204
Quick Summary
Auxiliary Contact Block CA4-04NK provides four NC signals for motor starter control in industrial panels. This front-mounted design with Push-In Spring terminals reduces wiring time and errors during installation. It complies with IEC/EN 60947-5-1, UL 60947-5-1, and CSA C22.2 for safety and cross-border compatibility. Coupled with Push-In Spring terminals, it speeds field wiring and reduces termination costs, while compatibility with NF40E | NFZ40E | NFC40E contactors expands control-system design options and enables scalable automation. From a maintenance perspective, modular CA4-04NK blocks simplify spare parts strategies and reduce downtime when replacing worn components. This block’s 4 NC contacts provide clear signaling for machine states, enabling safer start-up and easier diagnostic tracing.
Product Information
Extended Description

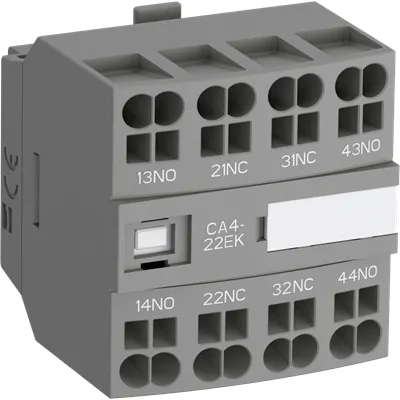

1SBN010146R1204 ABB: CA4-04NK is a 4-pole front mounted auxiliary contact block equipped with Push-In Spring terminals. CA4-..N version offers terminal assortment matching the marking of 4-pole NF(C)(Z)(B)40EK contactor relays. CA4-04NK is available with 4 N.C. instantaneous contacts for standard industrial environments. With the Push-in Spring terminals, one push is all you need for a faster than ever installation, an easier than ever wiring and a reliable as ever connection.
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Installation instructions AF(C)09...38(Z)(B)..K Contactors, NF(C)(Z)(B)..K Contactor relays and CA4..K, CAL4..K, LDC4K Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
43 mm
Product Net Depth / Length
39.5 mm
Product Net Height
45 mm
Product Net Weight
0.05 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
4
Number of Poles
4P
Standards
IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.5 ... 2.5 mm² | Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm² | Flexible 1/2x 0.5 ... 2.5 mm² | Rigid Solid 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type
Push-in Spring Terminals
Suitable For
NF40E | NFZ40E | NFC40E | NFZB40E | NFB40E
Product Name
Auxiliary Contact Block
Connecting Capacity Auxiliary Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate, AF(S)09 to AF(S)96 contactors, NF contactor relays and CA4, CC4, CAL4, CAT4 auxiliary contact blocks, TEF4 electronic timers
CB Certificate
CB Certificate CA4 4-pole and CAT4 auxiliary contact blocks for AF09...AF96 contactors and NF contactor relays
CCC Certificate
CCC Certificate CA4 4-pole, CAT4-11, VE4 AF accessories with screw, Ring tongue, spring and push-in terminals
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CAL4-**, CA4-**, CC4-**, Made in Czech Republic | CCC Declaration of Conformity, Auxiliary contacts, CA4-***,CAT4-*** ,VE4, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contact blocks, VM4, VM96-4, VEM4(K) interlocks
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contacts, VM4, VM96-4, VEM4(K) interlocks
DNV Certificate
DNV Certificate for NF, NF..S, NF..K contactor relays and CA4, CAL4, CAT4 auxiliary contacts with screw, spring or push-in terminals
LR Certificate
LRS Certificate AF(S)09..(K) ... AF96 3 and 4-pole contactors and CA(L)4..(K), CAT4, CC4 auxiliary contact blocks
RMRS Certificate
RMRS Certificate CA4, CAT4, CAL4-11 - Auxiliary contacts for AF(S)09...AF(S)96, NF ranges, with screw, push-in and spring terminals
UL Certificate
UL-US Certificate of Compliance CA4, CC4, CAL4, CAT4, BX4, BX4-CA, BA4 accessories for AF09...AF96 contactors / NF contactor relays | UL-CA Certificate of Compliance CA4, CC4, CAL4, CAT4, BX4, BX4-CA, BA4 accessories for AF09...AF96 contactors / NF contactor relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
46 mm
Package Level 1 Depth / Length
46 mm
Package Level 1 Height
46 mm
Package Level 1 Gross Weight
0.05 kg
Package Level 1 EAN
3471523131385
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3708033
E-Number (Sweden)
3210655
Feature: Four NC contacts in a four-pole block. Business Impact: Enables precise, state-based signaling for interlocks and machine status, improving safety and control reliability. Application: Motor starter circuits, control-logical interlocks in automation panels. Feature: Push-In Spring terminals. Business Impact: Faster, tool-free wiring with a secure, vibration-resistant connection, reducing installation time and human error. Application: Field wiring in control cabinets and retrofit projects where panel downtime matters. Feature: Global compliance (IEC/EN 60947-5-1, UL 60947-5-1, CSA). Business Impact: Streamlines approval processes and enables multinational deployments without rework. Application: International plant builds and service contracts. Feature: Compact 4P, NC configuration with 690 V auxiliary circuit rating. Business Impact: Dense panel layouts with flexible control logic while maintaining safe isolation and performance. Application: NF40E/NFZ40E/NFC40E family integrations in machine control. Feature: Push-in wiring range and IP20 protection. Business Impact: Robust yet simple terminations for both ferruled and bare conductors, plus protection in typical indoor enclosures. Application: Panel assemblies in manufacturing lines and packaging equipment.
Get a Quick Quote for a ABB 1SBN010146R1204
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBN010146R1204?
Enquire Now
FAQs
Yes. CA4-04NK is a four-pole auxiliary block designed for NF-series contactors and their corresponding front-mounting interfaces. It uses Push-In Spring terminals for quick, secure terminations and aligns with standard 4-pole configurations commonly used in NF40/NFZ40 family assemblies, simplifying panel layouts and retrofit work.
The block provides four NC signals with a 690 V auxiliary circuit rating, operates at 50/60 Hz, and offers IP20 protection. It has a conventional thermal current Ith of 16 A at 40 °C, with AC-15 up to 2 A at various voltages and DC-13 up to 6 A (or lower depending on voltage). It supports up to 1200 cycles/hour (AC-15) and 900 cycles/hour (DC-13).
This block excels in motor-control panels, interlock signaling, and safety circuits where four NC signals are needed for NF-series contactors. It’s ideal for start/stop interlocks, machine-state signaling, and panel diagnostics in manufacturing lines, conveyors, and processing equipment.
CA4-04NK carries IEC/EN 60947-5-1, UL 60947-5-1, and CSA C22.2 No. 60947-5-1-14 certifications. RoHS and REACH declarations are provided, supporting global deployments and compliance in regulated markets while facilitating regulatory approvals and audits.
The Push-In Spring terminals and front-mounted design simplify wiring, reducing installation time and field errors. Fewer mis-wires translate to lower commissioning time, faster spare-parts strategy, and reduced downtime during maintenance or replacements, delivering a measurable reduction in total cost of ownership over the equipment’s life cycle.
