ABB 1SBN010020R1011 Auxiliary Contact Block - 2P NO/NC
Part Number: 1SBN010151R1011
Quick Summary
CAL5-11 Auxiliary Contact Block by ABB provides a reliable 2-pole signaling interface for DIN rail contactors. Without robust auxiliary contacts, status signals drift and interlocks misoperate, complicating diagnostics and maintenance planning. It clips on ABB A9 and similar DIN rail contactors, supports side mounting on either side, and provides 1 normally open and 1 normally closed instantaneous contact, delivering clear, redundant signaling with fast wiring via screw terminals. Certification details are not listed here; confirm CE/UL and IP ratings with your ABB distributor. This design improves fault detection and reduces wiring errors, delivering tangible time savings in panel assembly and safer machine operation.
Product Information
Extended Description

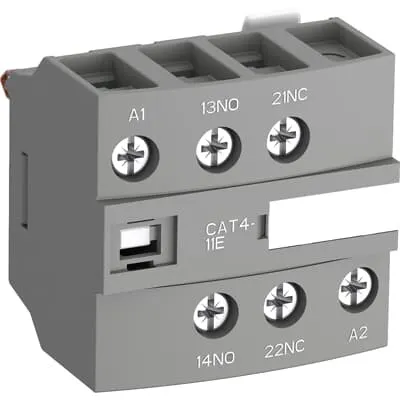

1SBN010151R1011 ABB: CAT4-11E is a 2-pole front mounted auxiliary contact block with A1 / A2 coil terminal connection on front face, equipped with screw terminals. CAT4-..E version offers terminal assortment matching the marking of 3-pole AF(C)26(Z)(B)..65-30-00, AF(C)40..65-30-11, 4-pole AF(C)09(Z)(B)..52-40-00 or AF(C)09(Z)(B)..52-22-00 contactors. CAT4-11E is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments.
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
15 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
