ABB 1SBN010154R1111 Auxiliary Contact Block CAT4-11MRT
Part Number: 1SBN010154R1111
Quick Summary
ABB 1SBN010154R1111 Auxiliary Contact Block CAT4-11MRT enables front-mounted signaling for AF contactors. In crowded control panels, unreliable terminations and wiring faults frustrate maintenance teams, making secure connections essential. It carries IEC/EN 60947-5-1, UL 508 and CSA C22.2 No. 14-10 certifications, supporting universal compliance. Compatibility with AF09–AF16 contactors and RoHS/REACH declarations help simplify procurement while keeping your panel design compliant. Engineered for dependable operation in industrial environments, it minimizes downtime and accelerates installation and commissioning. The integrated front-face coil terminals streamline assembly and reduce miswiring risk.
Product Information
Extended Description

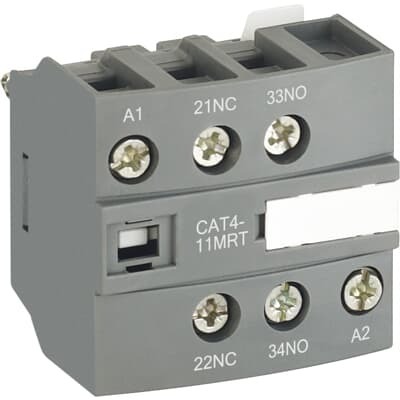

1SBN010154R1111 ABB: CAT4-11MRT is a 2-pole front mounted auxiliary contact block with A1 / A2 coil terminal connection on front face, equipped with screw terminals for connection with ring tongue ferrules. CAT4-..M version offers terminal assortment matching the marking of 3-pole AF(C)09..16(Z)(B)-30-10RT contactors. CAT4-11MRT is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments. Screw terminals for connection with ring tongue ferrules, includes non-detachable screw with conic washer for a fast and secure tightening of cables.
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
Motor control and protection for Rolling stock application_PDF
Instructions and Manuals
Installation instructions AF09...38(Z)B-..RT Contactors, NF(Z)B..ERT Contactor relays and CA4..RT, CAL4..RT, CAT4..RT, LDC4RT Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Depth / Length
31.6 mm
Product Net Height
43 mm
Product Net Weight
0.045 kg
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
2P
Standards
IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-10
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz | Control Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Wire Stripping Length
Auxiliary Circuit 10 mm | Control Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque
Auxiliary Circuit 1.2 N·m | Control Circuit 1.2 N·m
Terminal Type
Ring-Tongue Terminals
Suitable For
AF09B | AF09ZB | AF12B | AF12ZB | AF16B | AF16ZB
Product Name
Auxiliary Contact and Coil Terminal Block
Tightening Torque UL/CSA
Auxiliary Circuit 11 in·lb | Control Circuit 11 in·lb
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA4 4-pole and CAT4 auxiliary contact blocks for AF09...AF96 contactors and NF contactor relays
CCC Certificate
CCC_2013010304651497
CQC Certificate
CQC Certificate, Auxiliary contacts, CA4-***,CAT4-*** ,VE4, Made in Poland
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, CA4-***,CAT4-*** ,VE4, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contact blocks, VM4, VM96-4, VEM4(K) interlocks
Declaration of Conformity - UKCA
UK Declaration of Conformity CA(L)(T)4.., CC4, CA(L)(T)4..RT, CA(L)4..K, CA(L)(T)4..S auxiliary contacts, VM4, VM96-4, VEM4(K) interlocks
UR Certificate
UR Certificate of Compliance 2 or 4-pole CA4..RT, CAL4..RT, CAT4..RT for AF09..38(Z)B..RT contactors / NF(Z)B..RT contactor relays
Package Level 1 Units
box 1 piece
Package Level 1 Width
46 mm
Package Level 1 Depth / Length
46 mm
Package Level 1 Height
46 mm
Package Level 1 Gross Weight
0.045 kg
Package Level 1 EAN
3471523130548
Package Level 2 Units
box 0 piece
Package Level 2 Width
0 mm
Package Level 2 Depth / Length
0 mm
Package Level 2 Height
0 mm
Package Level 3 Units
0 piece
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
