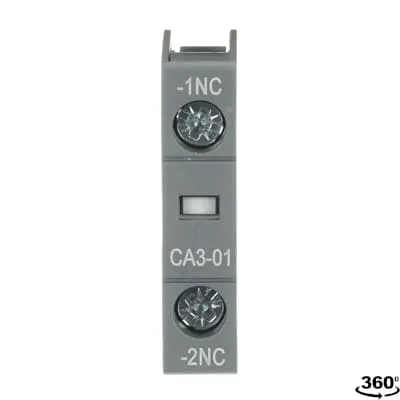

ABB CA3-01 Auxiliary Contact Block - 690V, 1 NC
Part Number: 1SBN011010T1001
Quick Summary
ABB CA3-01 Auxiliary Contact Block provides a 1NC auxiliary contact for front-mounted control on AS/L-09 to NS contactors. This compact module reduces wiring errors and improves status feedback in motor starter panels. It features screw terminals, supports 690V ratings for auxiliary and main circuits, and operates at 50/60 Hz. Ith is 10 A, ensuring reliable performance across typical industrial loads. Rated insulation voltage reaches 690 V with IP20 protection for internal circuits. The unit measures 44.2 mm wide, 33.5 mm high, and 9.5 mm deep, enabling easy integration in tight control panels. Compatible with the AS and NS series, it enhances control reliability with global CE, UKCA, UL, and RoHS/REACH compliance.
Product Information
Extended Description
1SBN011010T1001 ABB: CA3-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AS(L)09…16 contactors and NS(L) contactor relays. CA3-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
Minimum Order Quantity
10 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating Instruction, AS(L)09...AS(L)16, NS(L)22E...NS(L)80E , CA3, VM3, BB3
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
44.2 mm
Product Net Depth / Length
9.5 mm
Product Net Height
33.5 mm
Product Net Weight
0.011 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
1
Rated Operational Voltage
Auxiliary Circuit 690 V | Main Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Rated Operational Current AC-15 (Ie)
(500 V) NC 2 | (500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V | acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Rigid 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque
Auxiliary Circuit 1 N·m
Terminal Type
Screw Terminals
Suitable For
AS09 | AS12 | AS16 | ASL09 | ASL12 | ASL16 | VAS09 | VAS12 | VAS16 | VASL09 | VASL12 | VASL16 | NS | NSL
Product Name
Auxiliary Contact Block
Tightening Torque UL/CSA
Auxiliary Circuit 9 in·lb
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certficate for CA3-.. auxiliary contact block
CCC Certificate
CCC Certficate for CA3-.. auxiliary contact block
CQC Certificate
CQC Certificate, Auxiliary Contact, CA3, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary Contact, CA3, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA3..(S) auxiliary contacts
Declaration of Conformity - UKCA
UK Declaration of conformity for CA3 Auxiliary contacts
GOST Certificate
GOST_POCCCNME77B07822.pdf
UL Certificate
UL_220108-E312527A
UL Listing Card
NOA_E312527.pdf
Package Level 1 Units
bag 10 piece
Package Level 1 Width
180 mm
Package Level 1 Depth / Length
10 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
0.11 kg
Package Level 1 EAN
3471523095038
Package Level 2 Units
200 piece
Package Level 2 Width
270 mm
Package Level 2 Depth / Length
360 mm
Package Level 2 Height
220 mm
Package Level 2 Gross Weight
2.3 kg
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Sweden)
3210518
Feature → Front-mounted 1NC auxiliary contact block provides seamless addition of control feedback to main switching devices. Business Impact → Faster panel wiring, improved diagnostic clarity, and reduced risk of miscommunication between control and power circuits. Application → Ideal for motor starter panels and interlocking circuits where compact, reliable feedback is required. Feature → Screw terminals offer secure, vibration-resistant connections. Business Impact → Lower maintenance frequency and fewer loose-wire failures in harsh environments. Application → Suitable for DC-13 and AC-15 style control circuits across 50/60 Hz systems. Feature → 690 V insulation rating and Ith of 10 A ensure compatibility with industrial controls. Business Impact → Regulatory compliance and predictable performance in mixed-voltage panels. Application → Global deployments where CE/UKCA/UL RoHS/REACH certifications streamline sourcing. Feature → Compact dimensions (44.2 mm x 33.5 mm x 9.5 mm) and IP20 protection. Business Impact → Maximized DIN rail utilization and safer enclosure layouts. Application → New or retrofit installations in compact control cabinets. Feature → Compatibility with ABB AS/NS families and screw-terminal design. Business Impact → Simplified procurement and faster installation for upgrade projects. Application → Retrofit and upgrade projects across plant lines.
