ABB 1SBN011310R1010 Auxiliary Contact Block - UL/CE 690V
Part Number: 1SBN011310R1010
Quick Summary
Auxiliary Contact Block from ABB provides a compact front-mounted NO contact for AFC/NFC contactors. Engineers often face wiring density and retrofit challenges when expanding control circuitry. This unit complies with UL 60947-5-1, IEC/EN 60947-1, and CE marking, with CB/CQC certificates supporting global safety and market access. Designed for compatibility with the AFC40–NFC40 families, it enables reliable control logic while reducing installation time and wiring errors, delivering practical value in panel installations and machine automation.
Product Information
Extended Description

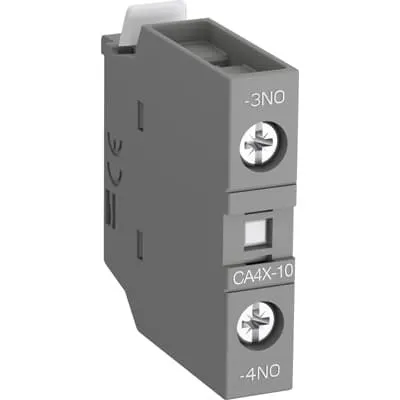

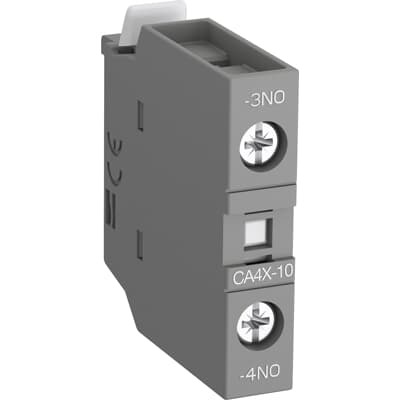

1SBN011310R1010 ABB: CA4X-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AFC09...96 contactors and NFC contactor relays. CA4X-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.
Minimum Order Quantity
10 piece
Customs Tariff Number
85389099
Instructions and Manuals
Operation instruction CA4X 1-pole aux. contact block
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
9.9 mm
Product Net Depth / Length
39.5 mm
Product Net Height
43 mm
Product Net Weight
0.014 kg
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
0
Standards
UL 60947-5-1, IEC/EN 60947-1, IEC/EN 60947-5-1, GB14048.5
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 2.4 A
Rated Operational Current DC-13 (Ie)
(24 V) 4 A | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Power Loss
at 6 A per Pole 0.1 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque
Auxiliary Circuit 1.2 N·m
Terminal Type
Screw Terminals
Suitable For
AFC40 | AFC52 | AFC65 | AFC80 | AFC96 | AFC09 | AFC12 | AFC16 | AFC26 | AFC30 | AFC38 | NFC22E | NFC31E | NFC40E
Product Name
Auxiliary Contact Block
Tightening Torque UL/CSA
Auxiliary Circuit 11 in·lb
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA4X auxiliary contact blocks for AFC09...AFC96 contactors and NFC contactor relays
CCC Certificate
CCC declaration of conformity – CA4X auxiliary contact
CCS Certificate
CCS Certificate of AFC09 ... AFC96 , AX09-AX370 contactors
CQC Certificate
CQC Certificate of Product certification – CA4X auxiliary contact
cULus Certificate
UL-US Certificate of Compliance CA4X accessories for AFC09...AFC96 contactors / NFC contactor relays
Declaration of Conformity - CCC
CQC Certificate of Product certification – CA4X auxiliary contact
Declaration of Conformity - CE
EU Declaration of Conformity CA4X.. auxiliary contacts
DNV Certificate
DNV Certificate for NFC, NFC..K contactor relays and CA4, CAL4, CAT4 auxiliary contacts with screw, spring or push-in terminals
RINA Certificate
Rina Certificate for AFC09...AFC96 3 pole and 4 pole contactors, NFC relays ,screw and spring terminals
Package Level 1 Units
bag 5 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
10 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.15 kg
Package Level 1 EAN
3471523024724
Package Level 2 Units
box 200 piece
Package Level 2 Gross Weight
3.2 kg
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121500
The block offers a single normally open contact, enabling straightforward control signaling and improved fault diagnostics, which translates to faster wiring checks and reduced commissioning time. Its front-mounted screw terminals provide robust, serviceable connections that simplify on-site maintenance and future upgrades in harsh industrial environments. Rated for 690 V and 50/60 Hz auxiliary circuits, it supports diverse control architectures across European and North American facilities, improving compatibility with existing AFC/NFC portfolios and minimizing part proliferation. The 1.2 N·m tightening torque and standard 9.9 mm width enable compact panel layouts without compromising reliability, while 0.014 kg weight reduces overall BOM and assembly effort. With 10 A Ith and 10 A AC-15 ratings, it delivers dependable performance for common control loads. ABB’s compliance with UL/CE and related certificates assures regulatory readiness. Installation compatibility with AFC09 to AFC96 contactors and quick-wiring of auxiliary circuits minimizes downtime and supports scalable automation strategies.
