ABB 1SBN011310R1020 Auxiliary Contact Block - CE/UL
Part Number: 1SBN011310R1020
Quick Summary
Auxiliary Contact Block provides front-mounted, two NO contacts for AFC contactors in control circuits. Wiring clarity and reliable feedback are common pain points in dense control panels. This ABB accessory complies with UL 60947-5-1, IEC 60947-1, IEC 60947-5-1 and GB14048.5, with CE declarations supporting worldwide deployment. By enabling quick interlocking and status signaling, it reduces wiring errors, speeds commissioning, and simplifies diagnostics. For panel builders and machine integrators, it offers predictable performance, seamless compatibility with AFC09–AFC96 and NFC relays, and a compact footprint that preserves enclosure space while maintaining safe, compliant operation.
Product Information
Extended Description

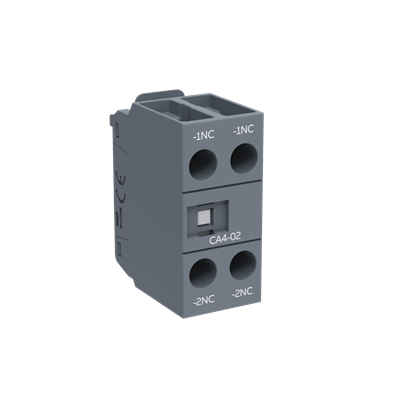

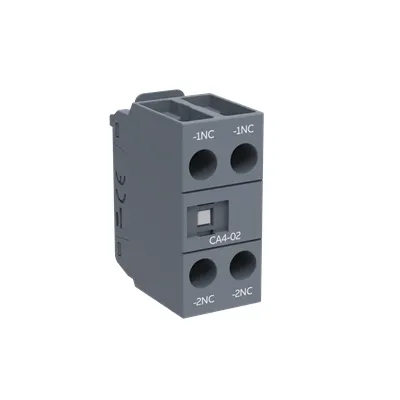

1SBN011310R1020 ABB: CA4X-20 is a 2-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AFC09...96 contactors and NFC contactor relays. CA4X-02 is available with 2 N.O. instantaneous contacts for standard industrial environments.
Types of auxiliary contact blocks for front mounting:
Minimum Order Quantity
5 piece
Customs Tariff Number
85389099
Instructions and Manuals
Operation instruction CA4X 1-pole aux. contact block
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
43 mm
Product Net Depth / Length
19.9 mm
Product Net Height
23.6 mm
Product Net Weight
0.024 kg
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
0
Number of Poles
2P
Standards
UL 60947-5-1, IEC/EN 60947-1, IEC/EN 60947-5-1, GB14048.5
Rated Operational Voltage
Auxiliary Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 2.4 A
Rated Operational Current DC-13 (Ie)
(24 V) 4 A | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Power Loss
at 6 A per Pole 0.1 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque
Auxiliary Circuit 1.2 N·m
Terminal Type
Screw Terminals
Suitable For
AFC09 | AFC12 | AFC16 | AFC26 | AFC30 | AFC38 | AFC40 | AFC52 | AFC65 | AFC80 | AFC96 | NFC22E | NFC31E | NFC40E
Product Name
Auxiliary Contact Block
Tightening Torque UL/CSA
Auxiliary Circuit 11 in·lb
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate CA4X auxiliary contact blocks for AFC09...AFC96 contactors and NFC contactor relays
CCC Certificate
CCC declaration of conformity – CA4X auxiliary contact
CCS Certificate
CCS Certificate of AFC09 ... AFC96 , AX09-AX370 contactors
CQC Certificate
CQC Certificate of Product certification – CA4X auxiliary contact
cULus Certificate
UL-US Certificate of Compliance CA4X accessories for AFC09...AFC96 contactors / NFC contactor relays
Declaration of Conformity - CCC
CQC Certificate of Product certification – CA4X auxiliary contact
Declaration of Conformity - CE
EU Declaration of Conformity CA4X.. auxiliary contacts
DNV Certificate
DNV Certificate for NFC, NFC..K contactor relays and CA4, CAL4, CAT4 auxiliary contacts with screw, spring or push-in terminals
RINA Certificate
Rina Certificate for AFC09...AFC96 3 pole and 4 pole contactors, NFC relays ,screw and spring terminals
Package Level 1 Units
bag 5 piece
Package Level 1 Width
110 mm
Package Level 1 Depth / Length
110 mm
Package Level 1 Height
30 mm
Package Level 1 Gross Weight
0.13 kg
Package Level 1 EAN
3471523024748
Package Level 2 Units
box 100 piece
Package Level 2 Gross Weight
2.6 kg
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121500
Feature: Front-mounted, two NO auxiliary contacts designed for straightforward installation in ABB AFC contactor assemblies. Business Impact: Reduces wiring complexity and enables precise control signals, lowering installation time and post-installation adjustments. Application: Ideal for control panels using AFC09 through AFC96 contactors where space is at a premium and clear feedback is required. Feature: Screw terminals and robust material compatibility support reliable terminations under industrial conditions. Business Impact: Enhances long-term connection integrity, minimizing maintenance and reducing the risk of loose connections that can cause nuisance tripping. Application: Suitable for flexible and rigid conductor terminations across a wide voltage range up to 690 V. Feature: Compact 43 mm width, 19.9 mm depth, and 23.6 mm height with a weight of 0.024 kg. Business Impact: Conserves panel space and simplifies retrofits in crowded MCCs or machine enclosures, enabling denser control architectures. Application: Fits neatly on AFC09...96 families and NFC relays while preserving easy access for wiring and diagnostics. Feature: Rated for auxiliary circuits up to 690 V and 50/60 Hz with 2 NO contacts (2P). Business Impact: Delivers reliable signaling for status, interlock, and interlock monitoring with predictable electrical performance. Application: Useful for machine safety interlocks, start/stop signaling, and feedback loops in industrial automation. Feature: Compliance with UL, IEC, and GB standards and IP20 protection. Business Impact: Ensures regulatory conformity across regions and reduces risk of contamination or dust ingress in typical panel environments. Application: Enables global deployment in industries requiring rigorous certification and dependable operation in ambient industrial conditions. Feature: Compatibility with AFC09–AFC96 and NFC22E/NFC31E/NFC40E contactor relays. Business Impact: Simplifies sourcing and inventory, shortens design cycles, and minimizes field integration effort. Application: Suitable for retrofit projects and new installations where a common auxiliary block is used across multiple contactor families.
