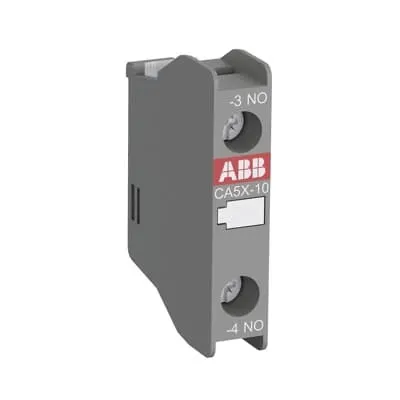

ABB 1SBN019010R1001 Auxiliary Contact Block - 690 V
Part Number: 1SBN019010R1001
Quick Summary
ABB 1SBN019010R1001 Auxiliary Contact Block adds a 1 NC front-mounted contact to ABB AX/NX contactors for control circuits. It simplifies wiring, saves panel space, and reduces downtime during maintenance. Certified CE and UL compliant with RoHS and EAC declarations to support global installations. Designed for quick front mounting on AX/NX series, it reduces spare parts variety and accelerates changeovers. With rated 690 V operation and a compact footprint, it suits a wide range of industrial automation tasks. The block's 10 mm width and screw-terminal design enable clean, reliable wiring in tight control panels and simplify diagnostics, while delivering robust performance across environments.
Product Information
Extended Description
1SBN019010R1001 ABB: CA5X-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AX06…150 contactors and NX contactor relays. CA5X-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
Minimum Order Quantity
10 piece
Customs Tariff Number
85030099
Data Sheet, Technical Information
1SBC100187L0203
Instructions and Manuals
1SBB910513D4501
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
10 mm
Product Net Depth / Length
47 mm
Product Net Height
36 mm
Product Net Weight
0.014 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
1
Rated Operational Voltage
Auxiliary Circuit 690 V | Main Circuit 690 V
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)
(690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.30 A / 66 W | (250 V) 0.30 A / 75 W | (400 V) 2.8 A / 134 W | (500 V) 1 A / 72 W
Rated Short-time Withstand Current Low Voltage (Icw)
for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Terminal Type
Screw Terminals
Suitable For
AX06 | AX09 | AX12 | AX18 | AX25 | AX32 | AX40 | AX50 | AX65 | AX80 | AX95 | AX115 | AX150 | NX
Product Name
Auxiliary Contact Block
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB_CN28662
CCC Certificate
CCC_2013010304656838
CCS Certificate
CCS_GZ13T00025
CQC Certificate
CQC Certificate, Auxiliray Contact, CA5X, CAL5X, Made in China
cUL Certificate
UL-CA-L252354-45-61406102-5
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliray Contact, CA5X, CAL5X, Made in China
Declaration of Conformity - CE
EU Declaration of Conformity CA5X.., CAL5X.., auxiliary contacts
EAC Certificate
EAC_RU C-DE ME77 B03562
UL Certificate
UL-US-L252354-15-61406102-5
Package Level 1 Units
box 10 piece
Package Level 1 Width
65 mm
Package Level 1 Depth / Length
130 mm
Package Level 1 Height
40 mm
Package Level 1 Gross Weight
0.14 kg
Package Level 1 EAN
3471522387912
Package Level 2 Units
600 piece
Package Level 2 Width
220 mm
Package Level 2 Depth / Length
380 mm
Package Level 2 Height
300 mm
Package Level 2 Gross Weight
8.4 kg
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3708078
Feature: Front-mounted design with screw terminals provides direct, secure connections for control circuits. Business Impact: Reduces wiring time and wiring errors by removing the need for rear-access terminals or adapters. Application: Ideal for panel-mounted AX/NX assemblies in machine control enclosures. Feature: 1 NC instantaneous contact rated for 690 V main circuit handling. Business Impact: Enables fast interlocking and status indication with minimal components. Application: Used in stop/start logic for conveyors and packaging lines. Feature: Wide compatibility with AX06 through NX contactors. Business Impact: Streamlines procurement, lowers spares, and enables plug-and-play installation. Application: Retrofit on legacy lines and new builds. Feature: Electrical ratings including I_th = 16 A, Ie AC-15 up to 2 A at 690 V, and Ie DC-13 across multiple voltages. Business Impact: Ensures safe operation within expected duty cycles and supports engineer-approved design margins. Application: Suitable for control circuits in general automation. Feature: Compact dimensions—10 mm width, 47 mm depth, 36 mm height—and 0.014 kg weight. Business Impact: Reduces enclosure load and simplifies handling, enabling cleaner panel layouts. Application: Space-constrained control panels in robotics and packaging systems. Feature: Compliance and documentation including CE, UL, RoHS, EAC, and CMRT. Business Impact: Regs-ready components reduce audit time and speed time-to-market. Application: Global installations in EU, US, and Asia.
Get a Quick Quote for a ABB 1SBN019010R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBN019010R1001?
Enquire Now
FAQs
CA5X-01 is designed as a front-mounted auxiliary contact block for ABB AX series and NX contactors, supporting a single NC contact. It integrates via screw terminals and fits AX06 through NX platforms, enabling plug-and-play installation in most standard control panels.
The block provides one NC contact with a rated voltage of 690 V. For AC-15 applications, Ie up to 2 A at 690 V is supported, with DC-13 ratings around 2.8 A at 400 V and other voltage variants listed in the datasheet. ITH is 16 A, and maximum switching frequencies are 1200 cycles/hour (AC-15) and 900 cycles/hour (DC-13).
Its front-mounted screw-terminal design reduces wiring time and minimizes wiring errors. The compact 10 mm width and straightforward mounting help save panel space, speed up commissioning, and simplify diagnostics during routine maintenance or after a field changeover.
CA5X-01 carries CE and UL declarations, RoHS compliance, and EAC certification, along with CMRT documentation. This combination supports regulatory compliance for global installations and simplifies vendor audits.
The contact block measures 10 mm in width, 47 mm in depth, and 36 mm in height, with a net weight of 0.014 kg. These compact dimensions help minimize enclosure footprint and support clean, scalable control panel layouts.
