ABB 1SBN081018R2000 Connection Set - UL Listed
Part Number: 1SBN081018R2000
Quick Summary
ABB 1SBN081018R2000 Connection Set streamlines star-delta starter wiring for motor control panels. Engineers often contend with miswiring, tight space constraints, and compatibility gaps between contactors and AS/ASL accessories. This solution is backed by CE and UKCA declarations for EU/UK compliance, and UL safety listing, complemented by RoHS, REACH and CMRT commitments. By consolidating the connection set in a single kit, it reduces assembly time, minimizes error rates, and supports scalable panel deployments across automation projects. The compact dimensions and documented data, including 67.3 mm width and 16.6 mm height, help design engineers optimize layouts and stock fewer SKUs. This translates to faster project deliveries and lower total cost of ownership.
Product Information
Extended Description

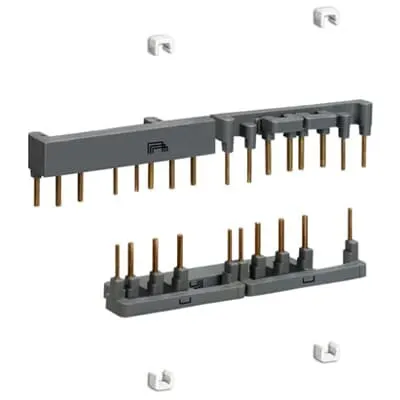

1SBN081018R2000 ABB: BEY16C-3 Connection Set for Star-Delta Starter
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating Instruction BEY16C-3 star-delta starter connection set, AS contactor
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
67.3 mm
Product Net Depth / Length
24.15 mm
Product Net Height
16.6 mm
Product Net Weight
0.041 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Suitable For
AS09 | AS12 | AS16 | ASL09 | ASL12 | ASL16
Product Name
Connection Set
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EU Declaration of Conformity for AS/ASL accessories
Declaration of Conformity - UKCA
UK Declaration of conformity for AS/ASL accessories
GOST Certificate
GOST_POCCCNME77B07822.pdf
UL Certificate
UL_20081024-E312527
UL Listing Card
UL_E312527
Package Level 1 Units
bag 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
20 mm
Package Level 1 Height
80 mm
Package Level 1 Gross Weight
0.041 kg
Package Level 1 EAN
3471523095151
Package Level 2 Units
100 piece
Package Level 2 Width
270 mm
Package Level 2 Depth / Length
360 mm
Package Level 2 Height
220 mm
Package Level 2 Gross Weight
4.3 kg
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
Compact footprint reduces panel width and cable congestion, enabling faster installation and easier future upgrades. The 67.3 mm width, 24.15 mm depth and 16.6 mm height keep the module out of the way of adjacent terminals, while the 0.041 kg weight eases handling and reduces fatigue in field installations. This supports tighter enclosure design and lower material costs. Minimum order quantity of 1 piece and bag packaging streamline BOM accuracy and lean kitting, minimizing procurement lead times and stock misalignments. The product is designed as an AS/ASL accessory for BEY16C-3 star-delta starters, ensuring plug-and-play compatibility with AS09, AS12, AS16 variants, which reduces engineering changes and rework. Compliance with RoHS II, REACH, CMRT, TSCA and WEEE plus CE/UKCA and UL declarations simplifies global deployments, audits, and supplier qualification, while CAD files and data sheets accelerate integration into design workflows.
Get a Quick Quote for a ABB 1SBN081018R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBN081018R2000?
Enquire Now
FAQs
Install the ABB 1SBN081018R2000 Connection Set by first powering down the panel and confirming the BEY16C-3 star-delta starter is compatible with the AS series we use. Mount the connection set to the designated BEY16C-3 mounting points, then connect the lead wires to the correct terminals per the operating instructions. Tighten to manufacturer torque and verify all connections before energizing the system.
It is designed for AS09, AS12, AS16 and ASL09, ASL12, ASL16 contactors and their BEY16C-3 starter configuration. This ensures plug-and-play compatibility with most ABB Star-Delta starter assemblies. Always confirm the exact contactor model against the data sheet and CAD drawings and ensure the correct spacing to avoid misalignment during installation.
This product carries CE and UKCA declarations for EU and UK markets, a UL Certificate and UL Listing Card for safety, and RoHS, REACH, TSCA, CMRT compliance. GOST certification and WEEE designation support operations in additional regions, simplifying audits and international procurement. Together, these declarations help meet regulatory requirements and improve supplier qualification.
The connection set measures 67.3 mm wide, 24.15 mm deep, and 16.6 mm high, with a net weight of 0.041 kg. These compact dimensions support dense panel layouts and easier cable routing in motor control cabinets. The packaging includes a single-piece bag, enabling straightforward counting for BOMs and stocking.
Minimum order quantity is one piece, with Level 1 packaging described as bagged 1 piece and Level 2 shipments containing 100 pieces. This structure supports precise BOM management, lean kitting, and scalable stocking for panel builders. The predictable packaging aids fast load-in, reduces overstocking, and aligns with standard ABB inventory practices across global facilities.
