ABB 1SBN081314R1000 Connection Set - CE/UL Certified
Part Number: 1SBN081314R1000
Quick Summary
ABB 1SBN081314R1000 Connection Set connects phase-to-phase for AF contactors in compact switchgear. In tight panel layouts, miswiring or loose connections can trigger heat buildup, voltage drop, and unplanned downtime. The accessory is designed to meet EN 60947-1 and EN 60947-4-1 standards, with UL 60947-4-1 and CSA compatibility, plus CE and UKCA declarations for global compliance. Its copper-insulated bars and screw-terminal design address reliability and serviceability, while its compact footprint supports efficient wiring, safer installations, and easier ongoing maintenance. By ensuring proper phase alignment and robust connections, it delivers measurable benefits in performance, safety, and total cost of ownership for panel builders and machine OEMs.
Product Information
Extended Description

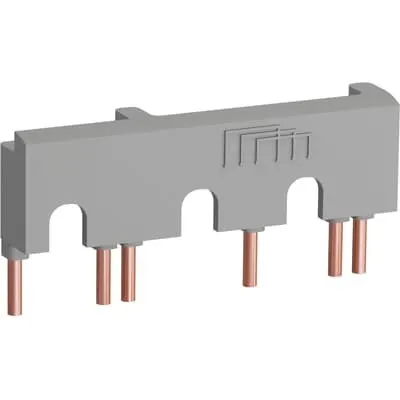

1SBN081314R1000 ABB: BEP16-30 is a connection set used to connect phase-to-phase the main poles of two AF09 ... AF16, AFC09 ... AFC16 or AFS09 ... AFS16 contactors mounted side by side.
The connection sets are made up of:
• 1 upstream and 1 downstream connections
• Insulated, solid copper bars.
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
73 mm
Product Net Depth / Length
14.55 mm
Product Net Height
34.2 mm
Product Net Weight
0.025 kg
Standards
EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Terminal Type
Screw Terminals
Suitable For
AF09 | AF09Z | AF12 | AF12Z | AF16 | AF16Z | AFC09 | AFC12 | AFC16 | AFS09 | AFS09Z | AFS12 | AFS12Z | AFS16 | AFS16Z
Product Name
Connection Set
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EU Declaration of Conformity - BEA.., BER.., BEY.., LY.., LH.., LF.., LG.., LD.. - Accessories for AF(C)(S)09...AF96 contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity - BEA.., BER.., BEY.., BEP.., LY.., LH.., LF.., LG.., LD.. - Accessories for AF09...AF96 contactors
RINA Certificate
Rina Certificate for AF(S)09...AF(S)96 contactors, NF contactor relays and accessories with screw,spring and push-in terminals
UL Certificate
UL-US Certificate of Compliance BEA..-4(K1,KF), BEP.., BER..-4(KF), BEY..-4(KF) and LY..-4 accessories for AF09..(K) ... AF38..(K) contactors | UL-CA Certificate of Compliance BEA..-4(K1, KF), BEP.., BER..-4, BEY..-4 and LY..-4 accessories for AF09..(K) ... AF38..(K) contactors
Package Level 1 Units
bag 1 piece
Package Level 1 Width
120 mm
Package Level 1 Depth / Length
150 mm
Package Level 1 Height
15 mm
Package Level 1 Gross Weight
0.031 kg
Package Level 1 EAN
3471523013797
Package Level 2 Units
box 100 piece
Package Level 2 Gross Weight
3 kg
Package Level 3 Units
840 piece
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39120000
Feature → Business Impact → Application: The phase-to-phase connection set uses insulated copper bars to create a direct main-pole link, reducing contact resistance and heat generation. This translates to higher reliability and longer life under frequent switching in AF09 AF16 combinations. It is particularly well-suited for side-by-side mounting of AF09, AF09Z, AF12, AF12Z, AF16, AF16Z contactors in control cabinets. Feature → Business Impact → Application: Upstream and downstream connections simplify wiring and speed assembly, reducing installation time and potential misconnections. This is ideal when configuring multi-pole arrangements for AFC09, AFC12, AFC16 and AFS variants, delivering consistent performance in panel trains and machine lines. Feature → Business Impact → Application: Screw-terminal design delivers secure, vibration-resistant terminations that maintain low contact resistance in industrial environments. This supports reliable operation during frequent starting and stopping of loads, especially in ATEX or harsh factory settings. Feature → Business Impact → Application: EN 60947-1, EN 60947-4-1 and UL 60947-4-1 compatibility, plus RoHS and CMRT declarations, streamline procurement and regulatory compliance for global projects. This reduces risk for global OEMs needing standardization across multiple regions. Feature → Business Impact → Application: Compact footprint and lightweight construction (73 mm width, 14.55 mm depth, 34.2 mm height; 0.025 kg) save panel space and shipping weight, enabling denser control panels and easier logistics in assembly lines. This is particularly beneficial when integrating with AF09–AF16 family devices in modern automation cabinets.
Get a Quick Quote for a ABB 1SBN081314R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBN081314R1000?
Enquire Now
FAQs
This connection set uses screw terminals and insulated copper bars to connect phase-to-phase on AF09 through AF16 variants. For installation, align upstream and downstream bars with the corresponding main poles, tighten to recommended torque, and verify phase sequence. The compact 73 mm width and 34.2 mm height fit side-by-side mounting in standard control cabinets, speeding assembly.
The accessory is designed to EN 60947-1 and EN 60947-4-1 compliant, with UL 60947-4-1 and CSA compatibility. It also carries CE and UKCA declarations, RoHS information, and CMRT documentation, simplifying global procurement and conformity assessments across regions.
The BEP16-30 connection set is intended for AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AFC09, AFC12, AFC16, AFS09, AFS09Z, AFS12, AFS12Z, AFS16, and AFS16Z contactor combinations, enabling phase-to-phase links for multi-pole configurations.
Copper insulating bars and screw-terminal design provide low resistance, stable connections, and reduced risk of loose contacts under vibration. The integrated upstream/downstream connections simplify wiring, reducing installation errors and maintenance costs while improving run-time reliability in frequent switching scenarios.
By enabling compact, side-by-side mounting with a lightweight 0.025 kg profile and 73 mm width, it frees panel space and reduces assembly time. Fewer wiring errors and faster commissioning translate to lower labor costs and faster time-to-operation for manufacturing lines and automation projects.
