ABB 1SBN083504R1000 Connection Set - CE/CMRT
Part Number: 1SBN083504R1000
Quick Summary
ABB BES75-30 connection set links the main poles of two 3-pole contactors for compact control cabinets. The design addresses space constraints and the need for reliable, repeatable interconnects in panel wiring. It carries CE and UKCA declarations with RoHS and REACH compliance and CMRT reporting, ensuring regulatory and sustainability standards are met. Compatible with AF50, AF63, AF75 and A50, A63, A75 families, plus AX series, it streamlines procurement and reduces field wiring errors, delivering predictable maintenance costs and faster commissioning.
Product Information
Extended Description

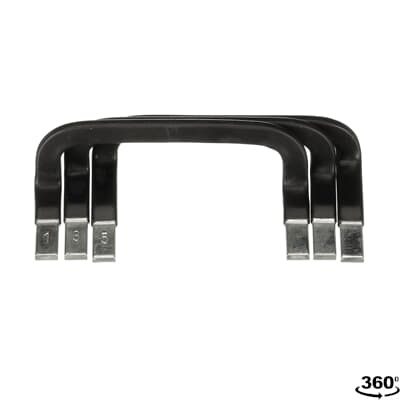

1SBN083504R1000 ABB: BES75-30 is a connection set between the main poles of two 3-pole A50 .. 75 contactors horizontal mounted.
This set is made up of:
• three downstream or upstream connections
• Insulated, solid copper bars.
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100122C0202_Ch04
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
200 mm
Product Net Depth / Length
150 mm
Product Net Height
20 mm
Product Net Weight
0.13 kg
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Terminal Type
Screw Terminals
Suitable For
AF50 | AF63 | AF75 | A50 | A63 | A75 | AX50 | AX65 | AX80
Product Name
Connection Set
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EU Declaration of Conformity Contactor accessories BA50, BEA.., BER.., BEM.., BEY.., BED.., BES.., BL5.., LD.., LY.., LP.., LH.., LF.., LG..., LK..., VM5-1
Declaration of Conformity - UKCA
UK Declaration of Conformity Contactor accessories BA50, BEA.., BER.., BEM.., BEY.., BED.., BES.., BL5.., LD.., LY.., LP.., LH.., LF.., LG..., LK..., VM5-1
GOST Certificate
GOST_POCCFRME77B07175
RINA Certificate
RINA Certificate for A9...A75 contactors
Package Level 1 Units
bag 1 piece
Package Level 1 Width
140 mm
Package Level 1 Depth / Length
200 mm
Package Level 1 Height
20 mm
Package Level 1 Gross Weight
0.13 kg
Package Level 1 EAN
3471522199010
Package Level 2 Units
1 piece
Package Level 2 Gross Weight
0.13 kg
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39120000
