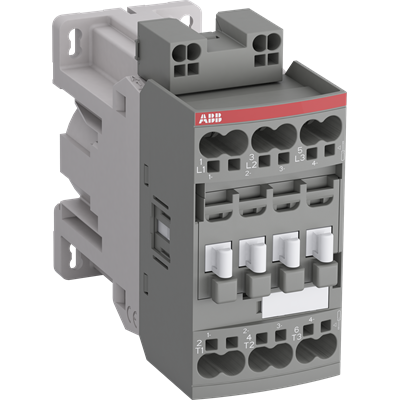

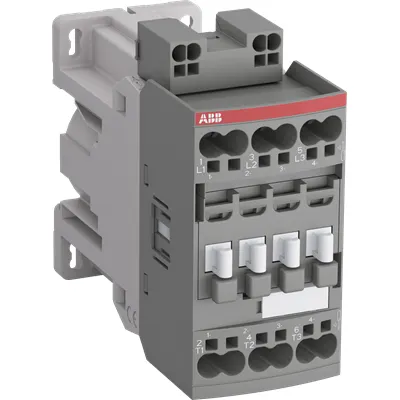

ABB 1SBX207311R2122 Contactor Starter - IEC 60947-4-1
Part Number: 1SBX207311R2122
Quick Summary
ABB 1SBX207311R2122 Contactor Starter is a 3-pole reversing contactor for motor control in industrial automation. Many engineers struggle with space constraints and wiring complexity when upgrading existing systems. This device complies with IEC/EN 60947-1, IEC/EN 60947-4-1, and UL 60335-2-40, helping you pass audits and maintain safety. Its TH35 DIN-rail mounting, 24–60 V control range, and compact form support rapid installation, panel optimization, and lower maintenance. This combination supports scalable projects from small machines to complex lines. With a 3P configuration and two auxiliary NO/NC contacts, field wiring is simplified, reducing commissioning time and error risk. Designed for reliability, the device supports RoHS and CE compliance, enabling smooth procurement and long-term service.
Product Information
Extended Description
1SBX207311R2122 ABB: AF38ZR-30-22-21 24-60V50/60HZ 20-60VDC Reversing Contactor
Minimum Order Quantity
1 piece
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
90 mm
Product Net Depth / Length
119.5 mm
Product Net Height
112.5 mm
Product Net Weight
0.908 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1
Rated Operational Voltage
Auxiliary Circuit 690 V | Main Circuit 690 V
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz | Control Circuit 50 / 60 Hz | Main Circuit 50 / 60 Hz
Rated Operational Current AC-1 (Ie)
(1000 V) 60 °C 42 A | (690 V) 40 °C 50 A | (690 V) 70 °C 37 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 38 A | (440 V) 60 °C 38 A | (500 V) 60 °C 33 A | (690 V) 60 °C 24 A | (380 / 400 V) 60 °C 38 A | (220 / 230 / 240 V) 60 °C 40 A
Rated Operational Current AC-3e (Ie)
(415 V) 60 °C 38 A | (440 V) 60 °C 38 A | (500 V) 60 °C 33 A | (690 V) 60 °C 24 A | (380 / 400 V) 60 °C 38 A | (220 / 230 / 240 V) 60 °C 40 A
Rated Operational Current AC-15 (Ie)
(500 V) 2 A | (690 V) 2 A | (24 / 127 V) 6 A | (220 / 240 V) 4 A | (400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)
(24 V) 6 A / 144 W | (48 V) 2.8 A / 134 W | (72 V) 1 A / 72 W | (110 V) 0.55 A / 60 W | (125 V) 0.55 A / 69 W | (220 V) 0.27 A / 60 W | (250 V) 0.27 A / 68 W | (400 V) 0.15 A / 60 W | (500 V) 0.13 A / 65 W | (600 V) 0.1 A / 60 W
Rated Operational Power AC-3 (Pe)
(415 V) 18.5 kW | (440 V) 22 kW | (500 V) 22 kW | (690 V) 22 kW | (380 / 400 V) 18.5 kW | (220 / 230 / 240 V) 11 kW
Rated Operational Power AC-3e (Pe)
(415 V) 18.5 kW | (440 V) 22 kW | (500 V) 22 kW | (690 V) 22 kW | (380 / 400 V) 18.5 kW | (220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A | for 0.1 s 140 A | for 1 s 100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 690 V | acc. to IEC 60947-5-1 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-15) 1200 cycles per hour | (DC-13) 900 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 24 ... 60 V | 60 Hz 24 ... 60 V | DC Operation 20 ... 60 V
Power Loss
at 6 A per Pole 0.1 W | at Rated Operating Conditions AC-1 per Pole 2.4 W | at Rated Operating Conditions AC-3 per Pole 1.3 W
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M4 screws placed diagonally
Connecting Capacity Main Circuit
Flexible with Ferrule 1/2x 1.5 ... 10 mm² | Flexible with Insulated Ferrule 1x 1.5 ... 10 mm² | Flexible with Insulated Ferrule 2x 1.5 ... 4 mm² | Rigid Solid 1/2x 2.5 ... 4 mm² | Rigid Stranded 1/2x 2.5 ... 10 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Rigid Solid 1/2x 1 ... 2.5 mm² | Rigid Stranded 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Rigid Solid 1/2x 1 ... 2.5 mm² | Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 10 mm | Control Circuit 10 mm | Main Circuit 14 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque
Auxiliary Circuit 1.2 N·m | Control Circuit 1.2 N·m | Main Circuit 2.5 N·m
Terminal Type
Screw Terminals
Product Name
Contactor Starter
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
Connecting Capacity Main Circuit UL/CSA
Rigid Solid 1/2x 14-10 AWG | Rigid Stranded 1/2x 14-8 AWG
Connecting Capacity Auxiliary Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG | Rigid Stranded 1/2x 18-14 AWG
Connecting Capacity Control Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWG | Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA
Auxiliary Circuit 11 in·lb | Control Circuit 11 in·lb | Main Circuit 22 in·lb
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C | Close to Contactor without Thermal O/L Relay -40 ... 70 °C | Close to Contactor for Storage -60 ... +80 °C
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – UL
UL-US A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - UL 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers | UL-CA A2L LZGH2 Certificate of Compliance AF09 ... AF38 3-pole contactors with screw terminals - CSA C22.2 No. 60335-2-40 Household and Similar Electrical Appliances - Safety - Part 2-40: Particular Requirements for Electrical Heat Pumps, Air-Conditioners and Dehumidifiers
CB Certificate
CB Certificate AF26(Z)(B), AF30(Z)(B), AF(Z)(B)38 3-pole contactors, AFS26, AFS30, AFS38 safety contactors
UL Certificate
UL-US Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block | UL-CA Certificate of Compliance AF(C)(S)09(R/M/N)-..(L)(S)(K)...AF(C)(S)38(R/M/N)..(K) 3-pole contactors screw, spring and push-in spring terminals; LDC4 additional coil terminal block; LF16-4, LG16-4, LF38-4 and LH38-4 connecting strips, LD38-4 additional terminal block
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.058 kg
Package Level 1 EAN
3471523019935
ETIM 7
EC000010 - Combination of contactors
ETIM 8
EC000010 - Combination of contactors
ETIM 9
EC000010 - Combination of contactors
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature: Three-pole design with three main NO contacts and two auxiliary NO/NC contacts. Benefit: Enables compact motor control with reduced wiring complexity, cutting panel footprint and installation time, ideal for conveyors, pumps, and packaging lines. Application: Suitable for automotive assembly and packaging machinery where space is tight and reliability matters. Business Impact: Faster commissioning and lower wiring errors translate to higher line uptime and lower labor costs. Feature: 24–60 V control circuit and mains ratings up to 690 V. Benefit: Flexible control integration across standard industrial controls while supporting high-voltage mains safely. Application: Use in panel boards and control cabinets needing versatile voltage buffering and safe isolation. Business Impact: Improves design reuse across machines and reduces spare-part diversity. Feature: Rated AC-3 and DC-13 performance with defined current ratings. Benefit: Predictable switching of motors and accessories, enabling precise overload protection and smoother start/stop sequences. Application: Suitable for motor starters in pumps and conveyors with standard duty cycles. Business Impact: Reduces wear, energy usage, and unexpected downtime. Feature: Power loss and thermal characteristics. Benefit: Low per-pole loss at nominal operating conditions enhances overall efficiency, lowering heat generation in enclosures. Application: Long-running automation lines where temperature rise is a concern. Business Impact: Improves reliability and reduces cooling requirements. Feature: DIN rail mounting and screw-terminal connections. Benefit: Simplifies installation, wiring accessibility, and future maintenance, with secure cable terminations. Application: Ideal for retrofit projects and new builds in control panels. Business Impact: Faster installation, easier diagnostics, and lower maintenance costs. Feature: Compliance and certifications including IEC/EN 60947-1, 60947-4-1, UL 60335-2-40, RoHS. Benefit: Seamless certification across markets and safer products in consumer-grade environments. Application: Global deployments requiring cross-border compliance. Business Impact: Facilitates procurement, reduces certification cycles, and minimizes risk of non-compliance. Feature: Environmental and safety data including IP20 terminals and RoHS. Benefit: Rugged enough for typical industrial installations with protected electrical connections. Application: Panel-mounted starters in machine controls. Business Impact: Improves worker safety and product lifecycle management. Feature: 90 mm net width, 119.5 mm depth, 112.5 mm height, and 0.908 kg weight. Benefit: Predictable form factor for compact enclosures and standardized mounting. Application: Enclosure planning for multi-contactor banks. Business Impact: Optimizes panel density and wiring organization. Feature: Compatible with standard ABB accessories and control schemes. Benefit: Flexible integration with existing control architectures and easy part replacement. Application: Retrofitting legacy lines or upgrading to modern drive systems. Business Impact: Reduces spare parts inventory and accelerates upgrades.
Get a Quick Quote for a ABB 1SBX207311R2122
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBX207311R2122?
Enquire Now
FAQs
This contactor uses TH35 DIN rail mounting, compatible with TH35-15 and TH35-7.5 rails, and features screw terminals for main, auxiliary, and control circuits. It supports flexible wiring with copper conductors and ferrules, suitable for both flexible and rigid wiring, ensuring secure terminations in compact panels and cabinets.
The unit provides rated main-circuit voltage up to 690 V and control-circuit voltage from 24 to 60 V, with auxiliary contacts NO/NC. It offers high short-time withstand ratings and a rated short-time withstand current suitable for AC-15 and DC-13 applications, along with an impulse withstand voltage of 6 kV to support transient events in industrial networks.
Yes. It is a 3P contactor with main NO contacts and auxiliary NO/NC contacts designed for AC-3 and AC-3e operation, making it well-suited for starting and stopping motors in conveyors, pumps, and similar loads. Its 24–60 V control and 690 V main circuit ratings provide versatile compatibility with modern automation architectures.
The ABB contactor lists IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40, and CSA equivalents for safety. It also carries RoHS information and REACH declarations, aligning with CE marking and global electrical-safety requirements to support cross-border deployments and customer audits.
The device offers low per-pole power loss (0.1 W at 6 A per pole) and predictable switching performance, reducing energy waste and wear on contacts. With 3P configuration and robust DIN-rail mounting, maintenance cycles are longer and diagnostics simpler, delivering lower total cost of ownership and faster return on investment in automated lines.
