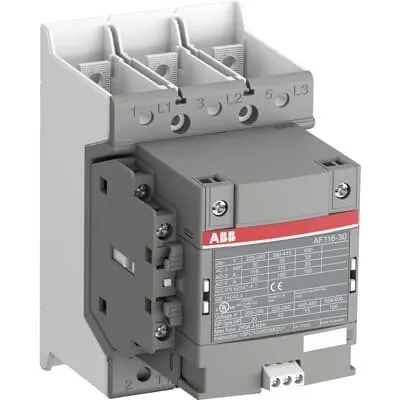

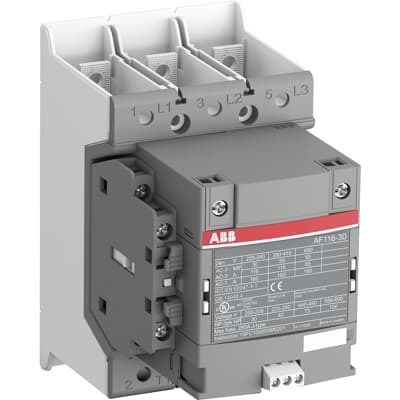

ABB 1SBX214341R1222 Contactor Starter - CE & cUL Listed
Part Number: 1SBX214341R1222
Quick Summary
ABB 1SBX214341R1222 Contactor Starter provides reliable motor control for industrial automation. Engineers face crowded control cabinets and wiring complexity when upgrading starters. It carries CE and cULus certifications with RoHS compliance, plus CMRT reporting, ensuring regulatory alignment from design to field service. The AF116R-30-22-12 base is compatible with standard control panels and offers straightforward wiring for 3NO main contacts and dual NO/NC auxiliaries. This combination delivers smoother maintenance cycles, reduced downtime, and clearer procurement with a single, compliant starter. By aligning with global standards, it supports scalable projects and faster time-to-market for machine builders and system integrators.
Product Information
Extended Description
1SBX214341R1222 ABB: AF116R-30-22-12
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
180 mm
Product Net Depth / Length
126 mm
Product Net Height
177.6 mm
Product Net Weight
4.25 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Power Loss
at Rated Operating Conditions AC-3 per Pole 6 W
Product Name
Contactor Starter
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cULus Certificate, Contactor, AF116-30...AF146-30, AFS116-30...AFS146-30
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116...AF370
Package Level 1 Gross Weight
5.75 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature → Business Impact → Application: The 3 NO main contacts and 2 NO plus 2 NC auxiliary contacts enable flexible control schemes for motor starting, stopping, and interlocking, reducing wiring errors and enabling more reliable sequencing in conveyors and machine tools. This translates to measurable uptime gains and simpler diagnostics in industrial automation environments. Feature → Business Impact → Application: Power loss of 6 W per pole at rated AC-3 duty minimizes heat buildup in control panels, improving cooling efficiency and reducing energy waste. This is beneficial for high-cycle applications such as pumps and fans in process lines where thermal management matters. Feature → Business Impact → Application: The compact footprint (180 mm width, 126 mm depth, 177.6 mm height) and 4.25 kg weight enable easier panel layout and mounting in space-constrained cabinets, supporting faster installation and lower labor costs in OEM assembly. Feature → Business Impact → Application: CE and cULus certifications, RoHS compliance, and CMRT reporting streamline global procurement and regulatory compliance, reducing sourcing risk for international projects in packaging, material handling, and automation. Feature → Business Impact → Application: The availability of a main catalog data sheet and CAD files facilitates accurate engineering design and CAD integration, shortening the design cycle and improving BOM accuracy. Feature → Business Impact → Application: Minimum order quantity of 1 piece and documented tariff number 85364900 simplify procurement and logistics planning for small to mid-size deployments in production lines and retrofit projects.
