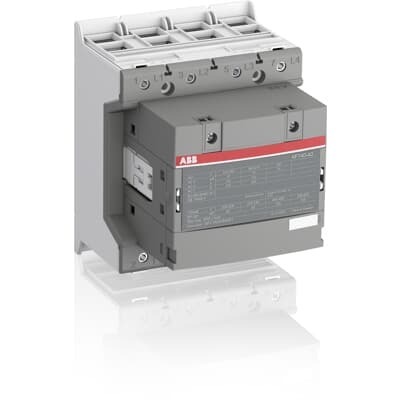

ABB 1SBX215341R1422 Contactor Starter - CE Declaration
Part Number: 1SBX215341R1422
Quick Summary
ABB 1SBX215341R1422 Contactor Starter is a compact motor control unit designed for starter panels and machine automation. Engineers often struggle with space constraints, wiring complexity, and unreliable switching in traditional starter assemblies. This solution carries CE Declaration of Conformity, cULus certification, and RoHS compliance, ensuring regulatory alignment and safer maintenance across industrial environments. Designed for quick installation and straightforward wiring, it delivers a reliable, space-efficient control point that reduces downtime and total ownership cost, while supporting seamless integration with standard motor protection and control schemes.
Product Information
Extended Description
1SBX215341R1422 ABB: AF140R-30-22-14
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
180 mm
Product Net Depth / Length
126 mm
Product Net Height
177.6 mm
Product Net Weight
4.25 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Power Loss
at Rated Operating Conditions AC-3 per Pole 9 W
Product Name
Contactor Starter
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cULus Certificate, Contactor, AF116-30...AF146-30, AFS116-30...AFS146-30
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116...AF370
Package Level 1 Gross Weight
5.75 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: Compact footprint and weight of 180 mm wide, 126 mm deep, 177.6 mm high with a 4.25 kg net weight. Business Impact: Saves valuable panel space and reduces installation time, lowering overall enclosure costs. Application: Ideal for machine automation control cabinets where space is at a premium and easy mounting is essential. Feature: Electrical configuration with 3 main NO contacts and 2 NO/2 NC auxiliary contacts. Business Impact: Provides flexible wiring for start/stop interlocks and signaling, enabling robust starter circuits and simplified diagnostics. Application: Suitable for multi-function motor control in conveyor systems and packaging lines. Feature: Power loss of 9 W per pole at rated operating conditions AC-3. Business Impact: Improves energy efficiency and reduces thermal load, supporting cooler operation and longer component life. Application: Continuous duty motor starts in automation lines. Feature: Certifications and compliance (CE, cUL, RoHS) plus CMRT, REACH, and WEEE documentation. Business Impact: Regulatory alignment, safer maintenance, and easier supplier qualification. Application: Global industrial deployments with strict compliance requirements. Feature: Documentation and data availability (Data Sheet 1SBC100214C0202; CAD drawings). Business Impact: Speeds engineering adoption, enables accurate CAD integration, and minimizes procurement risk. Application: Design validation and panel engineering across various industries.
Get a Quick Quote for a ABB 1SBX215341R1422
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBX215341R1422?
Enquire Now
FAQs
This model offers a 180 mm width, 126 mm depth, and 177.6 mm height with a net weight of 4.25 kg, making it suitable for standard control cabinets. It supports straightforward mounting and wiring alongside typical 3-pole NO main contacts plus 2 NO/2 NC auxiliary contacts, aiding compact, organized panel layouts.
The unit provides three main NO contacts and two auxiliary contact blocks with two NO and two NC contacts. This configuration supports versatile start/stop interlocks, status signaling, and interlocking schemes, enabling robust motor control in automated lines while simplifying diagnostics.
It carries CE Declaration of Conformity and a cUL certificate, along with RoHS compliance. Additional documentation includes CMRT for conflict minerals, REACH declarations, and WEEE classification, supporting global regulatory compliance and safer maintenance across industrial sites.
Power loss is rated at 9 W per pole under rated operating conditions AC-3. This translates to lower thermal rise and improved energy efficiency during continuous duty switching, contributing to cooler operation, reduced cooling requirements, and longer component life in demanding automation environments.
With documented data including a data sheet and CAD drawings, along with proven regulatory compliance, the starter simplifies installation, testing, and future replacements. The compact footprint and reliable electrical performance reduce maintenance time and spare part complexity, delivering lower TCO for panel builders and end users.
