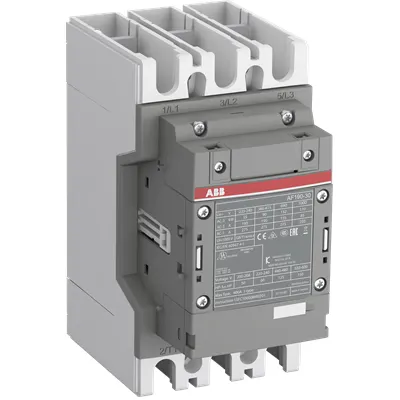

ABB 1SBX217342R1222 Contactor Starter - CE Declaration
Part Number: 1SBX217342R1222
Quick Summary
Contactor Starter is a versatile ABB motor control device used to start and protect three-phase motors in industrial applications. Engineers often face space constraints, complex wiring, and long lead times when sourcing compatible starters for line automation. This unit delivers CE compliance, cULus certification, and RoHS adherence, helping you meet European, North American, and environmental standards. Built for reliability, installation efficiency, and predictable maintenance, it supports motor protection and control within broader automation projects.
Product Information
Extended Description
1SBX217342R1222 ABB: AF190R-30-22-12
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
210 mm
Product Net Depth / Length
152 mm
Product Net Height
247 mm
Product Net Weight
7.4 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Power Loss
at Rated Operating Conditions AC-3 per Pole 9 W
Product Name
Contactor Starter
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cULus Certificate, Contactor, AF190-30, AF205-30, AFS190-30, AFS205-30
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116...AF370
Package Level 1 Gross Weight
8.9 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
3 main normally open NO contacts deliver clean, decisive power switching for three-phase motors, while 2 auxiliary NO and 2 NC contacts provide essential feedback and interlock options. This simplifies control logic and reduces the need for additional relays, cutting panel complexity and wiring errors. Suitable for start/stop sequences in conveyors, pumps, and fans, it streamlines installation in new builds and retrofits alike. Power loss of 9 W per pole at rated AC-3 duty is a measurable efficiency factor, enabling cooler operation, smaller enclosures, and better thermal management in busy control cabinets. This translates into cost savings on energy, space, and maintenance when deployed across multiple starter units in automation lines. With a 210 mm by 152 mm by 247 mm footprint and a 7.4 kg weight, the unit fits typical control cabinets and allows straightforward replacement in legacy panels. The minimum order quantity is one piece, and the package includes access to datasheets and CAD drawings for fast design reviews. Compliance with CE Declaration, cULus, and RoHS aligns with global regulatory requirements, assisting audits while supporting material traceability. Being part of ABB’s AF family ensures consistent performance with compatible motor protection and control components, enabling standardized maintenance procedures and a lower total cost of ownership in production environments.
Get a Quick Quote for a ABB 1SBX217342R1222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBX217342R1222?
Enquire Now
FAQs
Install the unit in a standard control cabinet that accommodates its 210 x 152 x 247 mm footprint and 7.4 kg weight. Provide proper heat dissipation clearance and secure mounting. Wire the three main NO contacts and the two auxiliary NO/NC contacts per your control circuit, ensuring compatible voltages and AC-3 duty per pole for reliable operation.
Configuration includes three main normally open NO contacts, two auxiliary normally open NO, and two auxiliary normally closed NC contacts. It is designed for AC-3 motor switching, with a per-pole power loss of about 9 W, and a total weight of 7.4 kg. The compact footprint supports straightforward installation in standard panel layouts for medium-duty machines.
Yes, the ABB 1SBX217342R1222 Contactor Starter is suitable for AC-3 duty in conveyors, pumps, and fans. Its 3 NO main contacts and 2 NO/2 NC auxiliary contacts support simple start/stop with control logic interlocks, while the robust build and datasheet compatibility minimize debugging and simplify integration in legacy or new automation lines.
It includes a CE Declaration of Conformity for Contactor AF116...AF370, a cULus certification for the AF190-30 family, and RoHS compliance under EU Directives 2011/65/EU and 2015/863. These certificates support regulatory audits, supplier qualification, and environmental responsibility across European and North American markets.
Maintenance and lifecycle benefits come from standardized ABB components, clear documentation, and predictable wear parts. The 1 piece MOQ reduces lead times; CAD files and datasheets speed design reviews; modular auxiliary contacts allow future upgrades without full replacement, delivering lower total cost of ownership across high-availability production facilities.
