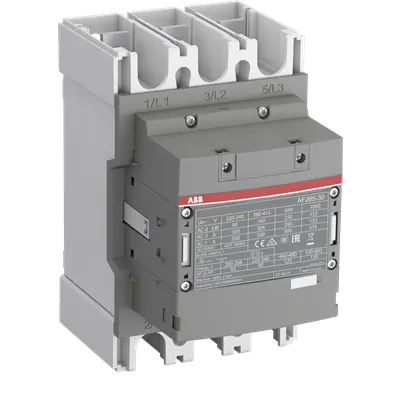

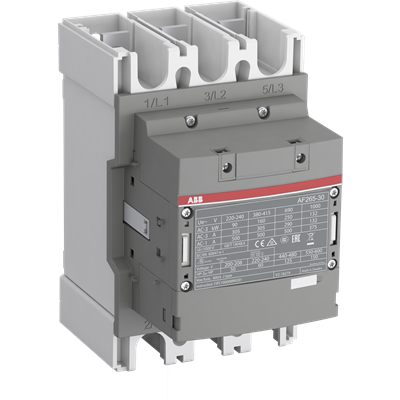

ABB 1SBX220342R1122 Contactor Starter - CE/cULus
Part Number: 1SBX220342R1122
Quick Summary
The ABB 1SBX220342R1122 Contactor Starter enables reliable motor control for industrial equipment. Wiring complexity and startup downtime are common pain points in panel assemblies that this device helps prevent. It carries CE and cULus certifications with RoHS and REACH declarations, supporting safe, regulatory-compliant installations across global facilities. Additionally, its compact footprint, defined power loss per pole, and clear electrical protection features streamline panel design, installation, and ongoing maintenance, helping you reduce downtime and total cost of ownership. For procurement, the minimum order quantity is one piece and CAD data is available to simplify integration. In short, this ABB starter supports reliable, energy-efficient motor control with straightforward integration into protection and control schemes.
Product Information
Extended Description
1SBX220342R1122 ABB: AF265R-30-22-11
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
280 mm
Product Net Depth / Length
180 mm
Product Net Height
258 mm
Product Net Weight
11.6 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Power Loss
at Rated Operating Conditions AC-3 per Pole 14 W
Product Name
Contactor Starter
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 76.3 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 33 %
cUL Certificate
cULus Certificate, Contactor, AF265, AF305, AF370, AX260, AX300, AX370, AFS265, AFS305, AFS370
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116...AF370
Package Level 1 Gross Weight
13.1 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: 3 main normally open contacts with 2 normally open and 2 normally closed auxiliary contacts. Business Impact: Enables multi-point signaling and interlocking, reducing wiring complexity and improving fault detection. Application: Ideal for three-phase motor startups in AC-3 applications such as conveyors and pumps. The integrated configuration simplifies wiring diagrams and panel layouts while maintaining robust control. Feature: Power loss of 14 W per pole at rated operating conditions. Business Impact: Improves energy efficiency in continuous duty and idle states, lowering running costs. Application: Beneficial for factories pursuing energy-conscious motor control strategies in manufacturing lines.Feature: Product dimensions 280 mm width, 180 mm depth, 258 mm height with a weight of 11.6 kg. Business Impact: Provides a durable, space-conscious enclosure fit and predictable mounting in standard control panels. Application: Panel builders benefit from consistent footprint and weight for easier enclosure planning and mechanical design.Feature: RoHS, REACH compliance, CMRT, and WEEE B2B alignment. Business Impact: Ensures regulatory compliance across global supply chains, reducing risk and easing supplier audits. Application: Suitable for regulated industries requiring traceable material declarations and responsible end-of-life planning.Feature: Data sheet access and CAD dimensional drawings. Business Impact: Accelerates design integration and reduces field modification time. Application: Engineers can quickly verify fit, clearances, and wiring paths during the early design phase.
Get a Quick Quote for a ABB 1SBX220342R1122
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBX220342R1122?
Enquire Now
FAQs
Yes. It features three main normally open contacts and two normally open plus two normally closed auxiliary contacts, designed for 3-pole motor control in AC-3 applications. Its 280 mm wide, 180 mm deep, 258 mm high footprint and 11.6 kg weight suit standard control-panel layouts, while the data sheet 1SBC100214C0202 provides exact mounting and wiring guidance.
The unit provides 3 NO main contacts, 2 NO and 2 NC auxiliary contacts, and a generator-friendly power loss of 14 W per pole at rated AC-3. This combination supports reliable switching for three-phase motors, with a robust mechanical footprint suitable for panel integration and long-term durability.
The Contactor Starter carries CE and cULus certifications, with RoHS and REACH declarations. It is also associated with CMRT, WEEE classification, and a CE Declaration of Conformity, ensuring regulatory compliance across European and North American installations.
It is well-suited for three-phase motor control in conveyors, pumps, and manufacturing lines where AC-3 duty is typical. The integrated auxiliary contacts support signaling and interlock schemes, while the packaging and mounting fit standard industrial control panels and switchgear assemblies.
A key procurement factor is the Minimum Order Quantity of 1 piece, which simplifies stocking for large or small projects. The device’s energy-efficient 14 W per pole loss and robust compliance reduce maintenance and audit risks, delivering a favorable ROI over traditional starter configurations.
