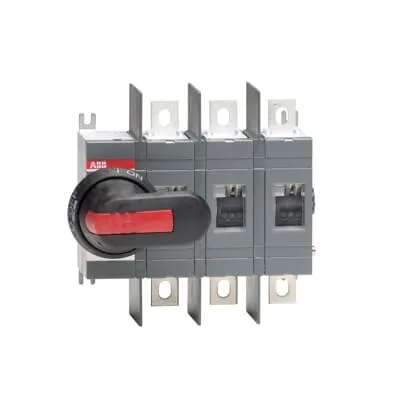

ABB 1SCA022709R9920 Switch-Disconnectors - UL/IEC 60947-3
Part Number: 1SCA022709R9920
Quick Summary
ABB 1SCA022709R9920 Switch-Disconnectors provide safe isolation for 3-pole power circuits in industrial panels. Manufacturers often struggle with unavailability, unclear wiring, and noncompliant devices that lead to costly downtime. This unit aligns with IEC 60947-3 and UL/CSA certifications, supporting CE conformity and robust environmental performance. Engineers benefit from a straightforward installation path and documented sustainability data, delivering safer operations and long-term cost efficiency. In practice, the device's 3P configuration, 200 A rating, and 12 kV impulse withstand support reliable motor control and safe shutdown in demanding environments. With ABB EcoSolutions resources and compatible data sheets, procurement teams can streamline sourcing, standardize specifications, and reduce lifecycle risk. This combination of performance data, environmental declarations, and global certifications helps engineers justify compliance investments to management.
Product Information
Extended Description
1SCA022709R9920 ABB: Including handle: NEMA 1, 3R, 12, IP65 and shaft
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
c48b7e8f-ee4a-4af1-a5f4-471646a1efd5 Finland (FI)
Simplified SCIP
46fe5751-1023-493a-82ce-965b99a47208 Germany (DE) | 5425f531-05a1-4679-b0d9-41e38c629813 Poland (PL) | 4617fdda-87e8-4366-a0c1-797c614495d4 Belgium (BE) | c5be3584-0e5d-4885-a056-8b9ac5018108 Belgium (BE) | e3cee81a-fce3-42e3-a132-06e0ad0ee69d Portugal (PT) | 922476d1-7312-4dd8-9607-9c9ac6e56a88 Greece (GR) | 67ee7a69-a51d-4611-8a42-c093e07d7dad Netherlands (NL) | d27bd255-7129-4e16-b42a-1a27488cbe14 Spain (ES) | ff199b5c-2223-4ce5-9f30-d8f9c2b1c885 Poland (PL) | c8926243-37d8-4fef-8c02-5ffe86a000c6 France (FR) | 6218f309-96ca-4a83-b134-23112eeb8e59 Denmark (DK) | 758be8d4-972f-404f-a50f-7a7e170a1fb8 Germany (DE) | 8edbd078-0f7e-4393-a28f-5c920f36802f France (FR) | 86eed0d4-35d6-46ae-b5b4-8767cc19df19 Hungary (HU) | a13f0d8e-92a7-4c9a-ae81-f2e1f9ecaf5d Sweden (SE) | 4d6e83da-1e7b-45a2-8bf1-861c2dae9c7a Germany (DE) | 5d8581ce-164c-4fae-9a70-b3619e0c0af1 Sweden (SE) | 67015a32-3dc8-40b2-98cc-1a8d33ad1348 Germany (DE) | df6a5de5-8337-4aeb-9445-3d151308501d Italy (IT) | fd81bed9-13b5-4a47-b811-18e8d07ed264 Czech Republic (CZ) | 6bf685db-1e3a-4107-b400-f1a7e3639098 Hungary (HU) | a2a561f8-6c84-4758-8629-c2ee7e3e3ee0 Estonia (EE) | 07582f2e-4c16-4fd2-9c28-c9d9cec194cb Croatia (HR) | 8b146e65-9779-4493-9d08-5e87fdbf4857 Norway (NO) | c099bd63-6bd9-46a8-bd1b-d8c07366627f Germany (DE) | e7c85542-c51e-4868-bef7-0a7f622b2fee Bulgaria (BG) | affc8bae-7ebc-4825-99bb-77a80cc58c16 Poland (PL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200U03, dwg-file | OT200U03, dxf-file | OT200U03.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
169.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.8 kg | 3.9 lb
Package Level 1 EAN
6417019225920
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(690 V) 200 A | (500 V) 200 A | (380 ... 415 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Lug terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
BV Certificate
1SCC301103D0201
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
GL Certificate
1SCC301139D0201
LR Certificate
1SCC301144D0201
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3660850
Feature: The 3P ABB OT200 switch-disconnector uses base mounting with lug terminals and a front-operated mechanism. Business impact: this configuration delivers dependable isolation for demanding lines, reducing sequence errors during panel commissioning and lowering risk of accidental energizing. Application: perfect for distribution boards and motor feeders in conveyors, pumping stations, and packaging lines where quick, safe shutdown is essential. Feature: High current and voltage ratings with 200 A rated current and 1000 V insulation, plus 12 kV impulse withstand. Business impact: supports high-duty cycle applications while maintaining voltage withstand and reliable disconnection under fault conditions, reducing nuisance trips and equipment damage. Application: suitable for main feeders and machine sections in process automation, packaging lines, and water treatment stations, meeting IEC 60947-3 and UL requirements. Feature: Robust mechanical durability, 20000 cycles, and integrated safety provisions such as lockable operation. Business impact: minimizes maintenance downtime and extends service life in harsh environments, while facilitating compliance with lockout-tagout practices. Application: ideal for front-operated switches in control cabinets and switchgear in automotive, food & beverage, and chemical processing facilities. Feature: IP00 front protection with a 169.5 mm width and 170 mm height footprint plus 82.5 mm depth and 1.6 kg weight, with lug terminals for 20 mm spacing. Business impact: simplifies cabinet layout, reduces mis-wiring risk, and speeds installation across standard enclosures. Application: well-suited for base-mounted assemblies in distribution panels and process lines. Feature: Comprehensive compliance and environmental data including CE DoC, UL certificates, RoHS, CMRT, and SCIP. Business impact: reduces supplier risk and accelerates audits for regulated industries, enabling faster approvals and easier lifecycle management. Application: ideal for global projects with strict regulatory needs and sustainability reporting.
Get a Quick Quote for a ABB 1SCA022709R9920
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022709R9920?
Enquire Now
FAQs
This unit is designed for base mounting with lug terminals and a front-operated mechanism, supporting 3P configurations in panels with 169.5 mm width and 170 mm height. It includes a handle and shaft, and is compatible with NEMA 1, 3R, 12, and IP65 variants. Verify terminal spacing (20 mm) and torque (22.6 N·m) during wiring to ensure a safe, compliant fit.
Key specs include 200 A rated current (AC-21A/AC-23A depending on voltage), 1000 V rated insulation, 12 kV impulse withstand, 30 kA short-circuit making capacity at 690 V, 8 kA for 1 s short-time withstand, and IP00 protection. It supports up to 1000 V mains and 690 V fault conditions with reliable disconnection.
Ideal for motor feeders, distribution boards, and control cabinets in manufacturing, packaging, and process automation. Its 3P design, 200 A rating, and robust fault isolation make it suitable for conveyors, pumps, and line-start equipment. It also fits within IEC 60947-3 compliant installations and UL/CSA regulated projects.
The device carries CE conformity, UL/cULus certificates, and CSA recognition, with IEC 60947-3 as the standard. Additional environmental and materials data include RoHS compliance, CMRT, SCIP, and an EPD. These certifications simplify cross-border procurement and support sustainability reporting.
Mechanical durability is rated at 20,000 cycles with a lockable mechanism and documented torque specs (22.6 N·m). The included handle/shaft and modular design reduce replacement time, while ABB EcoSolutions support disassembly and lifecycle management. Expect lower downtime, streamlined maintenance, and a clearer path to regulatory compliance.
