ABB OT200E03P Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022712R0800
Quick Summary
ABB OT200E03P switch-disconnector is a 3-pole, front-operated device designed to isolate main circuits in electrical distribution and machinery control. This compact, base-mounted solution reduces panel footprint while simplifying maintenance. The unit leverages a black IP65 handle option for safer operation in challenging environments and aligns with IEC 60947-3 standards, reinforcing reliability across installations. It also carries CE conformity along with BV and DNV GL certificates, supporting regulatory compliance and supplier qualification. With lug terminals, a 20 mm terminal width, and straightforward assembly, this switch-disconnector offers measurable business value through faster commissioning, reduced downtime, and lower lifecycle costs for panel builders and industrial integrators.
Product Information
Extended Description

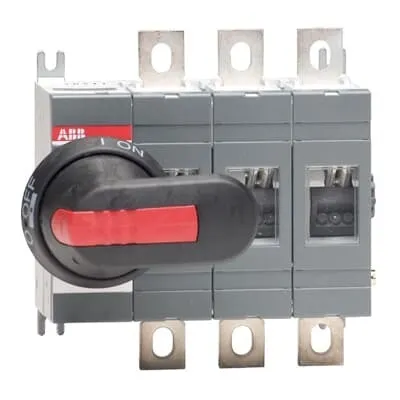

1SCA022712R0800 ABB: 3-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
e76f6a16-d3db-4570-b154-2da087b79f14 Finland (FI)
Simplified SCIP
21647494-bad3-44fc-b28f-28a02a60ef4c Germany (DE) | 94aeb75b-4caa-4f34-8224-4d6a48b1226f Germany (DE) | 97494682-ae73-4bb9-b7ae-2e0990779580 Bulgaria (BG) | 4c3d3f64-8002-4976-a6de-4550bd2c2564 Greece (GR) | 6b742a29-c37c-496a-930e-317c82a5c5d8 Portugal (PT) | c10f5ab2-c439-4669-8dab-744cb3a23205 Germany (DE) | f57caf15-67a4-4cc2-8c5d-7967ecb0177a France (FR) | c3f15763-5f9a-464d-9694-91fa9be87427 Poland (PL) | e0bc9149-62f4-4022-be24-a9e86b72022a Czech Republic (CZ) | 56977ec8-982b-4f66-a84b-7de170b6a034 Germany (DE) | 056d4b8f-e30c-4b9d-8534-280d62839f15 Germany (DE) | 02f076c8-db55-493b-9184-e154ddffdfdb Croatia (HR) | 0f723643-fc51-421e-a175-f92295bb823d Estonia (EE) | f8d3b8dd-7eae-4abf-a8d0-3b430aecd50d Italy (IT) | 89e7cc8b-1209-4fa6-8dbe-3b527e58b909 Belgium (BE) | 93905029-08c6-4b24-937d-246faec429fd Poland (PL) | 571453b7-c23a-41d8-94be-77ec02f481ec France (FR) | a5f8d387-06ad-490c-9dbc-114f2de16586 Sweden (SE) | b7c5adba-0f0c-48c1-9b48-c06d54558de4 Hungary (HU) | 833d5ec1-a03f-4ce2-bcee-ff2dc6af1afe Netherlands (NL) | 64aad036-2b38-4bcc-9e0b-4060eb198609 Hungary (HU) | 8e699c60-4e74-49ce-be85-337ebedd8b5a Denmark (DK) | fef3dd11-c86a-4473-aac9-51d7bd1d63e1 Poland (PL) | cf1bfaa8-c414-4242-b16e-c7483123eb29 Sweden (SE) | 640a2dcb-b8c8-470f-97a4-a5a39fa70542 Spain (ES) | 46a1e8ad-e298-4ae5-beb5-f6626dc83b6a Belgium (BE) | b2517ca7-cc75-4371-a0c8-623835199d68 Norway (NO)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250E03, dwg-file | OT200...OT250E03, dxf-file | OT200-250E03.stp | OT200-250E03.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
145.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1.6 kg | 3.6 lb
Package Level 1 EAN
6417019227740
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Lug terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
BV Certificate
1SCC301103D0201
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
GL Certificate
1SCC301139D0201
LR Certificate
1SCC301144D0201
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3661302
E-Number (Norway)
4337850
E-Number (Sweden)
3171156
