ABB 1SCA022720R0230 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022720R0230
Quick Summary
ABB 1SCA022720R0230 Switch-Disconnectors provide reliable isolation for three-pole power distribution in industrial panels. Managing maintenance and downtime is easier when you select a switch-disconnector designed for fast, safe operation. This device carries CE conformity and a DNV GL certificate, is aligned with IEC 60947-3, and features a front-operated mechanism for quick access. By combining base mounting with lug terminals and a robust black IP65 handle, it supports compact layouts and safer servicing. The result is predictable performance, easier compliance documentation, and faster installation in control cabinets and switchgear, helping you reduce downtime and improve overall plant reliability while supporting scalable automation strategies.
Product Information
Extended Description

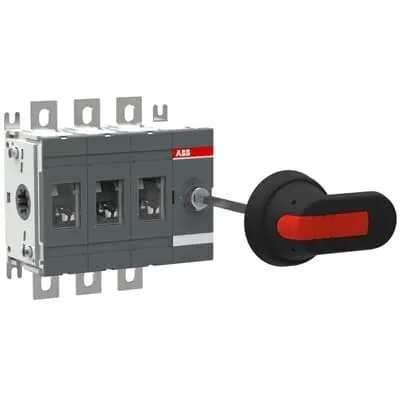

1SCA022720R0230 ABB: 3-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
f89cee49-bdf8-496b-a2b3-b9102cf89e0f Finland (FI)
Simplified SCIP
dde1c9ff-28ea-4081-b18b-5da7a8499a68 Germany (DE) | 982ef349-e81b-4c8c-a7c4-7dc671f8c2fd Norway (NO) | 40265fa4-abd5-40f0-9061-5ee5c9295f51 Portugal (PT) | edca7b03-4476-4f66-8ae1-9f937d23e951 Sweden (SE) | f7c9316b-6b9f-4f46-8e23-366b4f643f6a Germany (DE) | d848d12a-a8f4-4d1b-8cc2-c0b3b5168f30 Poland (PL) | f09ab7df-2c4a-48de-a050-0b779bf019a0 Germany (DE) | e010bfea-7504-447c-a070-df19220e2fa9 Poland (PL) | b935f181-0149-4313-83c2-a18763e21cdf France (FR) | 4f38484d-d707-481a-b8ec-4f6e3f85f6f4 Estonia (EE) | 3797ff52-1a77-4b48-adcb-53bfc5884470 Greece (GR) | 780672fb-5f05-430a-9faa-a30e5c68daeb Bulgaria (BG) | bc527667-5136-4bc3-8f30-3049d2a6d1ea Spain (ES) | 0786928a-63ed-4e16-9170-47debbb60a79 Hungary (HU) | 293e7d71-8e41-4733-b59a-7efd3a8ac513 Belgium (BE) | 9df39f9f-f401-47ab-b3ec-dc9fbf2f5f8d Czech Republic (CZ) | caae47de-0db0-44d0-8424-c525655eba31 Croatia (HR) | 66a2fc5f-a45c-4993-8923-923158751092 Denmark (DK) | 23be6341-444e-488d-8457-c29bba8cdd4e France (FR) | 1320b84b-80df-40fe-bd67-caeb08c4f57f Italy (IT) | 0ae5bd43-0482-4c65-952a-a57f7cbf86a8 Belgium (BE) | ac8a9441-0e1a-4caf-84e5-fe829bd9d2db Netherlands (NL) | 324e3faa-0684-47ed-a78b-f2081fb9981b Poland (PL) | f8a9c8b0-d30b-4298-8c0a-3a97c99746f3 Hungary (HU) | 47fe52ff-7df8-4be2-8bbc-86db01b3b586 Germany (DE) | a4842329-65be-45a4-91d7-da7891c69a06 Germany (DE) | 095b730f-1d9a-4c82-a677-df60bd89b40f Sweden (SE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
145.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.3 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1.4 kg | 3.2 lb
Package Level 1 EAN
6417019231297
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3661310
E-Number (Norway)
4337852
Three-pole front-operated design simplifies safe isolation, reducing operator exposure during servicing. This geometry supports quick rowing through the handle and predictable intermediate positions, enabling reliable lock-out-tag-out. The arrangement is ideal for control cabinets, motor-control centers, and switchgear assemblies where fast disconnection at the main circuit is critical for maintenance windows and safety compliance. Base mounting with lug terminals enables clean, compact wiring and sturdy terminations. The 200 A rated Ie remains consistent across voltages from 380 to 690 V, reducing the need for multiple devices in a single line. Installers benefit from standardized torque specs (15–22 N·m) and a straightforward wiring scheme, cutting installation time and minimizing human error. Electrical robustness includes an Icm of up to 30 kA, Icw of 8 kA for 1 s and a rated insulation voltage of 1000 V, providing dependable fault clearance for mixed-load panels and meeting IEC 60947-3 requirements. Durability is designed for 20000 mechanical cycles with a lockable mechanism and a front-operated control handle plus shaft included, supporting safe, repeatable operation in demanding environments. Compliance is reinforced by IEC 60947-3 conformity and CE declarations, with a robust 3P configuration, standard lug terminals, and defined mounting footprint that simplify retrofit projects and new builds while helping you maintain regulatory alignment across regional electrical standards.
