ABB 1SCA022720R0400 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022720R0400
Quick Summary
ABB 1SCA022720R0400 switch-disconnector is a four-pole, front-operated isolation device designed for base mounting in switchgear to reliably isolate circuits. Engineers often face downtime when disconnectors lack robust mounting or fail under frequent operation, driving maintenance delays and safety risks. This solution carries CE conformity and a DNV GL certificate, with RoHS compliance and a front IP00 enclosure complemented by a durable IP65 handle option for harsh environments. The IEC 60947-3 standard alignment and 200 A Ith capability deliver tangible business value by enabling safer maintenance, faster service, and scalable integration in distribution panels and motor control centers.
Product Information
Extended Description

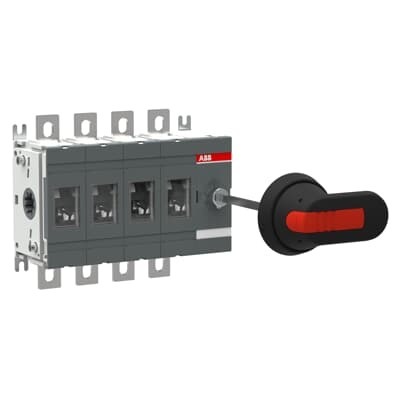

1SCA022720R0400 ABB: 4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
dfe6c6ca-d236-4ac7-b206-b8d64318beff Finland (FI)
Simplified SCIP
000e97a8-da03-4487-9c4b-4ee71e3c8c59 Germany (DE) | 28e2aac3-9f60-4370-bdb4-59ab8dd60773 Norway (NO) | 9685a084-4d55-4fbd-b106-93f13b57b442 Portugal (PT) | b2b98256-7a63-4ae8-9fef-7dcbbfbe4a37 France (FR) | d6426aef-6b11-47d8-bc72-dc5af8bce87b Sweden (SE) | 49e4ad3c-79a2-4454-b646-5dc455bd2d98 Germany (DE) | 39675fae-9242-4c1a-8b9f-63761716a2b0 Poland (PL) | e1bd1102-2b30-450f-b7aa-c8f7abfcd345 Poland (PL) | 68fa6431-fd90-4329-94b6-0da7bc7989f1 Germany (DE) | 34eb2977-ed0b-41a1-b0f5-f91e7ab74666 Poland (PL) | 754345b0-cb0d-4cb5-b4b5-e889a9843ede Estonia (EE) | 8de64cbb-42ed-45ff-89fe-fa9a288750a7 Bulgaria (BG) | b10527ed-3277-486c-be2c-995c3cabf2b9 Greece (GR) | f072484b-e0c2-4b07-a70d-b4d914e6fbb5 Belgium (BE) | 36148d3d-6cfe-4e16-b1e1-837776a6716b Spain (ES) | 366783c3-81fc-4949-8cb3-b86d7561bdcc Hungary (HU) | 38f7959d-9f88-4f44-a233-823b85fa24de Croatia (HR) | d3b254fe-7e62-4ba8-8647-3ef5c608455d Denmark (DK) | 8894c70b-694b-45c9-b46f-7b9ac10f8fc1 Czech Republic (CZ) | 49768658-5829-4f66-8075-08f97f9353e5 France (FR) | a7e880c5-959e-4215-8b7d-1e5ddc6184a5 Germany (DE) | 9cac6fc1-4b52-4b31-b971-2c2fb0ce4dc2 Italy (IT) | 653da6df-81c3-4386-b714-de86e347e3ca Belgium (BE) | ce1c5d5f-c008-4755-94dc-1b6287f0033a Netherlands (NL) | acc96dc4-399e-4742-88ad-193060298d11 Hungary (HU) | 179ed73a-a15c-44d2-857b-ba23fe3e411e Germany (DE) | 96594bbe-638f-4222-afd8-f70d56ff9312 Sweden (SE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
180.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.69 in
Package Level 1 Depth / Length
190 mm | 7.48 in
Package Level 1 Height
145 mm | 5.71 in
Package Level 1 Gross Weight
2.1 kg | 0.93 lb
Package Level 1 EAN
6417019231310
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 40 (Right Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3661312
E-Number (Norway)
4337853
Feature 1: Four-pole, front-operated, base-mounted design provides predictable, ergonomic operation and straightforward installation in compact panel spaces. Business impact: reduces installation time and misconnection risk, enabling quicker commissioning in switchgear assemblies and MCCs. Application: ideal for base-mounted switchgear in manufacturing plants and process facilities. Long-tail keywords: switch-disconnector 4P, front-operated isolation, base mounting switchgear. Feature 2: 200 A Ith and 200 A Ie rating supports heavy-duty switching without reconfiguring existing wiring, lowering upgrade costs. Business impact: minimizes downtime during routine operations and fault isolation. Application: distribution panels and motor control centers requiring reliable current handling. Long-tail keywords: high-current switch disconnectors, 200 A industrial switch, load-switching reliability. Feature 3: Voltage and impulse ratings—Uimp 12 kV, Ui 1000 V—enable multi-class usage with a single module. Business impact: reduces inventory and simplifies procurement across mixed voltage environments. Application: low-to-medium voltage distribution and switchgear. Long-tail keywords: 12 kV impulse withstand, 1000 V insulation, IEC 60947-3 compliance. Feature 4: Lug terminals with specified tightening torque (15–22 N·m) and lockable handle enhance secure connections and safe maintenance. Business impact: lowers connection failures and improves operator safety. Application: field installations in exposed panels and busy production lines. Long-tail keywords: lug terminals, tightening torque, lockable handle. Feature 5: Mechanical durability of 20,000 cycles and robust handle (IP65 option) support long service life in demanding environments. Business impact: reduces total cost of ownership through fewer replacements and downtime. Application: continuous operation in harsh industrial settings. Long-tail keywords: 20000 cycles, IP65 handle, robust maintenance-free operation. Feature 6: IEC 60947-3 compliance with CE and RoHS declarations simplifies regulatory procurement and audit trails. Business impact: accelerates compliance reviews and supplier qualification. Application: panel builders and OEMs delivering regulated electrical protection products. Long-tail keywords: IEC 60947-3, CE conformity, RoHS compliant.
