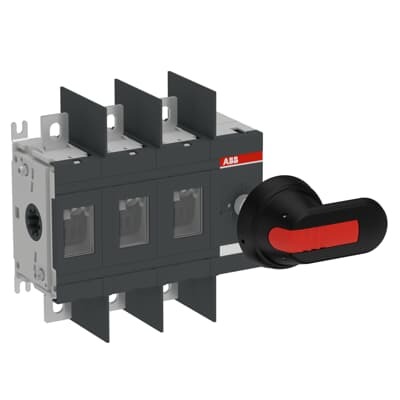

ABB 1SCA022720R0580 Switch-Disconnect - IEC 60947-3
Part Number: 1SCA022720R0580
Quick Summary
ABB 1SCA022720R0580 Switch-Disconnect is a high-current device that safely interrupts mains in motor drives and industrial panels. Engineers often struggle with downtime and unsafe disconnections when selecting protection switches for complex electrical cabinets. It carries IEC 60947-3 compliance along with UL/cUL and CSA certifications, and CE declarations, ensuring global acceptance. With front-operated action, 3P configuration, and a 1000 V insulation rating, it provides reliable protection with straightforward installation and service in demanding plant environments.
Product Information
Extended Description
1SCA022720R0580 ABB: Including handle: NEMA 1, 3R, 12, IP65 and shaft
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
980eed92-cb41-428e-8caf-ab8a3c4170a8 Finland (FI)
Simplified SCIP
46146cb9-7bd5-4d89-bf76-bfc81b836db6 Germany (DE) | d2aa0fb1-d00c-494d-8028-2837de297857 Denmark (DK) | ba72d7cd-3374-46b0-9ae7-98a519d3b098 Spain (ES) | 7725e3c2-becb-44e4-b03a-c972d1ae7ef6 Belgium (BE) | 39ace215-2a26-4b0a-bd80-c318cf598f0f Belgium (BE) | 8337307e-c9dc-4821-8e37-51668ed4641a Poland (PL) | 8192490a-a8b3-404f-a483-f1930cf58df4 Germany (DE) | ecf64604-fbc3-44ac-9053-ca2e7d2e7c8e Portugal (PT) | 64c1f3c3-1282-48c5-8b39-91c36ac3eaaa Greece (GR) | 5736a86b-7a97-4d39-9ef8-3a78ecfa34a9 Netherlands (NL) | f7ff1f5a-743f-4ff6-8e9a-fd344728cf80 Germany (DE) | 89cf4d54-dbb5-42ce-83cf-9c3a0f27d436 Sweden (SE) | c661fb8f-5393-446c-8bad-e34770e77af1 Hungary (HU) | 4cd08129-91c4-4b42-87df-fade8a862030 France (FR) | 87737022-9452-4dc1-8d65-54ba3d4c2f65 Germany (DE) | 25824ce8-499d-4a94-8b80-9a69909c5a81 Czech Republic (CZ) | dd1fa40b-365d-4b21-a7cd-60e5f729b975 Poland (PL) | 028dbe4c-d870-4d88-b1dc-33f890636f7c Hungary (HU) | 67216764-9cc5-4891-b195-49e357d19d03 Estonia (EE) | 3d82e2c0-1528-4711-98da-31caa42555f3 Croatia (HR) | ba737695-d8ae-41fe-85d8-63069d7dd182 Italy (IT) | 441e2a99-02f6-4f0f-a1dc-fefe50316920 Norway (NO) | 06e209ac-8f5a-4913-90f6-517f66fc9f1b Germany (DE) | 35296bb5-66f1-4cd2-97ff-4c1d631ae95c France (FR) | 937155ec-64c8-4a41-b4bd-69e009cbd67e Sweden (SE) | 969c312c-89d8-4b73-ba68-1a1f102158e9 Bulgaria (BG) | 771eda82-e832-424b-b72e-ee1caa82b5ff Poland (PL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250U30, dwg-file | OT200...OT250U30, dxf-file | OT200-250U30.stp | OT200...OT250U30, igs-file
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
169.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.8 kg | 3.9 lb
Package Level 1 EAN
6417019231327
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: High current and voltage capability supports 250 A at 380–415 V and 1000 V insulation. Business Impact: Enables safe, robust stopping of large motors and feeders, reducing fault exposure and unplanned downtime. Application: Motor control centers and power distribution panels in manufacturing lines. The advantage is clear in uptime metrics and safer maintenance windows. Feature: Front-operated 3P mechanism with lock option and 30-position quick access. Business Impact: Simplifies operation, improves operator safety, and enforces lockout-tagout discipline, cutting incident risk. Application: Routine disconnections during maintenance in process plants. Feature: Mechanical durability rated at 20,000 cycles and lug terminals for secure wiring. Business Impact: Long service life with predictable maintenance planning and reduced contact resistance over time. Application: Frequent switching environments in harsh factory settings. Feature: Compact footprint with base mounting and 169.5 mm width. Business Impact: Saves panel space, improves cabinet routing, and reduces enclosure costs. Application: Control cabinets with limited mounting area. Feature: Comprehensive compliance and documentation including CE declaration, EPD, CMRT, REACH, and TSCA. Business Impact: Lowers regulatory risk and speeds audits; supports supply chain transparency. Application: Industries with strict material and environmental reporting. Feature: Safety and protection features including IP00 front protection, locking, and 22.6 N·m tightening torque. Business Impact: Ensures reliable enclosure integrity and secure terminal connections, minimizing loose conductors and arc risks. Application: Industrial switchgear installations subject to high vibration and frequent access.
Get a Quick Quote for a ABB 1SCA022720R0580
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022720R0580?
Enquire Now
FAQs
The unit uses base mounting and lug terminals, enabling secure, straightforward wiring and solid mechanical stability in panel assemblies. This configuration supports reliable connection integrity in tight control cabinets and reduces installation time.
It complies with IEC 60947-3, UL 98, and CSA C22.2 NO.4, with a CE Declaration of Conformity. Environmental declarations include EPD and REACH/ROHS documentation, ensuring regulatory compliance across global markets.
AC-23A is rated at 250 A across 380–415 V, 500 V, and 690 V. This aligns with high-demand motor and load-switching applications, providing robust performance for diverse industrial drives.
With a mechanical durability of 20,000 cycles, a front-operated mechanism, and a locking feature, the device offers reliable operation and safer maintenance. Its 3P design and 1000 V insulation support quick, safe disconnections, reducing unscheduled downtime.
Yes. Documentation includes OT200-250 data sheets, installation manuals, and mechanical drawings for OT200...OT250U30 in DWG/DXF/STP formats, which streamline engineering reviews and installation planning.
