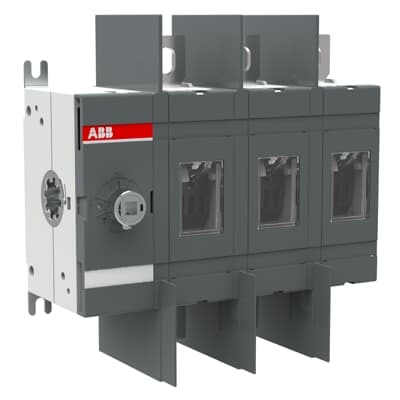

ABB 1SCA022723R0220 SWITCH-DISCONNECTOR - UL/cUL Listed
Part Number: 1SCA022723R0220
Quick Summary
ABB 1SCA022723R0220 SWITCH-DISCONNECTOR is a 3-pole switch used for safe isolation in motor control panels. Maintenance teams struggle with lengthy isolation and unplanned outages; front-operated design minimizes access time and improves safety. Key certifications such as CE, UL/cUL, and IEC 60947-3 compatibility support compliant, global deployment. A compact base-mount solution with lug terminals aligns with existing switchgear, helping procurement and installation teams reduce lead times. The unit supports panel builders requiring non-fusible isolation and offers straightforward maintenance with widely available spare parts. Its 200 A rating at 380-690 V AC matches common industrial motors and feeders, delivering reliable performance across process industries.
Product Information
Extended Description
1SCA022723R0220 ABB: 3-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200U03, dwg-file | OT200U03, dxf-file | OT200U03.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
169.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.6 kg | 3.6 lb
Package Level 1 EAN
6417019232645
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Tightening Torque UL/CSA
275 in·lb
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601717
Three-pole, front-operated isolation provides quick, safe shutdown at the panel face. This reduces risk during maintenance and shortens downtime, directly boosting line productivity in manufacturing environments. Base mounting with lug terminals simplifies wiring and supports straightforward installation within existing enclosures, cutting on-site labor and changeover time. The device delivers up to 200 A at up to 1000 V, with a Rated Short-Circuit Making Capacity (Icm) of 30 kA and a short-time withstand (Icw) of 8 kA for 1 s, enabling reliable performance in demanding power circuits. Compliance with IEC 60947-3, UL 98, and CSA C22.2 NO.4 provides regulatory assurance for global panel builders, OEMs, and service providers. Front IP00 protection, robust mechanical durability (20000 cycles), and a 6.5 W per-pole loss support energy-efficient, low-maintenance operation. Compatibility with OT8 family assets and standard bolt-kit further reduces procurement risk and accelerates installation.
