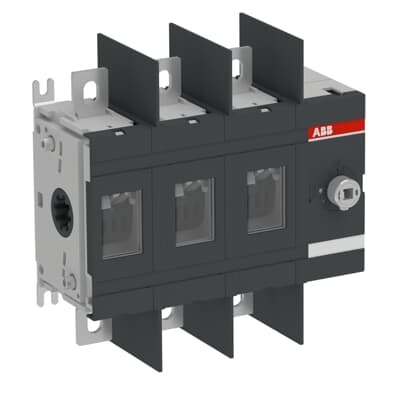

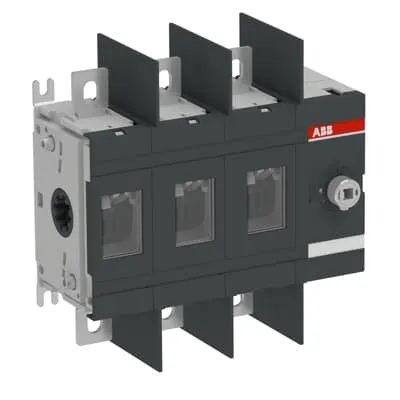

ABB 1SCA022723R0570 Switch-Disconnect - IEC 60947-3
Part Number: 1SCA022723R0570
Quick Summary
ABB 1SCA022723R0570 is a 3-pole front-operated switch-disconnect designed for safe isolation in electrical distribution panels and control cabinets. This device addresses the common challenge of reliable de-energization in live systems, enabling quick service access without compromising safety. It complies with IEC 60947-3, UL 98, and CSA C22.2 NO.4, ensuring broad regulatory acceptance across regions. The product integrates with ABB EcoSolutions for lifecycle support and offers environmental documentation such as CMRT, RoHS, and EPD to support sustainability reporting. In practice, this switch-disconnector supports efficient installation on base mounting with lug terminals, and its modular design helps reduce downtime and maintenance costs for industrial applications.
Product Information
Extended Description
1SCA022723R0570 ABB: Handle and shaft must be ordered separatly.
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250U30, dwg-file | OT200...OT250U30, dxf-file | OT200-250U30.stp | OT200...OT250U30, igs-file
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
169.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.3 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.5 kg | 3.2 lb
Package Level 1 EAN
6417019232676
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature high current rating and voltage. The 3P 200 A rating with 1000 V insulation enables safe isolation for demanding motor and power circuits, reducing arc flash risk and enabling compliant servicing. This translates to shorter maintenance windows and improved uptime in manufacturing lines and packaging equipment. Feature front operated and base mounting. With a front operated mechanism and base mounting, installation becomes faster and wiring more accessible, cutting assembly time and simplifying field service. This design improves enclosure density in control panels and reduces tool requirements for commissioning. Feature robust durability and torque specification. Mechanical durability of 20000 operations and a tightening torque of 22.6 N m ensure dependable long term performance in harsh environments, lowering replacement costs and warranty claims in conveyors and process lines. Feature comprehensive compliance and documentation. IEC 60947-3 UL 98 CSA ensures regulatory acceptance; CMRT, RoHS, EPD, and DoC expedite supplier qualification and sustainability reporting. Feature compatibility and flexibility. Handle and shaft are ordered separately, offering installation flexibility for varied panel layouts; lug terminals and 3P configuration align with standard ABB accessories for quick retrofits.
