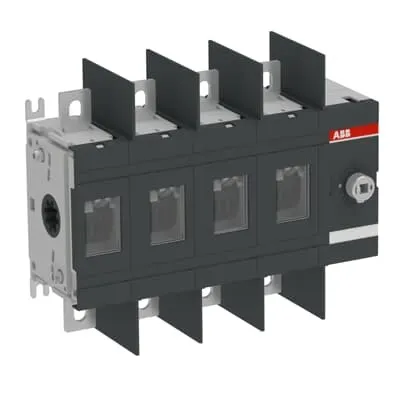

ABB 1SCA022723R0650 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022723R0650
Quick Summary
ABB 1SCA022723R0650 switch-disconnectors provide safe isolation for four-pole main circuits in industrial automation. Engineers often struggle with limited mounting space, front-operation access, and long-term reliability in control panels. These devices meet IEC 60947-3, UL 98, CSA C22.2 NO.4, and CE declarations, with RoHS and REACH environmental compliance for responsible manufacturing. By combining robust electrical protection with straightforward installation and serviceability, they deliver efficient panel design, regulatory peace of mind, and reduced downtime for OEMs and end-users alike.
Product Information
Extended Description
1SCA022723R0650 ABB: Handle and shaft must be ordered separatly.
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250U40, dwg-file | OT200...OT250U40, dxf-file | OT200-250U40.stp | OT200-250U40.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
212.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
2 kg | 4.5 lb
Package Level 1 EAN
6417019232683
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 40 (Right Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The four-pole configuration and 200 A rating enable reliable, simultaneous disconnection of all poles, reducing switching errors and improving safety in main circuits. This translates to measurable downtime reduction and enhanced protection in feeders for packaging lines and automated machinery. Application: use in control panels and switchgear where compact, high-current isolation is required. Feature → Business Impact → Application: Base mounting with lug terminals simplifies integration and wiring, lowering field labor and torque-related installation issues. Application: ideal for OEM panel builders seeking faster assembly and compliant terminations in tightly spaced enclosures. Feature → Business Impact → Application: Front-operated mechanism and right-side actuation provide easy access for maintenance crews, minimizing panel opening time and exposure during isolation. Application: suitable for scheduled maintenance and quick fault isolation in production lines. Feature → Business Impact → Application: Environmental and compliance certifications (RoHS, REACH, CMRT, EPD) streamline procurement and reduce compliance risk in regulated industries. Application: preferred by manufacturers with sustainability targets and strict supplier requirements. Feature → Business Impact → Application: Mechanical durability of 20000 cycles and clear disassembly instructions support long service life and predictable maintenance. Application: essential for uptime in continuous-process environments and for cost-avoidance in replacement cycles. Feature → Business Impact → Application: Handle and shaft separation requirement provides flexibility in custom installations and serviceability. Application: beneficial for modular panels and upgrade programs where tailored assemblies are common.
Get a Quick Quote for a ABB 1SCA022723R0650
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022723R0650?
Enquire Now
FAQs
This device uses base mounting and lug terminals for secure, straightforward panel integration. The tightening torque requirement is 22.6 N·m per IEC 60947-1, ensuring reliable terminations. Note that the product is shipped without a handle or shaft, which must be ordered separately to complete installation in space-constrained control panels.
The unit supports a rated operational current of 250 A across 380–690 V, with a rated impulse withstand voltage of 12 kV and a main circuit insulation voltage of 1000 V. Short-circuit making capacity is 30 kA at 690 V, and it provides 1 s withstand current of 8 kA, suitable for demanding industrial switching duties.
Compliance includes IEC 60947-3, UL 98, and CSA C22.2 NO.4, along with a CE declaration of conformity. RoHS and REACH environmental declarations, CMRT, and EPD listings support regulatory clearance and sustainability reporting for regulated industries and global supply chains.
With a mechanical durability rating of 20,000 cycles and explicit end-of-life disassembly instructions, the device reduces maintenance frequency and replacement costs. Detailed mechanical drawings (dwg/dxf/stp/igs) support quick part replacement and serviceability, lowering downtime during routine maintenance and upgrades.
Yes. Its 4P configuration, base mounting, front operation, and 200 A rating at 380–690 V make it ideal for main-distribution isolation in industrial automation. The unit complies with essential standards, supports reliable terminations with lug terminals, and is designed for predictable performance in demanding manufacturing environments.
