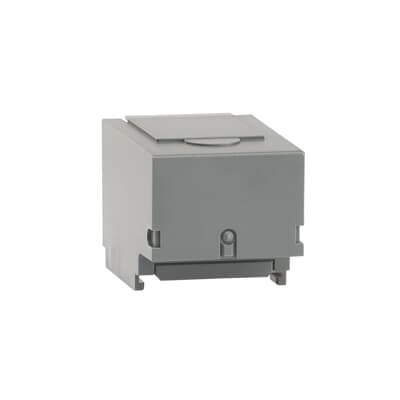

ABB 1SCA022727R4940 OSS250G1S Terminal Shroud - RoHS
Part Number: 1SCA022727R4940
Quick Summary
OSS250G1S TERMINAL SHROUD provides safe, organized protection for ABB low-voltage switchgear in control panels. When retrofitting or upgrading, mismatched components can leave wiring exposed or compromise safety; this shroud helps maintain clearances and minimizes risk. It carries RoHS compliance under EU 2011/65/EU with Amendment 2015/863, along with Reach declarations and CMRT for responsible sourcing. The compact 53 mm width and snap-on mounting simplify installation in tight panel environments while maintaining compatibility with ABB OS200–OS250 series devices. This supports faster commissioning, reduced wiring errors, and improved traceability in regulated facilities while aligning with broader electrical protection and circuit control strategies.
Product Information
Extended Description
1SCA022727R4940 ABB: OSS250G1S TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS200-250
Mechanical Drawings
OSS250_1S.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
53 mm
Product Net Height
51.8 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.004 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.004 kg
Package Level 1 EAN
6417019235646
Mounting Type
Snap-on mounting
Special Functions
S
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3661278
E-Number (Sweden)
3171840
Feature: Snap-on mounting enables tool-free, rapid installation with precise alignment → Business Impact: Reduces commissioning time and human error while improving panel reliability → Application: Suitable for ABB OS switches and fusegear in new builds or retrofits. Feature: Compact 53 mm width and 74.7 mm depth fit standard control-panel cutouts → Business Impact: Saves space and enables denser panel layouts, lowering enclosure footprint costs → Application: Industrial automation rack and cabinet installations. Feature: Material compliance including CMRT, Reach Declaration, and RoHS Status → Business Impact: Eases regulatory approvals and supply-chain transparency, reducing risk in regulated industries → Application: Automotive, energy, and process industries with strict sourcing requirements. Feature: UL Certificate field indicates No certification needed → Business Impact: Frees resources from unnecessary UL validation while maintaining safety expectations in standard environments → Application: Non-UL-critical control panels in European and global facilities. Feature: Documentation and data variety (Data Sheet, Mechanical Drawings, Instructions) supports fast engineering → Business Impact: Accelerates design reviews and reduces rework in projects → Application: Engineering teams targeting OS200–OS250 configurations.
Get a Quick Quote for a ABB 1SCA022727R4940
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022727R4940?
Enquire Now
FAQs
Installation is straightforward with snap-on mounting. Align the shroud to the OS200–OS250 series device, press firmly until it seats, and verify there is no interference with conductors. No specialized tools are required, and the 53 mm width ensures it fits typical panel cutouts. Always follow current drawing references (OSS250_1S.stp) for exact assembly guidance.
This shroud includes RoHS compliance under EU 2011/65/EU and its Amendment 2015/863, along with Reach Declaration and CMRT for responsible sourcing. These declarations simplify regulatory approvals, support sustainability reporting, and help procurement meet supplier due-diligence requirements in regulated industries.
Yes. The OSS250G1S is designed for snap-on mounting on ABB OS200–OS250 series devices and related low-voltage switchgear. Its dimensions are tailored for compact control-panel assemblies, ensuring reliable fitment without redesigning existing panel infrastructure.
The shroud reduces exposed conductors, improves wiring clearance, and supports safer maintenance by containing live components within a protective enclosure. Its compact form enables denser panel layouts, while compatibility with standard OS ranges minimizes wiring errors and accelerates commissioning.
ROI stems from faster installation, fewer wiring mistakes, and improved regulatory compliance. By shortening commissioning times and reducing rework, teams experience lower labor costs and lower risk of faults due to exposed conductors, translating into shorter project cycles and smoother audits.
