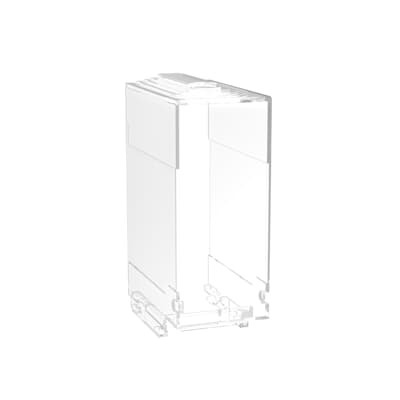

ABB 1SCA022731R8740 Terminal Shroud - RoHS Compliant
Part Number: 1SCA022731R8740
Quick Summary
ABB 1SCA022731R8740 Terminal Shroud is a compact accessory that protects terminal connections in low‑voltage switchgear and motor control panels. Its robust design reduces wiring misalignment and accidental contact during panel assembly, saving installation time and improving field reliability. The component carries RoHS compliance, a Reach Declaration, and CMRT (Conflict Minerals Reporting Template) to support regulatory and sustainability requirements. These certifications help ensure safe, compliant operation in industries such as machinery, energy, and manufacturing environments. Designed for straightforward mounting with ABB OS and OSM families, it delivers compatibility, ease of maintenance, and a lower total cost of ownership throughout the equipment lifecycle.
Product Information
Extended Description
1SCA022731R8740 ABB: OSS200T1L/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
No Instructions and Manuals needed
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
43.4 mm
Product Net Height
114.8 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.008 kg
Package Level 1 Units
bag 3 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.008 kg
Package Level 1 EAN
6417019237077
Special Functions
L/3
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature → The shroud’s compact footprint and precise dimensions (43.4 mm W x 114.8 mm H x 74.7 mm D) conserve panel space and streamline wiring routes, reducing install time. Business Impact → This translates into faster commissioning and lower labor costs on large panel builds. Application → Suitable for ABB motor control centers and power distribution panels where space is at a premium. Feature → CMRT, Reach Declaration, and RoHS status provide regulatory certainty and supply-chain transparency. Business Impact → You gain easier compliance reporting and reduced audit overhead, helping meet procurement standards. Application → Ideal for machinery, energy, and automation projects with strict material requirements. Feature → Compatibility with ABB OS/OSM switches and fusegear enables plug-and-play integration. Business Impact → Simplifies BOM management and accelerates stocking, with fewer mismatch parts. Application → Recommended for new builds and retrofits in standard ABB control panels. Feature → L/3 terminal shroud technique enhances safety during installation and maintenance. Business Impact → Reduces risk of accidental contact and short circuits, improving worker safety and uptime. Application → Useful during panel assembly, service, and routine checks across industrial environments. Feature → Packaging at Level 1 (bag of 3) and small carton footprint support efficient logistics. Business Impact → Improves warehouse handling, reduces stockouts, and lowers freight cost per unit. Application → Fits procurement workflows in electronics components and industrial automation supply chains.
Get a Quick Quote for a ABB 1SCA022731R8740
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022731R8740?
Enquire Now
FAQs
The shroud is designed for straightforward mounting with ABB OS and OSM switchgear families, providing a secure barrier around terminals during assembly and maintenance. Its 43.4 mm width and 114.8 mm height fit standard control-panel footprints, helping to preserve space while ensuring reliable protection.
Key dimensions are 43.4 mm wide, 114.8 mm high, and 74.7 mm deep, with a net weight of 0.008 kg. These compact specs support space-saving installations and easy handling during kit assembly and field service.
The part carries RoHS status per EU Directive 2011/65/EU with Amendment 2015/863, a Reach Declaration, and CMRT. These certifications support regulatory compliance, responsible sourcing, and improved supply-chain transparency in industrial automation projects.
Minimum order quantity is 1 piece. Packaging information indicates Level 1 packaging as a bag containing 3 pieces, with EAN 6417019237077 for procurement and stock-keeping efficiency.
It protects terminal connections, reduces risk of loose terminals and accidental contact, improves wiring safety, and supports easier maintenance. These factors contribute to faster commissioning, lower rework, and overall lower lifecycle costs in automation panels.
