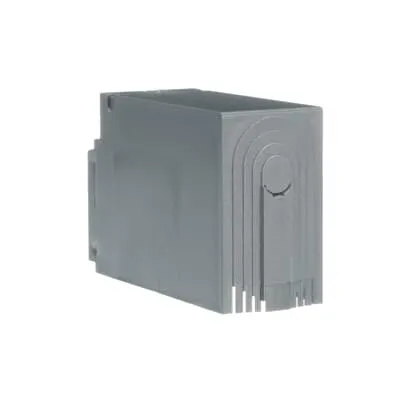

ABB 1SCA022731R8910 OSS200G1L/3 Terminal Shroud - RoHS
Part Number: 1SCA022731R8910
Quick Summary
ABB 1SCA022731R8910 terminal shroud for OSS200G1L/3 enables safe, organized terminal wiring in control panels. This accessory addresses cluttered enclosures and stray conductors that slow maintenance and raise risk. The design is RoHS compliant with a REACH declaration and CMRT reporting, helping you meet regulatory obligations across global plants. By using snap-on mounting, installation time is reduced and field service can be performed without dismantling the entire assembly. This part is lightweight and compact, yet robust enough for industrial environments, supporting reliable operations in low-voltage switchgear. For procurement teams, it pairs well with ABB OS/OS subassemblies and OS fuses, offering predictable compatibility and strong total cost of ownership.
Product Information
Extended Description
1SCA022731R8910 ABB: OSS200G1L/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311012M0008
Mechanical Drawings
OSS200G1L.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
43.4 mm
Product Net Height
114.8 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.09 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
105 mm
Package Level 1 Depth / Length
165 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
6417019237091
Mounting Type
Snap-on mounting
Special Functions
L/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Norway)
1682621
Feature: Snap-on mounting design enables rapid installation and minimal panel downtime. Business Impact: Reduces maintenance window and accelerates start-up, lowering labor costs. Application: Ideal for new installations and retrofit projects in ABB low-voltage switchgear. Feature: Compact footprint with a product net width of 43.4 mm, height 114.8 mm, and depth 74.7 mm. Business Impact: Saves panel space, improves wire routing, and supports dense control cabinets. Application: Suitable for tight enclosures and DIN rail installations in automation panels. Feature: Material compliance including CMRT, REACH Declaration, and RoHS Status. Business Impact: Eases regulatory audits, minimizes supply-chain risk, and supports global manufacturing. Application: Critical for multi-region deployments and supplier qualification. Feature: RoHS information and EU directive alignment. Business Impact: Ensures compliance across electronics supply chains, reducing potential rework and penalties. Application: Useful for procurement and compliance teams overseeing European and global plants. Feature: Mounting type and special function L/3 indicate compatibility with OSS200G1L/3 assemblies. Business Impact: Streamlines integration and reduces configuration errors. Application: Direct fit for ABB OS/OS1 family components in control panels. Feature: Lightweight design at 0.09 kg with standard packaging (box 1 piece) and clear dimensional data. Business Impact: Lower shipping and handling costs, easier inventory management. Application: Fits standard distribution channels and improves MRO planning for maintenance teams.
Get a Quick Quote for a ABB 1SCA022731R8910
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022731R8910?
Enquire Now
FAQs
The OSS200G1L/3 shroud uses a snap-on mounting system designed for quick, vibration-resistant fitment on compatible ABB OS/OS1 assemblies. Align with the existing terminal block and press firmly until it seats. Refer to the 1SCC311012M0008 manual for step-by-step instructions and torque recommendations to ensure secure termination.
The shroud features a width of 43.4 mm, height of 114.8 mm, and depth of 74.7 mm, with a product net weight of 0.09 kg. These measurements support dense mounting in control panels and ease of handling during installation.
Yes. The product carries RoHS status in line with EU Directive 2011/65/EU and its amendment, and it includes a REACH Declaration for AC switches and fusegear, helping you meet regional regulatory requirements and supplier compliance audits.
Yes. The shroud is designed as an accessory for ABB OS and OS1 family components, enabling secure, integrated wiring protection and streamlined field assembly in low-voltage switchgear environments.
Package Level 1 units are boxed as one piece per unit with dimensions 105 x 165 x 110 mm and a gross weight of 0.1 kg. Origin is Finland (FI), with a packaged EAN of 6417019237091, supporting straightforward international logistics and supplier qualification.
