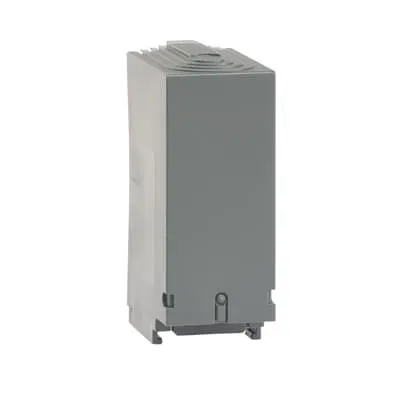

ABB 1SCA022731R9040 Terminal Shroud - Snap-on L/4
Part Number: 1SCA022731R9040
Quick Summary
ABB 1SCA022731R9040 Terminal Shroud is a compact accessory that protects and organizes terminals in ABB low-voltage control panels. In busy assemblies, cramped layouts and loose wiring can lead to contact issues and downtime. This shroud supports RoHS and CMRT declarations, along with a Reach declaration, helping meet EU regulatory demands and supplier audits. Its Snap-on mounting simplifies installation, while the L/4 function suits specific terminal configurations and space-constrained panels. Together, you gain faster assembly, improved safety, and predictable spare-part compatibility for procurement and maintenance planning. Manufacturers benefit from consistent documentation and the ability to pass supplier audits more efficiently. The product ships with standard packaging and is compatible with common control-panel layouts.
Product Information
Extended Description
1SCA022731R9040 ABB: OSS200G1L/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311012M0008
Mechanical Drawings
OSS200G1L.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
43.4 mm
Product Net Height
114.8 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.12 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
105 mm
Package Level 1 Depth / Length
220 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.12 kg
Package Level 1 EAN
6417019237107
Mounting Type
Snap-on mounting
Special Functions
L/4
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Norway)
1682623
Feature → Business Impact → Application: Snap-on mounting enables tool-free, rapid installation, reducing commissioning time and minimizing panel downtime; ideal for ABB control panels and field replacements in tight spaces. Feature → Business Impact → Application: L/4 compatibility supports quarter-configuration terminals, improving fit and circuit integrity in compact switchgear assemblies. Feature → Business Impact → Application: CMRT, Reach, and RoHS compliance streamline regulatory audits and supply-chain due diligence across EU and global manufacturing sites; essential for electronics components in certified environments. Feature → Business Impact → Application: 43.4 mm width, 114.8 mm height, and 74.7 mm depth deliver a compact footprint without compromising protection; perfect for small panel enclosures and ergonomic wire routing. Feature → Business Impact → Application: 0.12 kg weight and durable construction reduce handling effort in assembly lines, logistics, and service visits, supporting lean procurement. Feature → Business Impact → Application: Temperature and environment resilience implied by rugged industrial design supports long service life in motor starter panels and control cabinets.
Get a Quick Quote for a ABB 1SCA022731R9040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022731R9040?
Enquire Now
FAQs
The shroud uses snap-on mounting, allowing fast, tool-free installation over compatible terminal blocks. This reduces field setup time, minimizes misalignment risk, and preserves a clean panel front. The design maintains secure contact protection after service and supports straightforward maintenance in busy control environments.
Yes. It is designed as a protective terminal shroud that aligns with ABB low-voltage accessories. Its dimensions (43.4 mm width, 74.7 mm depth, 114.8 mm height) and snap-on mounting ensure a mechanical fit with OS/OSM-related panels and assist proper clearance and routing in controlled environments.
The product provides CMRT for conflict minerals, a Reach Declaration, and RoHS information with EU RoHS compliance status. It also carries a UL note indicating no separate certification is required, and WEEE classification, ETIM, UNSPSC, and other standard industry classifications support audits and cataloging.
Product net width is 43.4 mm, net height 114.8 mm, and net depth 74.7 mm, with a net weight of 0.12 kg. Packaging is listed as 105 mm width, 220 mm depth, 110 mm height, and a gross weight of 0.12 kg. The EAN for packaging is 6417019237107.
This shroud protects terminals, reducing the risk of accidental contact and wiring damage, which improves safety and reliability. It speeds assembly with snap-on mounting, aids regulatory compliance with CMRT, Reach, and RoHS documentation, simplifies spares management, and supports predictable maintenance timelines and ROI for panel-build projects.
