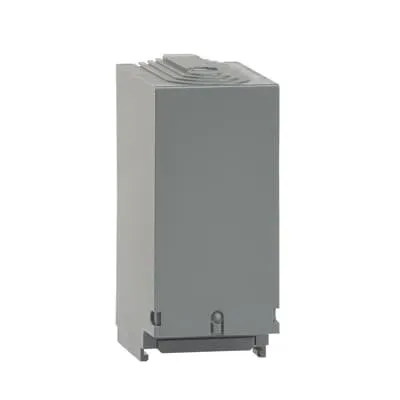

ABB 1SCA022731R9390 Terminal Shroud - CMRT/Reach
Part Number: 1SCA022731R9390
Quick Summary
ABB 1SCA022731R9390 Terminal Shroud is a protective accessory that secures and insulates terminal connections in low-voltage switchgear applications. Project teams often struggle with balancing reliable enclosure protection against tight project timelines and complex regulatory paperwork. It carries CMRT for conflict-mineral reporting, a Reach Declaration for chemical safety, and RoHS status aligned with EU directives, supporting traceability and compliance. These certifications streamline supplier audits and help procurement meet regulatory requirements while maintaining supply chain confidence. By pairing a compact form factor with a quick snap-on mounting, this shroud reduces installation time and simplifies spare-parts inventories, delivering measurable efficiency gains for electrical contractors and OEMs in automation environments.
Product Information
Extended Description
1SCA022731R9390 ABB: OSS250G1L/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311012M0008
Mechanical Drawings
OSS250G1L.igs
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
53 mm
Product Net Height
121.6 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.09 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
105 mm
Package Level 1 Depth / Length
165 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.16 kg
Package Level 1 EAN
6417019237138
Mounting Type
Snap-on mounting
Special Functions
L/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3642477
E-Number (Norway)
1682625
Feature snap-on mounting → Business Impact faster installation, reduced labor time, and less field risk during panel assembly; Application used in control panels and motor control centers for ABB and compatible low-voltage switchgear. Feature compact dimensions and light weight → Business Impact easier routing in dense enclosures and safer handling on site; Application ideal for compact panel spaces without compromising protection. Feature CMRT, Reach Declaration, and RoHS Status → Business Impact simplified compliance and clearer supply-chain transparency; Application supports audits and regulatory alignment across automotive, manufacturing, and process industries. Feature 53 mm width, 121.6 mm height, 74.7 mm depth, 0.09 kg weight → Business Impact space efficiency and predictable procurement planning; Application fits standard terminal layouts in ABB OS and OSM style assemblies. Feature Finland origin → Business Impact trusted supply chain and consistent part availability; Application aids procurement with regional sourcing expectations. Feature UL certificate note and ETIM 8/9 classification → Business Impact clear regulatory posture and compatibility guidance; Application reduces decision risk for engineering teams evaluating spare part catalogs and catalog accuracy.
Get a Quick Quote for a ABB 1SCA022731R9390
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022731R9390?
Enquire Now
FAQs
Yes. The OSS250G1L/3 Terminal Shroud uses a snap-on mounting design and a footprint of 53 mm by 121.6 mm by 74.7 mm, aligning with common ABB OS and OSM style terminal layouts. When installing, ensure clearance for quick engagement and verify that adjacent components do not obstruct the snap-on latch for secure fitment.
The product net width is 53 mm, height 121.6 mm, and depth 74.7 mm, with a net weight of 0.09 kg. These compact dimensions support dense panel layouts and lightweight handling during field installs, reducing enclosure crowding and easing cable routing around the shroud.
Yes. Designed for low-voltage switchgear, the shroud provides robust terminal protection, improves operator safety, and facilitates maintenance. Its snap-on mounting accelerates commissioning in automation panels, and its compliant material profile helps minimize regulatory risk in process and factory automation settings.
The accessory carries CMRT for conflict minerals, a Reach Declaration for chemical safety, and RoHS status aligned with EU directives. UL certification is not required for this component, and ETIM classifications (EC002498 for low-voltage switch accessories) aid catalog and procurement systems.
The shroud reduces install time and potential terminal exposure risks, lowering field labor costs and post-install rework. Clear compliance documentation supports audits, while compact design minimizes spare-parts complexity. Overall, expect faster assembly, fewer terminal faults, and improved reliability in automation panel builds.
