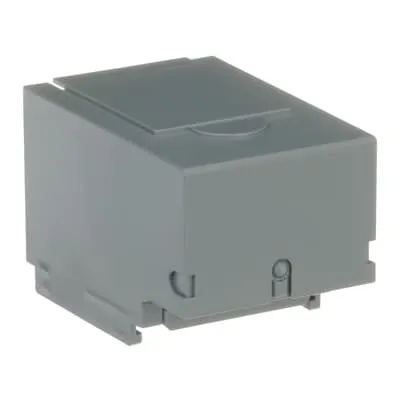

ABB 1SCA022731R9550 OSS250G1S/3 TERMINAL SHROUD - S/3
Part Number: 1SCA022731R9550
Quick Summary
ABB 1SCA022731R9550 OSS250G1S/3 Terminal Shroud protects exposed terminals in low-voltage switchgear used in control panels and motor drives. Engineers often face wiring exposure and accidental contact; this snap-on shroud reduces risk while speeding assembly. It aligns with CMRT, REACH, and RoHS declarations, and supports EU RoHS compliance across electronics in the OS/OSM family. Compact 53 mm width and snap-on mounting simplify retrofit projects and reduce installation time, delivering measurable efficiency gains. In practice, safety, traceability, and cost control come together when teams specify ABB accessory solutions.
Product Information
Extended Description
1SCA022731R9550 ABB: OSS250G1S/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311012M0008
Mechanical Drawings
OSS250_1S.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
53 mm
Product Net Height
51.8 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.06 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
105 mm
Package Level 1 Depth / Length
165 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.06 kg
Package Level 1 EAN
6417019237152
Mounting Type
Snap-on mounting
Special Functions
S/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Sweden)
3171842
Feature: CMRT, REACH, and RoHS declarations are embedded with this accessory. Business impact: you gain regulatory visibility, simplify supplier audits, and minimize risk of non-compliance across global supply chains. The combination of reporting templates, declarations, and verifications reduces procurement delays and incident costs. Application: ideal for European OEMs and plant engineers sourcing OS/OSM accessories for low-voltage switchgear, ensuring traceability from component to panel and vendor to end device. Feature: Snap-on mounting provides a fast, tool-free installation. Business impact: cuts labor time by enabling rapid retrofits and straightforward field replacements, lowering project durations and on-site downtime. Application: suitable for retrofit projects and new installations in control cabinets where space is constrained and access is limited. Feature: Compact form factor with 53 mm width and 74.7 mm depth. Business impact: enables denser panel layouts, better enclosure utilization, and predictable clearance to protect wiring harnesses. Application: ideal for compact ABB OS/OSM switchgear configurations in confined electrical rooms. Feature: Comprehensive documentation and downloadable resources. Business impact: accelerates engineering approval and procurement cycles by providing datasheets, mechanical drawings, and manuals in one place. Application: supports rigorous design reviews and compliant installation workflows. Feature: Clear sourcing data including country of origin and packaging. Business impact: improves supply chain traceability and reduces customs-led delays with accurate EAN and tariff information. Application: useful for international projects requiring BOM clarity and risk mitigation in global procurement.
Get a Quick Quote for a ABB 1SCA022731R9550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022731R9550?
Enquire Now
FAQs
The OSS250G1S/3 Terminal Shroud is designed as a snap-on mounting accessory for ABB OS and OSM low-voltage switchgear. Its compact footprint (53 mm width) and surface-level fit provide straightforward installation, reducing modification needs and enabling reliable terminal protection without altering existing busbar layouts. Documentation and mechanical drawings further support seamless integration into BOMs and maintenance plans.
It includes CMRT, REACH declarations, and RoHS information, aligning with EU 2011/65/EU and 2015/863. These declarations support regulatory compliance, supplier transparency, and audit readiness across global operations, which is crucial for panel assemblies in regulated industries and multinational deployments.
Snap-on mounting enables tool-free or minimal-tools installation, which shortens commissioning time and reduces field labor. It also simplifies retrofits by allowing quick replacement or upgrade of terminal protection components without disassembling adjacent hardware, improving overall project timelines and uptime in industrial environments.
Yes. The accessory comes with CMRT, Reach, and RoHS declarations, and it carries clear packaging and origin data (Finland FI) along with standard industrial identifiers like tariff code 85389099 and EAN 6417019237152. This information supports compliant procurement, traceability, and smooth customs processing for global deployments.
The shroud has a product net width of 53 mm, height of 51.8 mm, and depth of 74.7 mm, with a net weight of 0.06 kg. Packaging for level 1 is a single box (105 mm x 165 mm x 110 mm) with a gross weight of 0.06 kg and EAN 6417019237152. Minimum order quantity is 1 piece, aiding straightforward planning and stocking.
