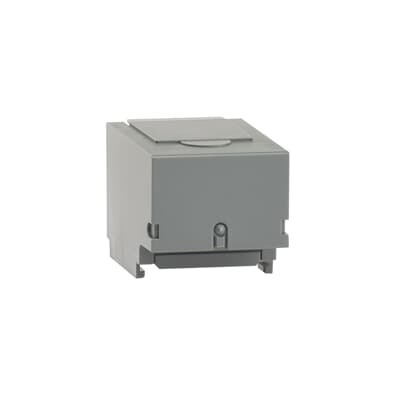

ABB 1SCA022731R9630 OSS250G1S/4 Terminal Shroud - RoHS/CMRT
Part Number: 1SCA022731R9630
Quick Summary
ABB 1SCA022731R9630 terminal shroud protects live connections in ABB low-voltage switchgear. In crowded panels, it minimizes risk of accidental contact and speeds up maintenance and assembly. The part complies with CMRT conflict minerals reporting, RoHS under EU directives, and Reach declarations for AC switches and fusegear. With snap-on mounting, it installs quickly and stays secure, streamlining procurement and installations across OS and fusegear systems.
Product Information
Extended Description
1SCA022731R9630 ABB: OSS250G1S/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311012M0008
Mechanical Drawings
OSS250_1S.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
53 mm
Product Net Height
51.8 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.08 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
105 mm
Package Level 1 Depth / Length
220 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.08 kg
Package Level 1 EAN
6417019237169
Mounting Type
Snap-on mounting
Special Functions
S/4
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Norway)
1682626
E-Number (Sweden)
3171844
FeatureCompliance with CMRT, RoHS, and Reach: This material and declaration package reduces regulatory risk and supply-chain uncertainty, ensuring a cleaner audit trail for European builds and regulated facilities. Business impact is lower compliance costs and faster supplier qualification for ABB OS gear. Application: suitable for OS switches and fusegear assemblies in automation panels. FeatureSnap-on mounting: The quick-clip design eliminates screws and aligned fittings, cutting installation time by a measurable margin and improving field reliability. Application: control cabinets with limited access where fast upgrades matter.FeatureCompact footprint and light weight: With 53 mm width, 51.8 mm height, and 74.7 mm depth, and a 0.08 kg mass, this shroud fits tight panel envelopes while reducing overall panel weight. Application: space-constrained industrial installations and modular assemblies.FeatureStandard packaging and MOQ: Minimum order quantity is one piece with box-level packaging, simplifying stock control and reorders. This supports just-in-time procurement for project-based builds and maintenance contracts. Application: preferred for OEMs and distributors stocking ABB OS accessories.FeatureOS OS gear compatibility and certifications: Designed to accompany ABB OS and fusegear systems; ETIM 8 EC002498 classification reinforces catalog accuracy and digital data integration. Application: seamless CAD catalog integration and procurement alignment in modern industrial environments.
Get a Quick Quote for a ABB 1SCA022731R9630
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022731R9630?
Enquire Now
FAQs
The OSS250G1S/4 shroud is designed as a snap-on mounting accessory for ABB OS and fusegear systems, including OS and OSM switches. It fits standard ABB control panels and aligns with OS1GB catalog components, enabling rapid installation without screws and reducing the risk of incorrect mounting during panel upgrades. This compatibility supports streamlined procurement and fewer field errors.
Verify the panel is de-energized and clean. Align the shroud with the mounting area on the OS or fusegear assembly, then press it into place for a secure snap-on fit. Check that the surrounding conductors are properly insulated and that the shroud fully engages the mounting clip. This simple process minimizes downtime and ensures safe access to terminals.
Yes. The product data confirms RoHS status per EU Directive 2011/65/EU and Amendment 2015/863, along with CMRT for Conflict Minerals Reporting and a Reach Declaration for AC switches and fusegear. This helps you meet regulatory requirements in EU and related markets while maintaining supply-chain transparency and audit readiness.
The shroud features a product net width of 53 mm, height of 51.8 mm, and depth of 74.7 mm, with a net weight of 0.08 kg. Packaging details include box-level packaging, with a package size reflecting 1 piece per box. These specs support tight panel layouts and easy handling during installation.
Minimum Order Quantity is 1 piece, with country of origin Finland (FI). The customs tariff number is 85389099, and the EAN for packaging is 6417019237169. This configuration simplifies procurement planning for projects, ensures consistent sourcing, and supports regional regulatory compliance.
